OCULUS Access XL E Series Instructions Installation & Operation

Extra large, ceiling-recessed electric screen

Advertisement

Quick Links

Access XL E and V
Extra large, ceiling-recessed electric screen

Overview - Components

Hoisting Bracket
Mounting Bracket
Electrical
Cutout
Tab Tensioning
"V" Dowel
Shipping Brackets Attached
to Dowel and Screen Case
(V Screens Only)
Please Note: Shipping brackets must remain
in place until product has been mounted and
connected to power
(see Sections 1 and 4 in this
.
document.)
Also, DO NOT operate screen before removing
shipping brackets from screen case.
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
PLEASE READ - Safety Information ....................................................................2
Section 2 - Hanging Screen .................................................................................3
Section 4 - Motorized Roller/Fabric Installation ..............................................4
Section 5 - Motorized Roller/Fabric Removal ...................................................4
Leveling Brackets
" V " F le x ib le V in y l
V ie w in g S u rf a c e
.......2
" E " F re e H a n g in g
V ie w in g S u rf a c e
CAUTION
before beginning installation.
(Page 2)
Section 6 - Operation............................................................................................5
Section 7 - Tab-Tension Adjustment Procedure ..............................................5
Section 8 - Limit Adjustments .............................................................................6
Section 9 - Case Length Dimensions .................................................................7
Section 10 - Case Width Dimensions .................................................................7
Section 11 - Mounting Bracket Dimensions......................................................7
INSTRUCTIONS
INSTALLATION & OPERATION
Hoisting Bracket
TOOLS REQUIRED
POWER DRILL
PENCIL
LEVEL
HARDWARE
(by others)
If you have any difficulties installing or servicing your
Access XL screen, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: AccessXL_Inst20
© 2021 All Rights Reserved
Mounting Bracket
Trim Flange
"E" Dowel
TAPE MEASURE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Access XL E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for OCULUS Access XL E Series

  • Page 1: Table Of Contents

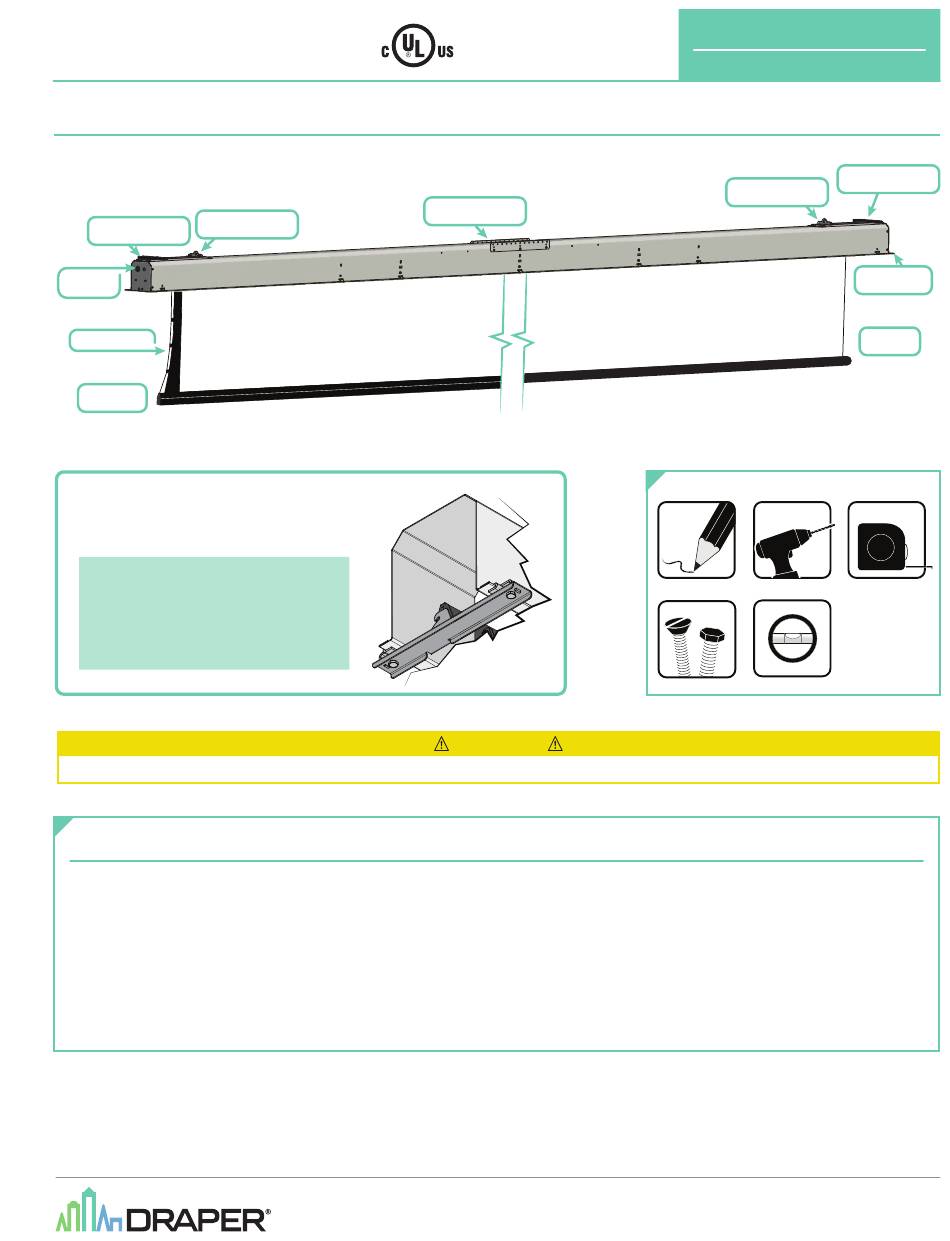

    Access XL E and V INSTRUCTIONS Extra large, ceiling-recessed electric screen INSTALLATION & OPERATION Overview - Components Mounting Bracket Hoisting Bracket Leveling Brackets Hoisting Bracket Mounting Bracket Electrical Trim Flange Cutout “ E ” F re e H a n g in g V ie w in g S u rf a c e “...
  • Page 2: Section 1 - Removing Shipping Brackets

    Access XL E and V page 2 of 8 Section 1 - Removing Shipping Brackets (Tab-Tensioned, "V" Surfaces only) CAUTION: DO NOT remove shipping brackets until product has been mounted and connected to power (see Section 4 in this document.) Also, DO NOT OPERATE SCREEN BEFORE REMOVING SHIPPING BRACKETS FROM SCREEN CASE.
  • Page 3: Section 2 - Hanging Screen

    Access XL E and V page 3 of 8 Section 2 - Hanging Screen Please Note: When locating viewing surface and checking clearance for screen operation, ensure that surface is centered in the case. 1. Engage each case mounting bracket with top of housing and tighten set screws.
  • Page 4: Section 4 - Motorized Roller/Fabric Installation

    Access XL E and V page 4 of 8 IDLER END OF CASE MOTOR END OF CASE BOTTOM VIEW BOTTOM VIEW Figure 5 SIDE VIEW SIDE VIEW Set Screws Idler End Motor End Mounting Mounting Bracket Bracket Figure 6 Figure 7 Motor End Idler End Retaining Clip...
  • Page 5: Section 6 - Operation

    Access XL E and V page 5 of 8 Section 6 - Operation CAUTION: When operating for the first time, cycle unit down and up several times to confirm satisfactory operation. Be prepared to cut POWER if necessary. • 110-120V SINGLE STATION CONTROL - 3-position UP-OFF-DOWN switch permits operation to be stopped at any point. Factory adjusted limit switches automatically stop screen when fully down or fully up.
  • Page 6: Section 8 - Limit Adjustments

    Access XL E and V page 6 of 8 Section 8 - Limit Adjustments Figure 10 Section 8.1 - Standard Motors Limit Adjustments (Fig. 10) Please Note: Screen limits are factory set for optimum DOWN Limit (I) DOWN Limit Section 8.1.1 - "Down" Limit Adjustment (requires 5/32"...
  • Page 7: Section 9 - Case Length Dimensions

    Access XL E and V page 7 of 8 8 " " (206mm) (16mm) 9 " (240mm) Standard Motor Wiring is on the Section 9 - Case Length Dimensions AUDIENCE LEFT END of Screen Case. CASE LENGTH " 18" (457mm) LEVELING BRACKET** (19mm) 1 "TYP...
  • Page 8: Section 12 - Wiring Diagrams 110-120V Motor And Quiet Motor

    Access XL E and V page 8 of 8 Section 12 - Wiring Diagrams 110-120V Motor Please Note: Do not wire motors in parallel. 110-120V Motor with Internal 110-120V MOTOR 110-120V MOTOR AND QUIET MOTOR Low-Voltage Controller STANDARD (Internal Low-Voltage Controller for ILT motor) Single Station Control Single Station Control Multiple Station Control...
