Summary of Contents for SMART-Workshop TIRE TRUER

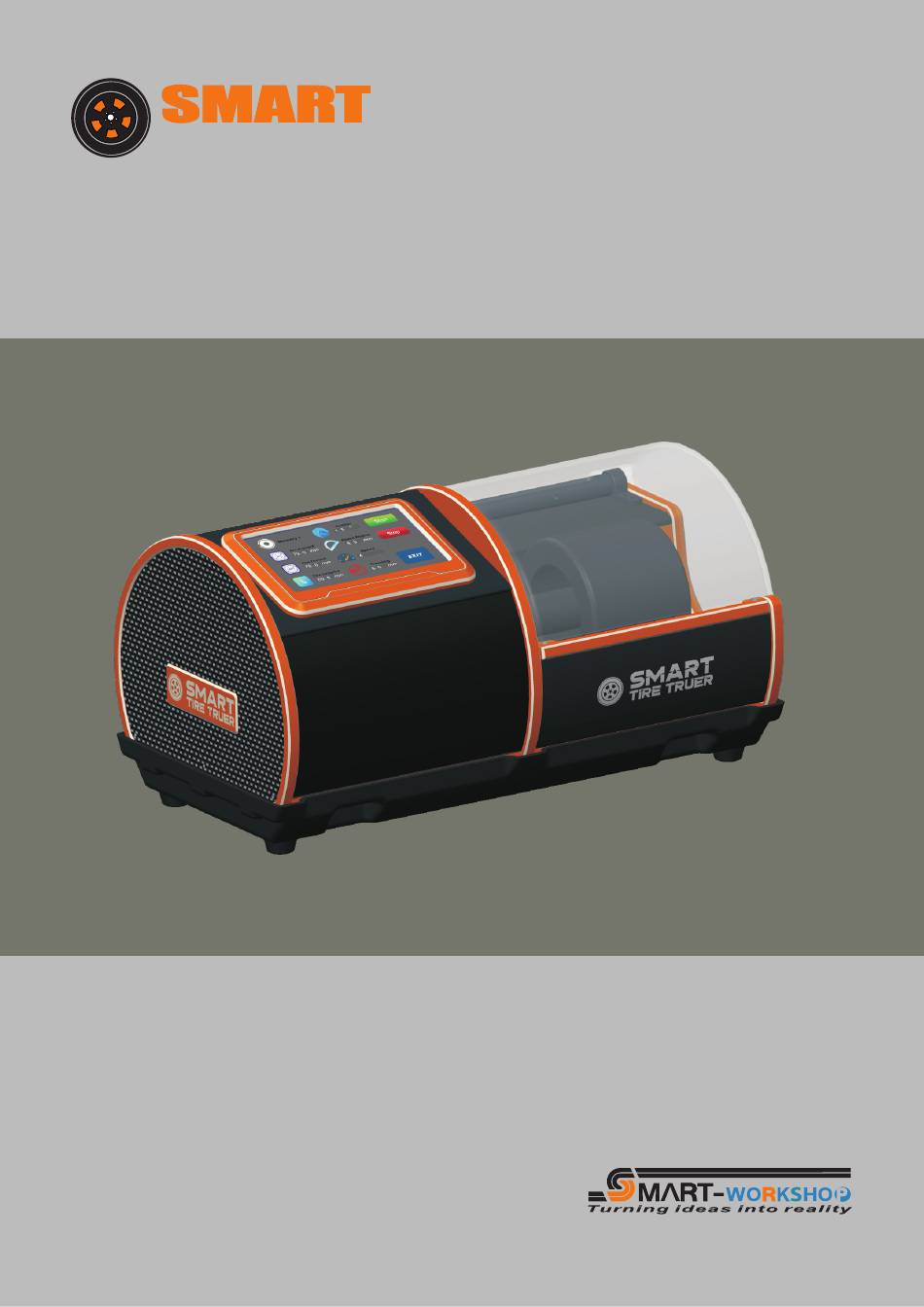

- Page 1 TIRE TRUER Operating Manual Design and Manufacturer by SMART-Workshop WWW.smart-workshop.net...
- Page 3 TIRE TRUER Tu r n i n g i d e a s i n t o r e a l i t y www.smart-workshop.net Page 1...
-
Page 4: Accessories And Spare Parts List
T I R E T R U E R TIRE TRUER . Operating Manual Laser Caution Injure hand Operating Manual Design and Manufacturer by SMART-Workshop WWW.smart-workshop.net T I R E T R U E R TIRE TRUER 3. Service Manual Laser... -
Page 5: Product Dimension
Main features 1.Operating by 4'3" color touch screen. 2.With 6 different programmable profiles. This provides the flexibility to set the truing parameters independently for each to accommodate for nearly any needed. 3.Fully automatic truing tire diameter and edging by one touch button. 4.Truing diameter (35-84mm), truing angle (0°-2.5°) and edging radius (3-10mm). - Page 6 When there is locking on X or Y axial block, please refer to the following operation guide to fix it. 1.1 Turn off the machine and remove the carbon fibre plate on the right side. Use 2.5 hex screwdriver turn the X axial (Clockwise moves to the left and counterclockwise moves to the right).
- Page 7 During Manual operation, the truing distance can’t more than 2mm in each cut, if over the limit the infrared sensors will have serious damage. 2.5mm Clean the dust on the dust cover frequently, avoid obstructing the dust cover movement. Clean the dust on the dust cover frequently 4.
-
Page 8: Equipment Guidelines
Motor Fuses(30A) CPU Board Fuses(3A) MODEL TR-323 PRODUCT ID No. ID031020190101 T I R E T R U E R Turning ideas into reality Design and Manufacturer by SMART-Workshop www.smart-workshop.org Main Power Input 12V RS 232 Main Switch Protective Cover STOP... -
Page 9: Operating Menu
. Mode 1 E. Special Mode 1 B. Mode 2 F. Special Mode 2 C. Mode 3 G. Manual Mode D. Mode 4 H. Setting Main Menu . Setting Mode 1 E. Special Mode 1 B. Setting Mode 2 F. Special Mode 2 SETTING SETTING SETTING... - Page 10 Mode1-4 Setting Instructions Mode 1 to 4 is designed for fully automatic feature, you only need to measure the original outside diameter of the tire and key in all the para- meters you prefer to use on the track. The measuring of tire original diameter accuracy required is not high +/-1mm is acceptable (Low accuracy will affect sensor detection).
- Page 11 2.1 Press “D1 icon” enters to original diameter setting menu. EXIT SETTING MODE 1 Manual Manual Key In Detection Remark: We provide two types of the key in methods to key in the tire original diameter. 1. “Manual Key In” Direct key in the number of tire original diameter from screen.
- Page 12 2 2 Press “D2 Icon” enters to truing diameter setting menu. Tire Finish Memory 1 Tire Finish 2 2.1 Press “D2 flashing cursor Icon”. 2 2.2 Key in the number of truing diameter from screen keypad and complete with “Enter Icon”. 2 2.3 Press “Exit Icon”...
- Page 13 2 6 Press “Speed 1 Icon” enters to surface truing traveling speed level setting menu. Speed 1 Speed 1 Memory 1 Speed Speed 1 2 6.1 Press “Speed 1 flashing cursor Icon”. 2 6.2 Key in the number of traveling Speed level from screen keypad and complete with “Enter Icon”.
- Page 14 SETTING SETTING SETTING MODE 1 MODE 2 MODE 3 EXIT SETTING SPECIAL SPECIAL MODE 4 MODE 1 MODE 2 2 9 Press “EXIT Icon” on the Memory Setting Menu and return to Main Menu. EXIT Special Mode1-2 Setting Instructions Special mode is designed for those tire round edge is too large, it will affect the sensors detection.
- Page 15 Camber Speed SPECIAL MODE 1 Round Edging Speed Tire Original 82.0 Tire Finish Tire Length EXIT 62.0 58.0 2.1 Press “D1 Icon” enters to original diameter setting menu. EXIT SPECIAL MODE 1 Manual Manual Key In Detection Remark: We provide two types of the key in methods to key in the tire original diameter. 1.
- Page 16 Press “Home Icon” the cutting bit block will return to home position. HOME Press “Direction Arrow Icon” move the truer cutting bit near to tire surface and complete with “Save Icon”. SAVE Press “Exit Icon” back to the Parameter Setting Menu. EXIT 2 2 Press “D2 Icon”...
- Page 17 2 5 Press “Tire Length Icon” enters to Tire Length setting menu. Tire Length Start Tire Length ORIGIN EXIT 2 5.1 Press “Home Icon” wait for the cutting bit block return to the home position. ORIGIN 2 5.2 Use “Direction Arrow Icon” to move the right sides of the cutting bits to the left edge of the tire to get the starting point and complete with “Save Icon”.
- Page 18 2 6.2 Key in the number of traveling Speed level from screen keypad and complete with “Enter Icon”. 2 6.3 Press “Exit Icon” back to the Parameter Setting Menu. 2 7 Press “Speed 2 Icon” enters round edge truing traveling speed setting menu.
- Page 19 Auto Mode Operation Instructions 1 Press “Mode Icon” enters to Operating Menu. MODE 1 Camber Memory 1 Tire Original Round Edging 82.0 Tire Finish Speed 62.0 EXIT Tire Length Traveling 2 Press “Mode Icon” which you need to use enters to Operating Menu. 3 Press “Tire Length Icon”...
- Page 20 Manual Mode Operation Instructions 1 Press “Manual Mode Icon” enters to Manual Operating Menu. MANUAL MODE 35.0 MANUAL MODE Speed HOME EXIT 2 Press “Home Icon” machine will back to home position automatically. 3 Press “Speed Icon” enters to Speed Setting Menu. Speed HOME 3 1 Key in the number of speed levels from screen keypad and complete with...
- Page 21 5 Press “Motor Icon” enters to turn on the motor confirmation page. Do you want to turn on Motor? 5 1 Press “Yes Icon” to confirm turn on the motor. 35.0 MANUAL MODE Speed HOME EXIT 6 Now you can move the cutting bit to cut the tire manually. During truing operating you can “Press Motor Off Icon”...
- Page 22 TIRE TRUER Page 20...
- Page 23 Page 21...
- Page 24 MODEL TR-323 TIRE TRUER Design and Manufacturer by SMART-Workshop www.smart-workshop net...
