Page 1: Table Of Contents

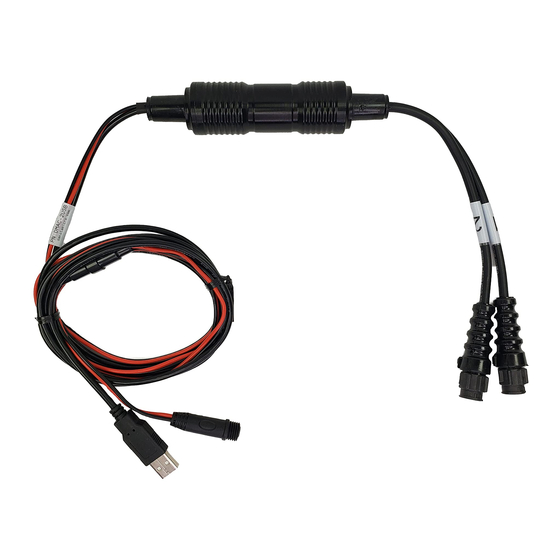

Dakota Micro, Inc. Users Manual AgCam®/EnduraCam® Simple Sight Video Adaptor Part Number(s): DMAC‐2USB Table of Contents I. Before you Install 2 II. Network Requirements 2 III. Software Installation Instructions 2‐4 IV. Software Menu Options 4 A. Toggle Camera 4 B. Take Snapshot 4 C. Image Settings 4 D. Full Screen Mode 4 E. Settings 4 F. About/Info 4 G. Quit/Close 4 ...
Page 2: Before You Install
Dakota Micro, Inc. DMAC-2USB User Manual Thank you for your purchase of the Dakota Micro "Simple Sight" USB adapter interface. The combination of this adaptor and associated software will allow you to view and stream a video feed from any combination of 2 cameras, or two wireless receivers. As of the release date of this software version there is no record feature, and depending upon demand may be available with a future update. BEFORE YOU INSTALL Before you install your software there are a few things you should do to prepare. Doing so will help to avoid any trouble you could encounter due to out‐of‐date drivers or security updates. Please take a few moments to perform the following: A. Make sure you have at least the minimum hardware requirements.  Desktop or Laptop with available USB 2.0 port or greater.  Windows OS, XP, Vista, Windows 7, 8 or 10.  1GB ram installed.  HDD space of at least 10MB.  CPU 2 GHz or better may work on slower computer but you may need to select a lower resolution camera image for best results.  CD drive for install. B. Run Windows update or Microsoft update (depending on your version of Windows) and allow the computer to update all updates available. C. If you are running any Anti‐Virus software you may want to temporarily suspend the software during installation. D. If you are prompted to "Allow a program” through your firewall during install or on first start‐up of the software, you will need to click "Yes" or "Allow" but may also need to manually add an exception to run the program and all of its features; however, this is a rare occurrence. II. NETWORK REQUIREMENTS ...
Page 3 Dakota Micro, Inc. DMAC-2USB User Manual C. Click on "Install Program" to install the drivers and the Simple Sight viewing and streaming program. D. If prompted with a security warning, click “Run” to continue with installation. This program is safe, but there is no Microsoft certificate. Continue to leave USB Device unplugged! E. Once the software is successfully installed a Simple Sight software icon will appear on the desktop. Double click this icon and run the program for the first time. Wait for about 10 seconds and let the program check for updates. If there are updates available the program will prompt you to install them; let the program update to the latest version. During the update procedure the program will close and, upon completion, will prompt you to re‐open the program. F. When the software first open, you will see a screen similar to the image to the right that should include the statement “Device Unavailable”. NOW you get to plug in your Simple Sight! When the device is plugged in for the first time, Windows will identify the device and assign the driver to it; please be patient as this will take a moment. ...
Page 4: Software Menu Options
Dakota Micro, Inc. DMAC-2USB User Manual H. Hover the mouse over the Menu icon in the lower left side of the screen and you will see the word "Menu" pop up on the top of it; click the Menu screen to display the options. IV. SOFTWARE MENU OPTIONS A. Toggle camera  Clicking this icon will switch between the camera displayed and the one that isn't. The camera name will briefly appear at the top of the screen to identify it. Location of the camera name can be changed in your settings. B. Take Snapshot  Clicking on this icon will instantly take a photograph of the image on the screen and store it on your computer with the default location being the "My Pictures > Simple Sight" folder.  Each image within the dated folder will be named according to the time of day the snapshot was taken; for example, if the snapshot was taken on July the 4th, 2012 at 2:23 PM, the folder name will be 2012‐07‐04, and within that folder will be an image with the title (military time) 14‐23‐10 (the 10 is the seconds, HH‐MM‐ SS)  At the moment you press the "Take Snapshot" button there will be a confirmation on the top of the screen stating "Snapshot Saved" with a small arrow next to it. This will stay for a few seconds, so if you would like to open the folder where the image was saved, you can click anywhere in the bar where the statement appears to open the folder. The default image save folder can be changed in the Settings menu, under Image Settings. C. Image Settings ...
Page 5: Settings
Dakota Micro, Inc. DMAC-2USB User Manual SETTINGS A. Interface Tab  Show systems tray icon ‐ This will show/hide the system tray icon when the software is running. This is useful for those that want to minimize the program but to let the program continue to stream (explained later).  Start in fullscreen mode ‐ This will start the program in full screen mode when you first start the program. You can exit the full screen mode at any time by right clicking on the video image screen and select "Windowed Mode" or alternately when the screen is windowed you can select "Full screen mode"  Always Show camera name ‐ This will keep the camera name on the top of the screen in the standard view screen. The name of the camera will not be captured with the snapshot utility as the label is above the image area.  Download updates automatically ‐ Keep this feature checked if you want to receive updates when available. Uncheck only if you do NOT want the updates, and if the program is perfect for your needs.  On‐Screen Menu ‐ This selection box has 2 options, "Show Menu Button" and "Show Expanded Menu". When the selection "Show Menu Button" is selected the program will open with a menu Icon in the lower left side of the screen. When the selection "Show Expanded menu" is selected the screen will show the menu icons at all times. If you would like to customize your menu items that are displayed, you can click on the “Customize” button. A new window will appear that will give you the ability to decide which icons are available to the user interface.  To add or remove menu items, simply highlight the unwanted item from the box of available icons in the top box and click on the Minus (‐) button, the icon will be removed from the top box.  If you would like to add an additional icon select it from the drop down list on the left and click on the Plus (+) button and it will appear in the top box.  To rearrange the icons in the top box you simply highlight the icon you want to move up or down and ...
Page 6: Device Tab
Dakota Micro, Inc. DMAC-2USB User Manual B. Device Tab  1st (and 2nd) Camera Name – This allows you to enter the name you want to have display on the top of the screen. The camera name will not be stored on the image snapshots.  Video Mode ‐ There are several options. These options are intended to allow you to choose the proper resolution and orientation of your cameras. Select lower resolutions if you want faster refresh, especially when streaming the video as it will be significantly faster and you will receive more images per second; or, use higher modes if you aren't concerned with a delay or fluid motion, but want clear images for snapshot use. For live viewing on the PC where the USB device is plugged, there is only personal preference; however, you will want to choose 29fps modes for NTSC cameras and 25fps for PAL modes. The lowest Frame rate of 14fps is primarily for use in slow internet connections intended to stream the video.  View Mode ‐ 2 Options  Fit in view ‐ This option will keep the screen size of the viewing area in the same aspect ratio of the camera image to maintain the entire image on screen at all times.  Scale and crop ‐ This will allow the image to fill the screen top to bottom at all times and crop the sides off if necessary; it will not cut the top and bottom of the camera image off, only the sides.  Reset Defaults ‐ If you really mess up this is a way to return to the install defaults and start over. C. Web Access Tab  Enable Web Access ‐ this turns on the Web Access Server, allowing for internet or intranet streaming on other computers, or even off‐site via the internet.  The default port for this device is 8080, which should be perfect for most internal network viewing.  To test if your network is capable of allowing outside access to this video device, click on “Enable Web Access” and then click the “Test” button. At this point you may need to allow access through your firewall which (unless you are super secure) you will only need to tell your computer to "Allow" it. After a few seconds you will either be transferred to a web page ...
Page 7 Dakota Micro, Inc. DMAC-2USB User Manual The home network and the internet relationship to your video feed. AgCam Camera: Produces the image and is sent along the cables to the Simple Sight Hardware. The Simple Sight Hardware: Accepts the composite signal from the AgCam Cameras where it's converted into a digital signal that can be understood by your computers USB port. The Home PC: This accepts the signal from the USB device and can display the image from the camera onto the screen, also this image can be forwarded onto the home network via "Ethernet" cable to your router. The computer will need the Simple Sight software installed and configured to stream the video onto the network via a port number. All computers on a network have an "IP address" such as 192.168.0.2. In the simple sight software you will have to specify a port to send the video onto your router in your network. In addition to a IP address assigned to your computer there is one assigned to your internet service as it's seen from the internet side, to find this out simply visit the site http://whatismyip.com and your internet address will show. The Home Router: (this is the point where DM technical support cannot provide assistance any longer, please contact your ISP, networking specialist or a really smart friend) This is the part of your network that will route information from your PC to other PC's on your network or to the Internet via your ISP and whatever equipment they provide if any to communicate such as a Modem. This router must be configured to allow the port mentioned above to forward the information from that port onto the internet, this is done by a method called "Port Forwarding". You may need to consult your Internet service provider or the router manufacturer to help with this if you aren't familiar with router configuration. Most home devices such as this are quite user friendly however Dakota Micro Can NOT assist you with this configuration. Your ISP or Internet Service Provider: The ISP is a service company that sells access to a network of computers called the Internet. This company is a very large version of what the home router is and can block or allow access in a similar way. Some ISP's have been known to block certain ports or even throttle bandwidth to certain customers. You should check with your ISP to make sure they allow for your service to act as a "Server" for video feed and inquire if any port numbers are blocked. Without the ISP cooperation there is no way to ever configure your Simple Sight for offline viewing. ...
Page 8 Dakota Micro, Inc. DMAC-2USB User Manual Let's try an example setup: In this example we're going to assume a few things: if you got a router from a retail store and didn't establish a different IP address, your default IP address for the router will be something like 192.168.0.1, and each computer on your home network will be using a similar number with the last number in the sequence being a different number, such as 192.168.0.123. Giving this example let's assume:  Router address is 192.168.0.1  PC where SS is plugged in is 192.168.0.123  Port number typed into SS program (settings, web access tab, port number) is 8088  On the web access tab of the SS program, you have the "Enable Web Access" checked  You have not selected to "Require Authorization" (if you only use this within your own network it is not necessary to require authorization; however, if you pipe this outside of your network, this should be enabled and enter a username and secure password.) Using this example setup: if you were to go to another computer on your network, you would open an internet browser and in the address bar (not the search bar), which is toward the top of the page and will have something like http://google.com in it. Type the following numeric code into the address bar: “192.168.0.123:8088.” The first part is the address of the computer with the SS software and the 8088 is the port number, the ":" (colon) separates the two numbers and must be typed in properly as shown. This address is unique to each computer just like your house has a unique address. Once you hit "Enter" or "Go", you should connect to the computer using the SS hardware and be directed to the port serving the video feed, a similar looking window will pop up to interface with the SS. Different browsers will require different methods of viewing the camera feed: Internet Explorer: The least friendly of the browsers will prompt you to install the "Google Chrome Frame", which is very small and loads very fast. This will only be required the first time you access the cameras if it's not already installed. Firefox: Very friendly and will instantly display your video. ...
Page 9 Dakota Micro, Inc. DMAC-2USB User Manual 1. Open Network and Sharing Center by clicking the Start button , clicking Control Panel, clicking Network and Internet, and then clicking Network and Sharing Center. 2. If network discovery is off, click the arrow button to expand the section, click Turn on network discovery, and then click Apply. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. 3. If file sharing is off, click the arrow button to expand the section, click Turn on file sharing, and then click Apply. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. 4. If Public folder sharing is off and you want to share files by placing them in the Public folder on your computer, click the arrow button to expand the section, click Turn on sharing so anyone with network access can open files or Turn on sharing so anyone with network access can open, change, and create files, and then click Apply. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. 5. If printer sharing is off, and you have a printer you want to share, click the arrow button to expand the section, click Turn on printer sharing, and then click Apply. If you are prompted for an administrator password or confirmation, type the password or provide confirmation. 6. Finally, share the file or printer by doing one of the following: Right‐click the file or folder you want to share, click Share, click the arrow, select the people you want to share with, and then click Share. For more information, see Share files with someone. Copy the files or folders you want to share to the Public folder on your computer. To find the Public folder, click the Start button , and then click Documents. In the Navigation pane, under Favorite Links, ...
Page 10: Warnings
Dakota Micro, Inc. DMAC-2USB User Manual VII. WARNINGS  When selecting a camera system from Dakota Micro, be sure to utilize the appropriate system for your use. AgCam and EnduraCam cameras are designed for high impact, moisture, vibration and a variety of other rough conditions. OverView cameras and kit components are designed for light use, low vibration and low moisture. OverView equipment is not warranted when used in situations outside of the above mentioned parameters. We always request that customers keep in mind that our less expensive OverView product line is cheaper because it does not feature the reliability and durability of our AgCam and EnduraCam lines. The warranty available on these products reflect that durability.  To avoid electrical shock and maintain optimal functionality, do not open the enclosures. High voltage may be present and there are no user serviceable parts inside. All warranties will be void should any enclosures be tampered with in any way.  Do not use any harsh chemical solvents, cleaning agents or corrosive detergent to clean away dirt on the surface of the screen or lens.  On AgCam and EnduraCam products, the photo‐chromic camera lenses have been made impact‐resistant and have been drop‐ball tested according to Sec. 3.84,21 CRF BUT ARE NOT UNBREAKABLE. Because they have been hardened chemically, they show no stress pattern. Inspect your lenses frequently. Chipped or scratched surfaces will reduce protection. Such lenses should be replaced only by the manufacturer.  Power to cameras is not interrupted by turning off monitor; 12v power source must be terminated when not in use to avoid battery drain. To avoid this problem be sure when hard wiring a unit, use a fused circuit.  Do not use your Dakota Micro camera system for anything other than legal surveillance and observation uses. Dakota Micro, Inc. is not liable for any illegal or nefarious usage. ...
Page 11: Product Warranty/Repair Process
Dakota Micro, Inc. DMAC-2USB User Manual VIII. PRODUCT WARRANTY/REPAIR PROCESS 1. For Technical Support call 1 701‐538‐4403 OR email techsupport@dakotamicro.com 2. Technician will assist in troubleshooting product malfunction. 3. If product malfunction cannot be remedied and a repair is deemed necessary, Technician will issue a Repair Authorization (RA) number. IMPORTANT NOTE: The Technician will note on the RA form if the repair APPEARS to be a warranty or non‐warranty issue based on customer description of the issues at hand. No final determination can be made until inspection and testing of the equipment is completed at the factory. 4. To ensure fast and effective repairs, customer is required to send:  Dakota Micro Product that Technician has requested/deemed necessary in the proper diagnosis and repair of malfunction. This may include some or all components of the kit.  Original/Copy of purchase receipt.  For serialized items ONLY; If a copy of the original purchase receipt cannot be provided, then DAKOTA MICRO will use the product manufacture date.  Customer information, including return address & phone number. If the phone number is not included, the customer will be sent a letter requesting the needed information.  RA Number provided by Dakota Micro Technical Support  Shipping and associated costs to ship product to DM factory to be borne by the customer unless otherwise specified. 5. Customer should mail product to: ...
Page 12: Consumer Limited Warranty
Dakota Micro, Inc. DMAC-2USB User Manual CONSUMER LIMITED WARRANTY Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. warrants that the Product will be free from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT. EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY. Any oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this LIMITED WARRANTY are void. Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for AgCam® /EnduraCam® and InnoPro® cameras; two (2) years for AgCam®/ EnduraCam® monitors, and Wireless components; Twelve Months (12) for all Overview Cameras & Monitors, cables and all other accessories. The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year maximum limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro. This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete Dakota Micro “Warranty & Repair Policy” listed on page 11 ‐ section XI , and provide proof of purchase to Dakota Micro. Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time periods described herein. The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota Micro. Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you. Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or with respect to any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North Dakota, either in the state district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North Dakota. Without regard to conflicts of law principles, the laws of the state of North Dakota shall govern the interpretation and enforcement of the terms of this Limited Warranty and all aspects of the relationship between Dakota Micro and the purchaser. This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state. DISCLAIMER Dakota Micro Inc. products, specifications, pricing and programs are subject to change without prior notice. Dakota Micro ...
