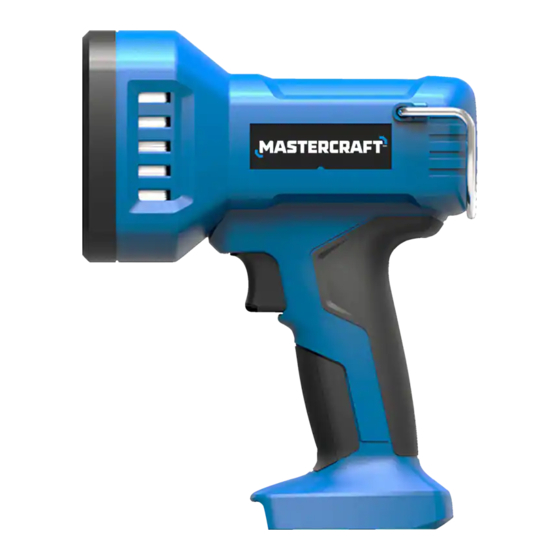

- Page 1 CORDLESS LED SPOT LIGHT 054-4265-8 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
- Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •... -
Page 4: Technical Specifications
1 lb 5 oz (0.6 kg) *Maximum battery voltage without workload; with workload nominal voltage is 18V. notes notes notes Recommend using tool with Mastercraft® 20V max* Lithium-Ion 4.0 Ah battery (054-7557-6; sold separately) for optimal performance. warnings warnings warnings... -
Page 5: Safety Guidelines
SAFETY GUIDELINES WARNING! Safety symbols in this instruction manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures. - Page 6 054-4265-8 | contact us 1-800-689-9928 • Do not contact moving parts. • Only use attachments recommended or sold by the manufacturer. • To reduce the risk of electric shock or damage to the charger and battery, use only the batteries and charger listed.
- Page 7 • Do not allow children to use the cordless worklight. It is intended for professional use. Children can unintentionally blind themselves or other persons. • The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .....
-
Page 8: Key Parts Diagram
• If any part of the spot light is missing or damaged, do not attach the battery pack to the tool or use the tool until the part has been repaired or replaced. Failure to heed this warning could result in serious injury. • Carefully read the instruction manuals for your Mastercraft 20V max Lithium-ion Battery and Mastercraft 20V max Lithium-ion Charger for safety and operation instructions. -
Page 9: Operating Instructions
OPERATION INSTRUCTIONS TO ATTACH BATTERY PACK (fig 1) fig 1 Latch 1. Align the raised platform on the battery pack with Detach the grooves on the bottom of the tool, then slide the battery pack into the body of the tool. 2. -
Page 10: Maintenance
054-4265-8 | contact us 1-800-689-9928 MAINTENANCE 1. To avoid personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. 2. Do not let brake fluids, gasoline, petroleum-based products, penetrating oil, etc. come into contact with plastic parts. -
Page 11: Troubleshooting
TROUBLESHOOTING Problem Possible causes Solutions The spot light does not The battery is depleted. Change or charge the battery. work. If any parts are missing or damaged, or if you have any questions, please call the toll-free helpline at 1-800-689-9928. -
Page 12: Parts List
054-4265-8 | contact us 1-800-689-9928 EXPLODED VIEW continuation tabs continuation tabs continuation tabs continuation tabs continuation tabs continuation tabs notes notes notes notes notes notes warnings... - Page 13 No. Part No. Description No. Part No. Description 3706297000 Transparent Guard 3660110000 Spring 3128897000 Reflector 3680109000 Magnet Ring 5610011000 Tapping Screw 3650074000 Pothook 2830256000 Electric Assembly 3322211000 Left Housing 3706287000 Mounting Plate 2830226000 Electric Assembly 3706295000 Heat Sink 3322212000 Right Housing 3126608000 Switch Button 5610013000...
-
Page 14: Warranty
054-4265-8 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;... - Page 15 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8...
