Luzern
4000 mm x 3000 mm
Wall thickness 28 mm
Nordic region spruce wall boards
Dimensions of pedestal
Outer dimensions incl. roof overhang
Area of roof
Height of ridge
1 glazed door width x height
2 glazed windows width x height
Height of side walls

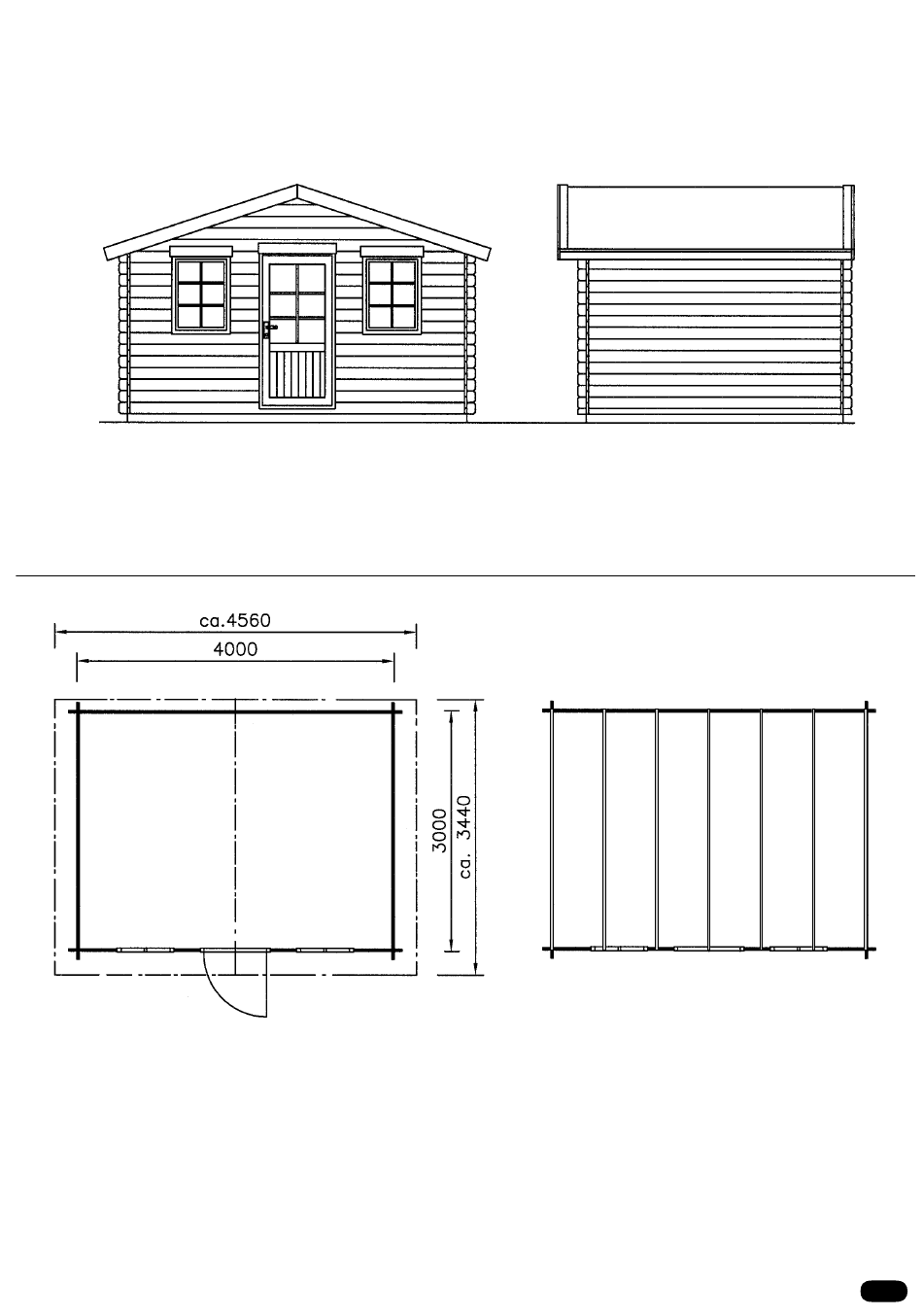

Ground plan and
foundation plan
1
28 mm x 135 mm
4000 mm x 3000 mm
4560 x 3440 mm
16 m²
2660 mm
895 mm x 1820 mm
640 mm x 870 mm
1960 mm
(All measurements approximately)
Luzern
271205
Placing the foundation beams 7 pcs.
2
3
4
5
6
7
1
