Summary of Contents for Spectroline 11SC-1

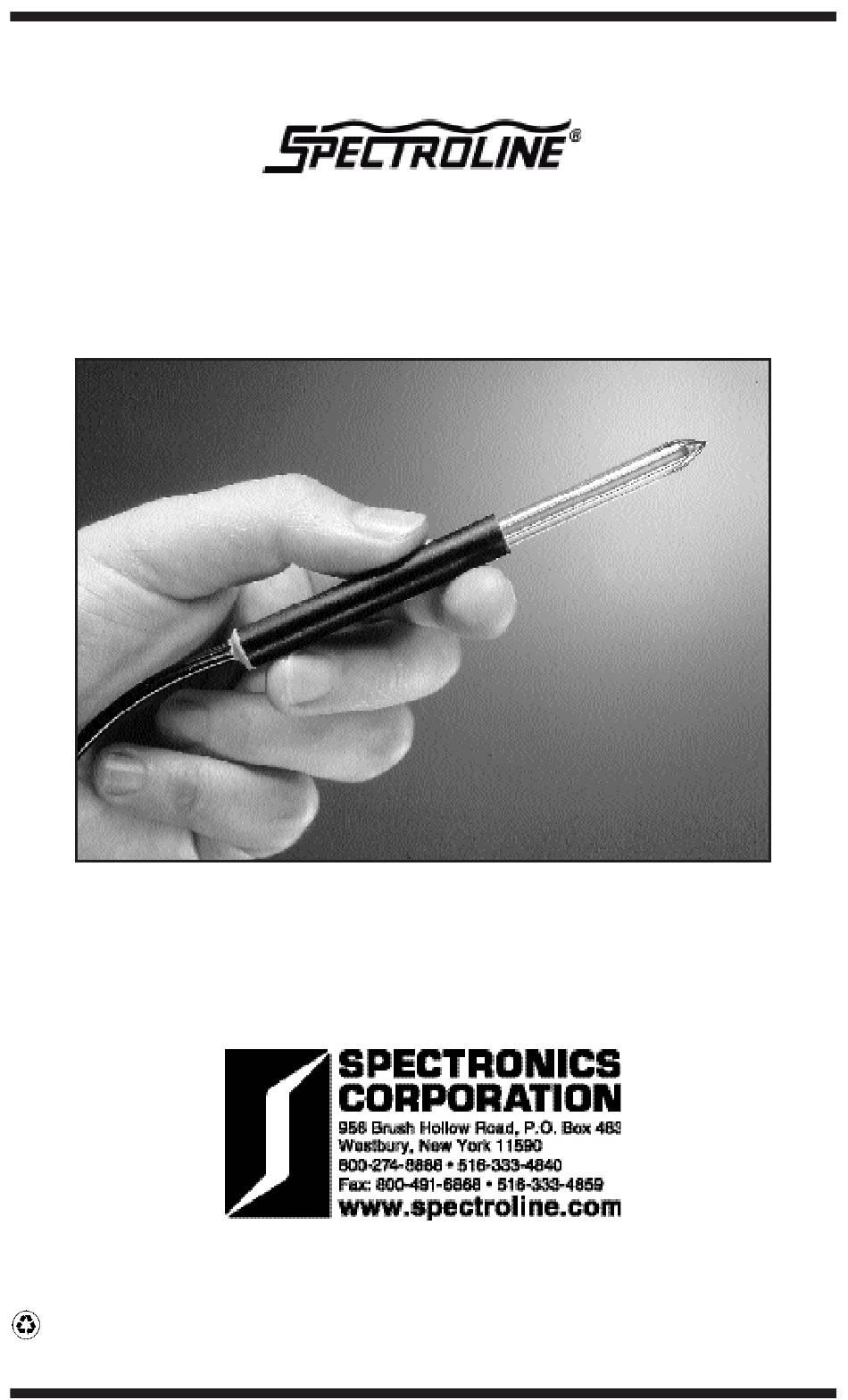

- Page 1 OPERATOR’S MANUAL 11SC-1, 11SC-2 and 36-380 Miniature Ultraviolet Quartz Pencil Lamps and SCT-1A Power Supply Recycled Paper Manual No. 86007-3 Printed in U.S.A. Issued: November 2004...
- Page 2 CLOTHING. EXPOSURE MAY CAUSE PREMATURE AGING OF THE SKIN AND CANCER. ALWAYS WEAR PROTECTIVE EYEWEAR; FAILURE TO DO SO MAY RESULT IN SEVERE BURNS OR LONG TERM INJURY TO EYE. Never look directly into the lamp. Exposure can cause eye and skin allergy and allergic reac- tions. Medications or cosmetics may increase your sensitivity to ultraviolet radiation. Consult physician before operating this product if you are using medication or have a history of skin problems or believe yourself especially sensitive to sunlight. For Professional Use Only WARNING Please read the instructions in this manual carefully before using your Spectroline UV quartz lamp. Never use this ® equipment in any manner not specified in these instructions because the protection provided by the equipment may be impaired. We recommend using Spectroline UV-absorbing protective eye and face wear (i.e., UVS-30 spectacles, UVG-50 goggles or UVF-80 face shield). LAMP CONTAINS MERCURY Manage in Accord with Disposal Laws See: www.lamprecycle.org...

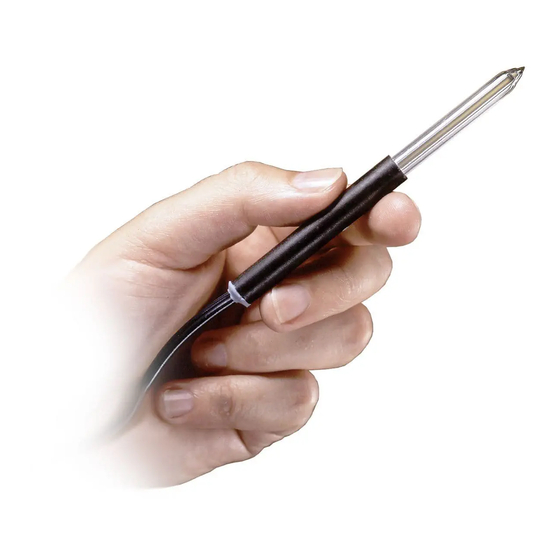

- Page 3 INTRODUCTION The Spectroline 11SC-1, 11SC- and 36-380 quartz pencil lamps are small, low-pressure, mercury vapor discharge lamps made of double-bore material with both electrodes at one end. When used properly, they are very stable lamps and maintain a high output of ultraviolet radiation over several thousand hours.
-
Page 4: Preparation For Use
• The 11SC-1 is a short wave (54nm) ultraviolet lamp with a lighted tube length of 1/8 in (5.4cm), 1/4 in (0.64cm) outside diameter (OD). It may be used alone or with any of three separately available light shields, each with a different aperture for directing the light. - Page 5 5. On/Off Switch Connects/disconnects power to lamp. 6. Cord and Female Point of connection of lamp Connector cord to power supply. 7. Power Supply Cord Supplies power from AC outlet. 2. Lamp Handle 1. Quartz Tube 11SC-1 6. Cord and Female 5. On/Off Switch Connector 3. UV Filter SCT-1A 7. Power Supply Cord 36-380 4. Pencil Lamp...
-
Page 6: Preliminary Checks
OPERATION WARNING Avoid handling the quartz tube of the pencil lamp with fingers. Skin oils will etch the tube surface. Always use a clean cloth or gloves. PRELIMINARY CHECKS 1. The toggle switch of the power supply should be in the "OFF" position before it is plugged into the AC outlet. - Page 7 POLAR INTENSITY PROFILE All double-bore pencil lamps, such as the 11SC-1, 11SC- and 36-380, produce uneven irradiance around their quartz tubes, especially at close range. Distinct areas of lower irradiance occur near the glass-dividing wall, which is visible inside the tube between the two electrodes. Figure 3 illustrates the relative intensities around the 11SC-1 and 11SC- lamps, with respect to this wall.
-
Page 8: Maintenance
(0.48 x 3.8cm) and is widely used in calibrating spectrophotometers. To operate, slip the open end of the light shield over the 11SC-1 lamp tube. The base of the shield should fit snugly over the lamp handle. With the power supply switched "on," point the open part of the shield toward the area to be illuminated. -
Page 9: Environmental Conditions
• Installation Category II; • Pollution Degree . WARRANTY The warranty policy for the Spectroline UV quartz pencil lamps is provided on the Certificate of Limited Warranty enclosed separately with each unit. NOTE: For assistance of any kind, including help with a unit under warranty, contact the Customer Service Department at Spectronics Corporation. -
Page 10: Troubleshooting
TROUBLESHOOTING Symptom Probable Cause Cure 1. Will not light (a) Lamp temperature (a) Warm lamp in hand too cold (with power off) or store/use lamp in warmer environment (above 60°F/15.6°C) (b) Power supply voltage (b) output too low Replace power supply (c) Lamp cracked (c) Replace lamp (d) Lamp life expired... -
Page 11: Ordering Information
POWER SUPPLY, 10 Volts/60Hz SCT-1A POWER SUPPLY, 30 Volts/50Hz SCT-1A/F LIGHT SHIELD with 0.04 inch ID drill hole (for 11SC-1) Shield A LIGHT SHIELD 5/16 x 5/8 inch window (for 11SC-1) Shield B LIGHT SHIELD 3/16 x 1 inch window (for 11SC-1)
