Summary of Contents for Move Green Global SLC608In-wall

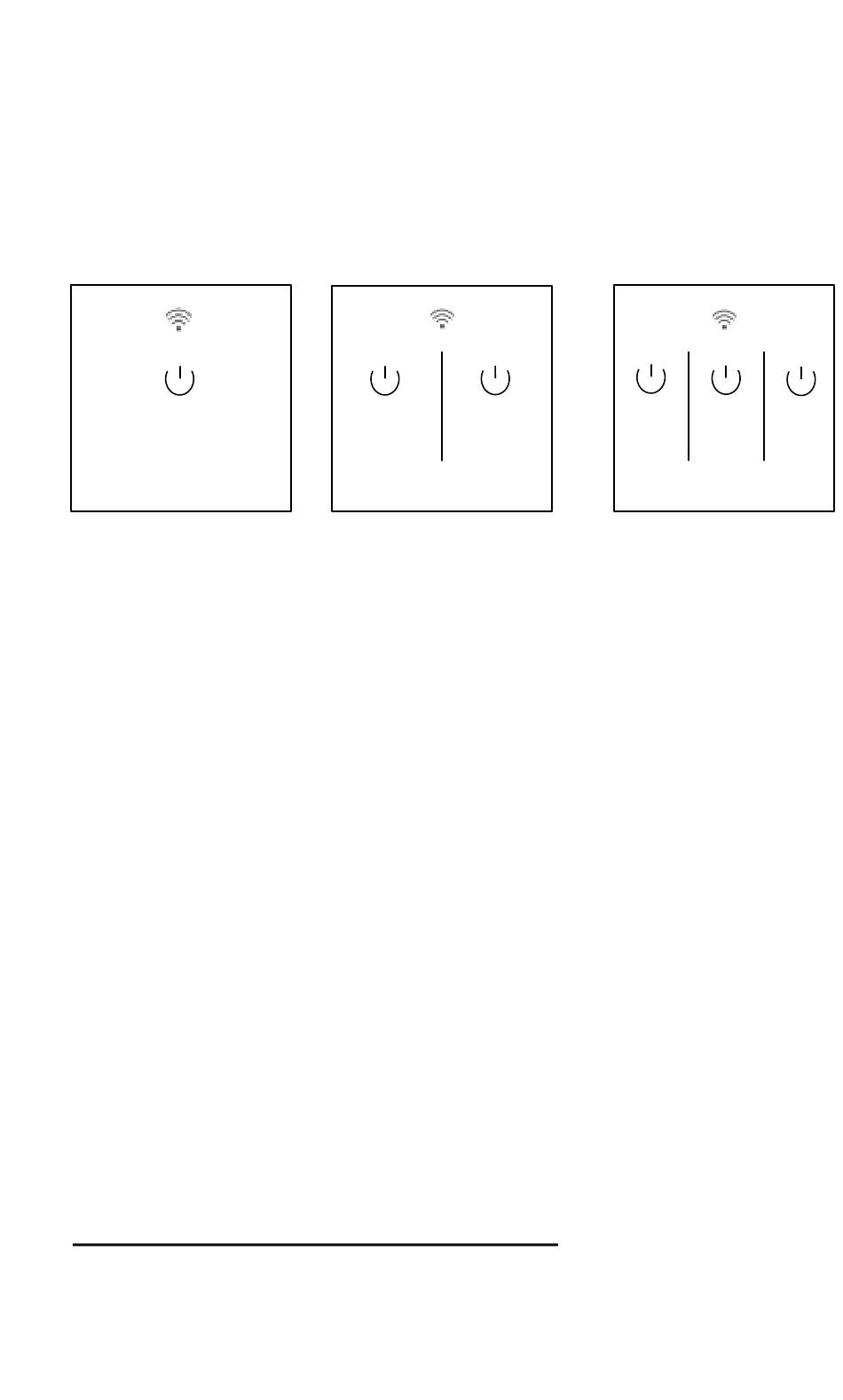

- Page 1 SLC608In-wall Touch Switch EU Quick Start Guide...
- Page 2 1. Introduction The In-wall Touch Switch allows you to remotely control your lighting or even apply schedules for automatic switching. This guide will provide you with an overview of the product and help you get through the initial setup and installation.
- Page 3 3. Get Started Warning! • The In-wall Touch Switch must be installed and serviced only by qualified electrical personnel. • Do not touch the terminals of the device during the testing. • Turn off all power supplying this equipment before installing.
- Page 4 3.1 To get started, you will need: A SEG-X3 Gateway The SmartOWON mobile app 3.2 Installation The in-wall switch must be installed by qualified electrical personnel, keep the wiring diagram below for future reference.
- Page 5 3.3 Connect to the gateway’s network 1. Set your gateway to permit joining. 2. The LED indicator of the In-wall Touch Switch will start flashing after installation indicating it is ready to join the gateway's network (reset it if not). 3.
- Page 6 4. Technical Specifications Wireless Connectivity ZigBee 2.4GHz IEEE 802.15.4 RF Characteristics Operating frequency: 2.4GHz Range outdoor/indoor:100m/30m Internal PCB antenna ZigBee Profile ZigBee Home Automation Profile Power Input 100〜240 VAC 50/60 Hz Working Temperature -20°C-55°C ...
