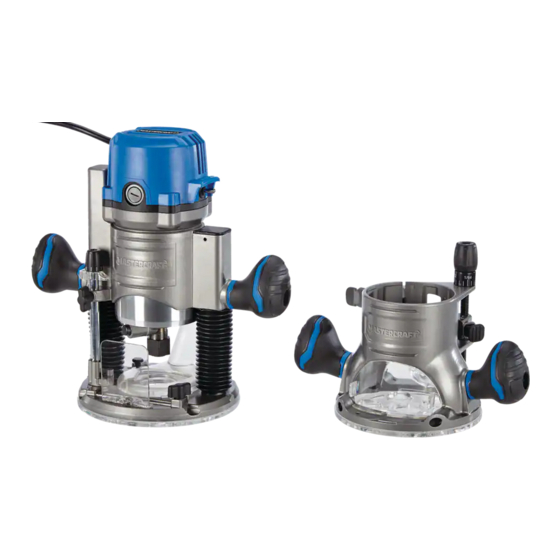

MasterCraft 1323.2 Instruction Manual

Plunge/fixed-base router

Hide thumbs

Table Of Contents

Quick Links

PLUNGE/FIXED-BASE ROUTER

IMPORTANT:

Read and understand this instruction manual

thoroughly before using the product.

054-6821-2

INSTRUCTION

MANUAL

Table of Contents

Need help?

Do you have a question about the 1323.2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MasterCraft 1323.2

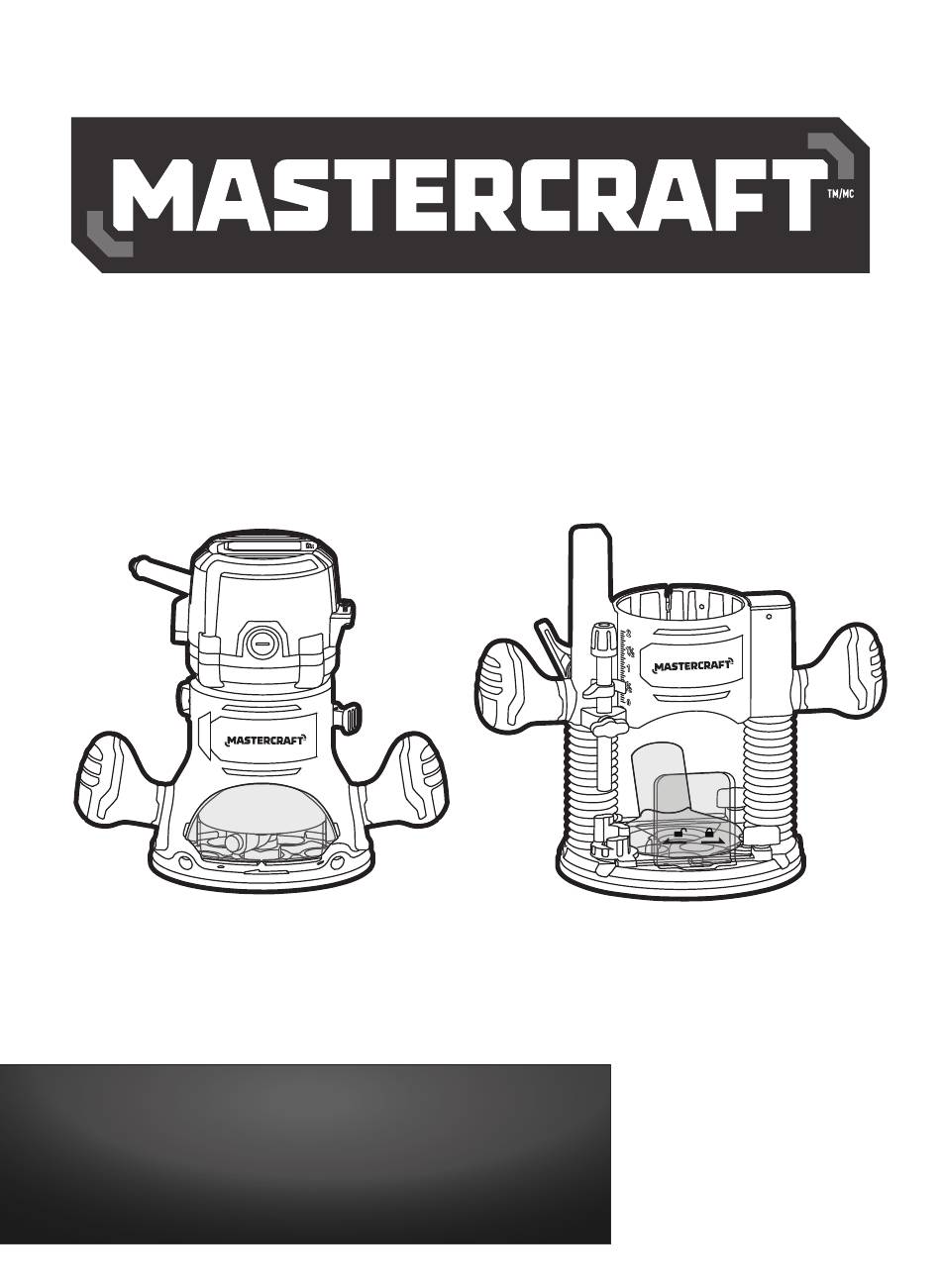

Page 1 PLUNGE/FIXED-BASE ROUTER 054-6821-2 IMPORTANT: INSTRUCTION Read and understand this instruction manual MANUAL thoroughly before using the product.
Page 2 headline bars headline bars headline bars continuation tabs continuation tabs continuation tabs notes notes notes warnings warnings warnings...
Page 3: Table Of Contents
TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. SAVE THESE INSTRUCTIONS •...
Page 4: Technical Specifications
headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Rated Voltage 120 V~ 60 Hz Rated Power Input No-load Speed 25,000 RPM Collet Capacity 1/4 & 1/2” (6.4 & 12.7 mm) continuation tabs continuation tabs continuation tabs notes notes...
Page 5: Safety Guidelines
SAFETY GUIDELINES: WARNING! Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols and their explanations require your full understanding. The safety warnings do not, by themselves, eliminate any danger, nor are they substitutes for proper accident prevention measures.
Page 6 headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools.
Page 7 • Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. POWER TOOL USE AND CARE • Do not force the power tool.
Page 8 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 ADDITIONAL SAFETY GUIDELINES FOR THE ROUTER • The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .....
Page 9: Key Parts Diagram
PACKAGE CONTENTS: Motor, plunge base, fixed base, 1/2” (12.7 mm) collet and 1/4” (6.4 mm) collet sleeve, straight-edge guide, dust-extraction adaptor (fixed base), dust-extraction adaptor (plunge base), 2 chip shields, collet wrench, nylon tote, and instruction manual. KEY PARTS DIAGRAM No.
Page 10: Operating Instructions
headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS SELECT THE CUTTER BIT This router comes with a 1/2” (12.7 mm) collet and 1/4” (6.4 mm) collet sleeve that accept cutter bits with 1/2”...
Page 11 INSTALL THE CUTTER BIT (fig 2) fig 2 Cutter 1. Turn the motor off and unplug the router from the power source. Bit shank Spindle- 2. Remove the motor housing from the fixed or plunge lock base. button 3. Set the motor upside down on its top cap, with the collet pointing up.
Page 12 headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 INSTALL THE MOTOR IN THE FIXED BASE (fig 3) 1. Disconnect the plug from the power supply. 2. Place the fixed base on a flat surface. 3. With the back of the fixed base facing you, open the motor clamp. 4.
Page 13 CHIP SHIELDS (fig 5) fig 5a For fixed base: 1. To attach, place the chip shield in position and flex Chip shield the sides while pushing the shield in until it snaps into place (fig 5a). 2. To remove the chip shield from the fixed base, press inward on the tabs until the chip shield releases from the base, and then remove the chip shield.
Page 14 headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 EDGE GUIDE ( fig 8 ) fig 8a Screws The router combo kit comes with an edge guide. Edge-guide rod This edge guide can be used as an aid in routing Quick- applications such as decorative edging, straight- release...
Page 15 DEPTH ADJUSTMENT WITH THE PLUNGE fig 10 BASE PLUNGING ACTION (fig 10) The plunge base feature simplifies the depth adjustments and will allow the cutter bit to easily and accurately enter the workpiece. To lower the cutter bit, release the plunge-depth locking lever by moving it “Up”...
Page 16 headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 MICRO-ADJUSTMENT WITH THE DEPTH ROD AND DEPTH-STOP TURRET The depth rod has a micro-adjustment knob that turns a screw (inside the rod) either clockwise or counter-clockwise to lower or raise the depth rod on the turret for micro-adjustment of the plunge depth.
Page 17 LED WORKLIGHTS (fig 13) fig 13 Your router motor has 3 built-in worklights located around the collet to provide high visibility of the workpiece when cutting. These lights are always on when the toggle switch is in the “ON” position. LIVE-TOOL INDICATOR LIGHT (fig 14) fig 14 Your router also has a live-tool indicator light,...
Page 18 headline bars headline bars headline bars headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 RATE OF FEED The proper rate of feed depends on several factors: the hardness and moisture content of the workpiece, the depth of cut, and the cutting diameter of the bit. When cutting shallow grooves in soft woods, such as pine, you may use a faster rate of feed.
Page 19: Maintenance
MAINTENANCE Before cleaning or performing any maintenance, verify that the router has been disconnected from the power supply. Keep all ventilation openings clean. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use a clean cloth to remove dirt, oil, and grease.
Page 20: Troubleshooting
headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 TROUBLESHOOTING Problem Possible Causes Solution Plug is not plugged into the Plug the cord into the power source. power source. The router does not work. Switch is in “OFF” position. Move the switch to “ON”...
Page 21: Parts List
EXPLODED VIEW...
Page 22 headline bars headline bars headline bars model no. 054-6821-2 | contact us 1-800-689-9928 No. Part No. Description No. Part No. Description 5610220000 Screw 5620061000 Screw 3130287000 Rear Cover 3421190000 Spindle Lock Cover 3121518000 Transparent Cap 5620069000 Screw 5610017000 Tapping Screw 2823121000 Collet Assembly 4891830000 Speed Adjustor 5620041000 Screw...
Page 23: Warranty
3660399000 Spring 5620103000 Screw 3550083000 Depth Adjusting Bolt 3123344000 Chip Shield 3550913000 Depth Stop Bar 3700078000 Wave Washer 3121634000 Depth Indicator 3420387000 Turntable 3121639000 Cover 5700046000 Steel Ball 5660018000 Circlips 3660030000 Spring 3400189000 Lock Bolt 2826747000 Mounting Assembly 2826744000 Plunge Frame Assembly 3122923000 Base Plate 3660254000 Torsion Spring 301 5620353000 Screw...
Page 24 054-6821-2 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
Page 25 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Made in China Imported by Mastercraft Canada Toronto, Canada M4S 2B8...
