Summary of Contents for SWARDMAN Verticutter cartridge

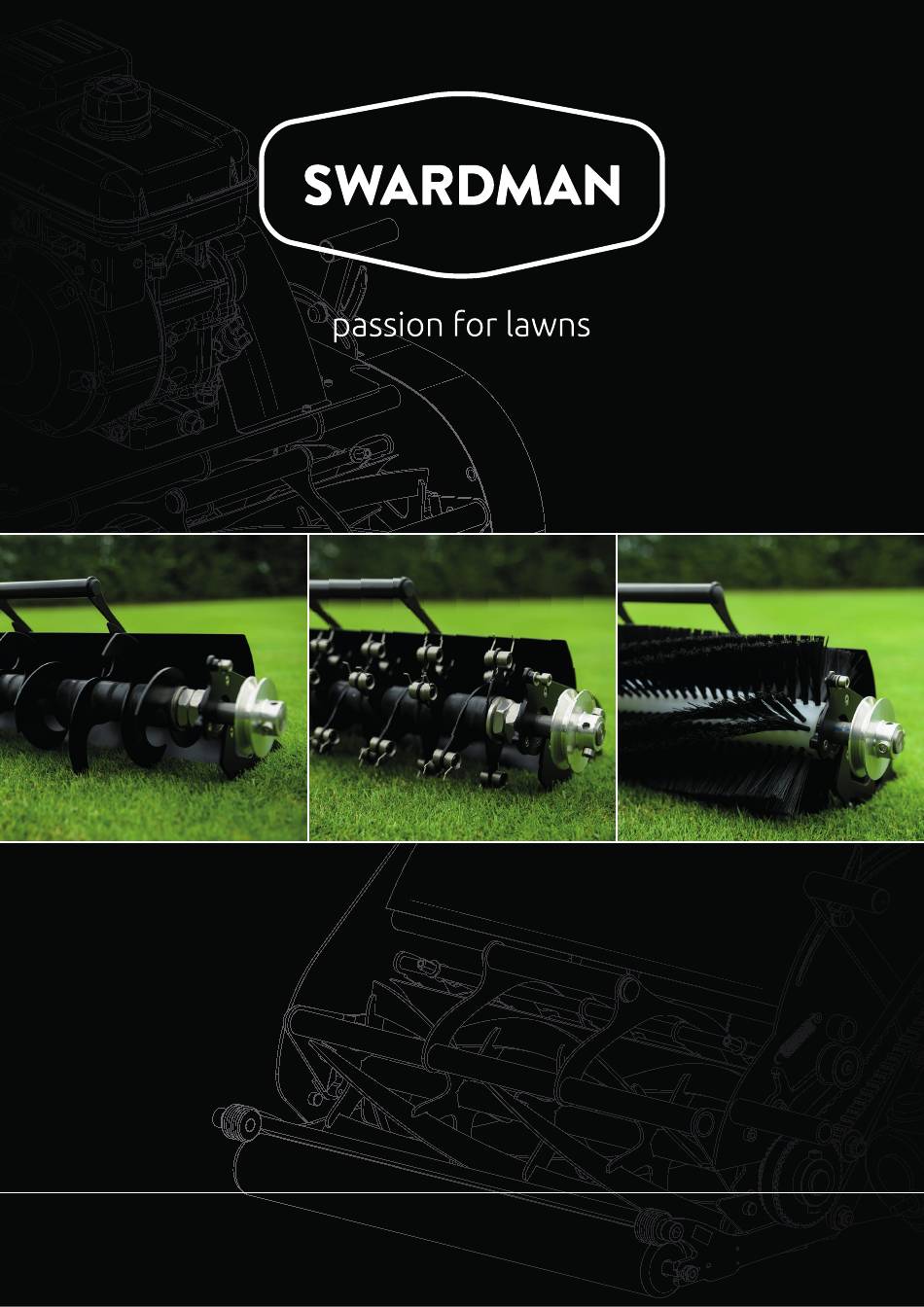

- Page 1 verticutter scarifi er rotary cartridge cartridge brush USER MANUAL - regenerative cartridges...
- Page 2 / reel mower and the right and regular use of a verticutter, scarifi er and rotary brush will move the quality and health of your lawn to an even higher level. You will become inspirational not only for your loved ones but also for other lawn enthusiasts. Tomáš Šena Swardman Director and Founder...
-
Page 3: Table Of Contents
Table of Contents Content Safety instructions Basic information Package contents Product description and use Technical specifi cations Explanations to Figures 1 and 2 Installation of regenerative cartridges Maintenance Acknowledgements Troubleshooting Warranty information Accessories and manufacturer information Regenerative Cartridges - User manual | Valid from: January 2019... -
Page 4: Safety Instructions
Safety Instructions y Read the User Manual before you start using the machine. y Third parties must keep a sufficiently safe distance from the working area. y Due to the safety reasons, children and adolescents under 16 years of age and persons who have not read and understood this User’s Manual sufficiently are not allowed to work with this machine. -
Page 5: Package Contents
The scarifier combs the grass nicely and highlights the stripes on the lawn. The stainless steel springs of the scarifier are subject to normal wear and should be replaced with new ones when worn and not functioning. Spare parts are available in the e-shop at www.swardman.com Regenerative Cartridges - User manual... -
Page 6: Technical Specifi Cations
For the aeration and best results, we recommend using dry and loose silica sand with a fraction of 0 - 2 mm (0 - 0.08 in). Moist or wet sand is not suitable for rotary brush application. Technical Data Verticutter cartridge Scarifier cartridge Rotary brush... -
Page 7: Explanations To Figures 1 And 2
Explanations to Figures 1 and 2 Fig. No. 1 - Swardman Edwin 2.0 Designed by Checked by Approved by Date Date Designed by Checked by Approved by Date Date Swardman 15.11.2018 Swardman 15.11.2018 Edition Sheet Edition Sheet 1 / 1 1 / 1 Fig. -
Page 8: Installation Of Regenerative Cartridges
Installation of regenerative cartridges 1. Loosen the mowing height lock screw on the right side of the machine 2. Use the height setting lever to set the mowing height to maximum 3. Remove the side cover of the machine 4. Release manually the V-belt (Edwin) or cog belt (Electra) from the cartridge pulley 5. -
Page 9: Maintenance
Acknowledgements Thank you for purchasing a Swardman product. We believe that with proper care it will serve you for a long time and your lawn will be your pride and joy. Our team is always ready to advise you on how to correctly use this machine. If you have any questions, please do not hesitate to contact us. -
Page 10: Warranty Information
It is in your best interest to follow the user’s manual of the machine. Thorough care will ensure that the product will serve you well for many years. If necessary, always use the Swardman original spare parts. The warranty does not cover a damage resulting from using spare parts not manufactured or approved by Swardman. -
Page 11: Accessories And Manufacturer Information
Accessories and manufacturer information Removable cartridges Cylinder/reel (5, 6, 10 Verticutter cartridge Scarifier cartridge Rotary brush cartridge knives) Other accessories Grooved front roller Transport wheels Wheels for tall grass Cartridge holder Lawn hand tools Fork aerator Soil probe Set of hand tools... - Page 12 +420 774 365 599 Swardman, s.r.o. Czech Republic info@swardman.com www.swardman.com...
