SOUND STORM LABORATORIES
3451 Lunar Court, Oxnard CA 93030
TECHNICAL ASSISTANCE
www.soundstormlab.com/support
805-751-4855 Customer Service
0920
iPhone® is a trademark of Apple Inc., registered in the U.S. and other countries. Apple CarPlay is a trademark of Apple Inc. Sound Storm Laboratories is not a liated with Apple Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sound Storm Laboratories is under license.
Other trademarks and trade names are those of their respective owners.
Android Auto is a trademark of Google LLC.
Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with
safety and regulatory standards. Please note that the use of this product with iPhone may a ect wireless performance.

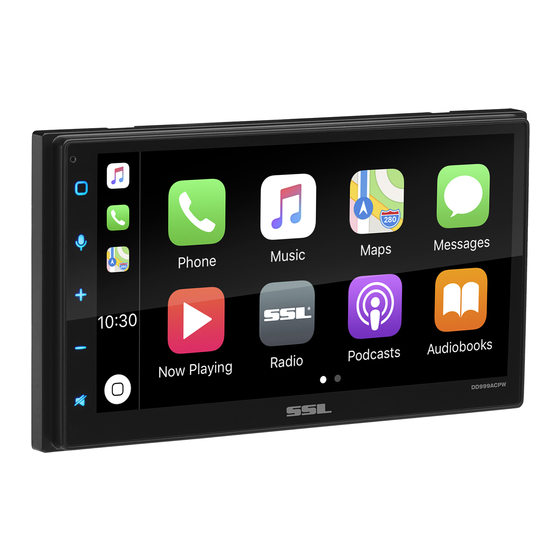

USER'S MANUAL
DD999ACPW
Wireless Apple CarPlay & Android Auto™
BLUETOOTH® | 320 WATTS | IN-DASH DOUBLE-DIN
FEATURING 6.75" (171 mm) CAPACITIVE TOUCHSCREEN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ssl DD999ACPW
Summary of Contents for Ssl DD999ACPW
- Page 1 USER’S MANUAL DD999ACPW Wireless Apple CarPlay & Android Auto™ SOUND STORM LABORATORIES BLUETOOTH® | 320 WATTS | IN-DASH DOUBLE-DIN 3451 Lunar Court, Oxnard CA 93030 FEATURING 6.75" (171 mm) CAPACITIVE TOUCHSCREEN TECHNICAL ASSISTANCE www.soundstormlab.com/support 805-751-4855 Customer Service 0920 iPhone® is a trademark of Apple Inc., registered in the U.S. and other countries. Apple CarPlay is a trademark of Apple Inc. Sound Storm Laboratories is not a liated with Apple Inc.
-
Page 3: Table Of Contents
Contents Contents............2-3 Android Auto..........17 Radio.............. 23 Notes..............4 Warnings............17 Tuning............23 FCC Statement..........5 Using Android Auto........17-18 Bands............. 23 Cautions............6-8 Bluetooth®............. 19 RBDS...............23 About this Manual........... 8 Setup & Connections........1 9 Aux-In.............24 California Prop. 65........... 8 Phone book........... 1 9 Playback............ -
Page 4: Contents
Contents Volume............25 Bluetooth® Settings........27 Source Level...........25 Bluetooth Device........... 27 Audio Effect........... 25 Apple CarPlay Device........27 Balance Fader..........26 Bluetooth Setting........... 27 General Settings..........26 Bluetooth Power..........27 Date & Time........... 26 Auto Connect..........27 Android Auto..........26 Auto Answer..........27 Camera Settings.......... -
Page 5: Notes
SIG, Inc. and any use of such marks by instructions/procedures. Failure to observe the SSL is under license. instructions/procedures can result in Other trademarks and trade names are those injury or damage to the product and or property. -
Page 6: Fcc Statement
Caution FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. - Page 7 Using this product in this condition may result in permanent damage to the system. InstallationPrecautions SSL does not recommend to install the product yourself. We recommend to have it professionally installed by a certified professional. Always consult with a professional installer .
- Page 8 Caution Before Installing To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
-
Page 9: About This Manual
Owner’s Manual. When using navigation Apps stay alert to observe real world conditions. About this manual To entirely understand how to properly use your new SSL product, it is recommended to read this entire user's manual, and keep it in a safe place for future reference. -
Page 10: Basic Product Operation
Basic Product Operation Control Details Microphone Power/Home Voice Recognition Volume Control Mute/Screen Off... - Page 11 Basic Product Operation Rear Details Apple CarPlay & Android Auto USB (2 A Charging) Power / Speaker *Lightning Cable Not Included Harness Steering Wheel Control Radio Antenna Input Input 15 Amp Mini-ATM Fuse GPS Antenna Input I/O Ports Hands-free Camera Input Microphone Camera Power Output Input...
-
Page 12: Product Basics
Basic Product Operation Power On /Standby Product Basics 1. Touch once to Power ON Power On /Standby 2. Touch and Hold for Standby 1. Touch once to Power ON NOTE 2. Touch and Hold for Standby Apple CarPly or Android Auto must be active NOTE In Standby Mode, the LED will slowly... -
Page 13: Using/Caring For The Touchscreen
Basic Product Operation Using and Caring for the Touch Screen Use: This head unit utilizes a Capacitive Touchscreen, the same type that is used on high-end mobile devices. It should be used for and cared for like that type of device. -
Page 14: Product Setup
Basic Product Operation Product Setup (Date & Time) Setup Option B: Date and Time Additional Setup see pg. 27 Setup Option A: Apple CarPlay Method Connect your Apple ® device using a Light- ning® cable*. The CarPlay USB port must General >... -
Page 15: Navigating The Menus
Basic Product Operation Navigating the Menus Radio Streaming Phone Media Front and Rear camera Settings Android Auto Apple CarPlay... -
Page 16: Apple Carplay
Apple CarPlay Using Apple CarPlay When using CarPlay, there is no need to pair 2.The iPhone will load the CarPlay your iPhone, the USB cable connected through function. NOTE the USB Port will enable this feature. 3.On the display, the CarPlay will If other devices are connected via Bluetooth, Apple CarPlay usage is limited while driving. -
Page 17: Apple Carplay Display
Wired and wireless Apple CarPlay Using CarPlay How to Disable Apps NOTE CarPlay Display Setup Using your iPhone: Only Apps with the icon can be 1. Using your iPhone: Settings >Screen time > Content & Privacy Restrictions removed from CarPlay. 2. -
Page 18: Android Auto
Wired and wireless Android Auto Using Android Auto Connecting to USB Port NOTE WARNING Connect the Android compatibledevice Android Auto usage is limited while driving. For your safety, the setup process must be via the appropriate USB cable Functions, contents, and usability is accomplished while the vehicle is parked and (not included). - Page 19 Android Auto Using Android Auto Android Auto Permissions Permissions Several features can be allowed or denied access to customize your usability of the product. The access can always be modified in Settings on the Android device.
-
Page 20: Bluetooth
Touch search to begin searching for devices Once paired and connected, the device list will Touch display the available Bluetooth profiles. Mobile Device: Search for SSL DD999ACPW_XXXX iOS Devices: Settings > Bluetooth Android Devices: Settings > Connections > Bluetooth Contacts and History... -
Page 21: Calling
To use the dial pad while on a call Auto Answer: OFF Contacts must be downloaded to search. Auto Download Phone book: OFF 1. Touch Touch Device Name: SSL DD999ACPW_XXXX Searching History For all settings see pg. 26 Swipe Up or Down to search... -
Page 22: Audio
To play media through Bluetooth, the mobile Playback access is also available through the Display device must be Paired and Connected to the Media Player SSL DD999ACPW_XXXX, see pg. 20. Track info will be displayed when available. Touch Touch Track, Album and Artist. -
Page 23: Media
Media USB Playback Navigating Menu WARNING Watching videos or photos while driving is Touch against Federal ,State, and Local laws. Touch Do not use features of this product if it cannot be operated safely and legally in your location. The music will play automatically. To browse contents Swipe NOTE Audio &... -
Page 24: Radio
Tuner FM/ AM Controls Return Touch To return to the main interface Touch Enter the Tuning Band Search < > Touch and Hold Swipe to quickly tuner To search for station Auto Search NOTE To change radio EQ To touch RBDS info (if available) and currently tuned Station will display on the radio icon in the For all EQs，... -
Page 25: Aux-In
AUX IN/CAMERA External Source Reverse View Playback (Audio Only) WARNING When the vehicle is put into reverse gear, the Never rely solely on the rear view camera; camera will display the image on the screen. always check your surroundings before Touch proceeding. -
Page 26: System Tone
Settings Audio System Tone Balance/Fader Touch < > To adjust the EQ bands < > , Touch Left/Right Balance Touch Default Setting: OFF Volume Swipe for quick adjustment Loud Settings are for default volumes for Hands-free. Media Player is a global setting for media. Enhances and gently boosts low and high freq. -
Page 27: General Settings
Settings General Date & Time Radio off after 1min Touch Time Zone Delay 1minute ACC OFF Touch Adjust to correctly display time Default Setting: OFF Default Setting: (GMT-05:00) Eastern Time (US) Camera Settings Default Setting: OFF Retain ACC Power Date Camera Trigger Retain 1sec、2sec、3sec ACC OFF <... -
Page 28: Display Settings
Settings Illumination Device Day Brightness LED Animation < > Bluetooth Setting Touch Touch Bluetooth Power Touch Will cycle through all colors on LED Adjust day mode brightness value touch buttons. Default Setting: ON Night Brightness Power On/Off Bluetooth < > LED Color Default Setting: ON Touch... -
Page 29: Auto Download Phone Book
European Spacing: FM (50 KHz), AM (9 KHz) The radio will automatically tune in to traffic ： Default name information broadcasts while receiving FM SSL DD999ACPW_XXXX RBDS, Radio Broadcast Data System broadcasts playing media. Default Setting: OFF Touch Reset wifi password:... -
Page 30: About Settings
Settings About Displays the system information: Hardware Version Software Version Bluetooth Version BT MAC Serial Number USB NCM MAC NOTE Software version information depends on the software used for production... -
Page 31: Troubleshooting
Troubleshooting Cause Solution Issues No Sound Internal amplifier is off Go to Settings > Audio Product is muted Touch the volume. External amplifiers Check the external amplifiers are on. Audio source Change the audio source Media Not Supported Media on USB flash drive Change the media format on the USB device Change the USB device Bad Radio Reception... - Page 32 Microphone Microphone needs to be firmly attached to location it’s mounted on. Check to see if microphone is properly plugged in. If you have questions about this product: Customer Service 805-751-4855 M-F 8:30a-5:00p (PST) Technical Support:www.soundstormlab.com/support © 2020 SSL DD999ACPW...
-
Page 33: Specifications
Specifications General Audio Android Auto Power Input......10.8 V-16 V DC Pre-amp Output........... 4.1 Supported....(8.0) Lollipop or Newer Nominal........14.4 V DC Front......2V, Full-Range Current Consumption......10 A (Max) Rear......2V, Full-Range USB Spec......USB 2.0 (High-Speed) Fuse Type.........15 A, Mini- Sub (Mono)......
