Summary of Contents for Stagg BAT XS

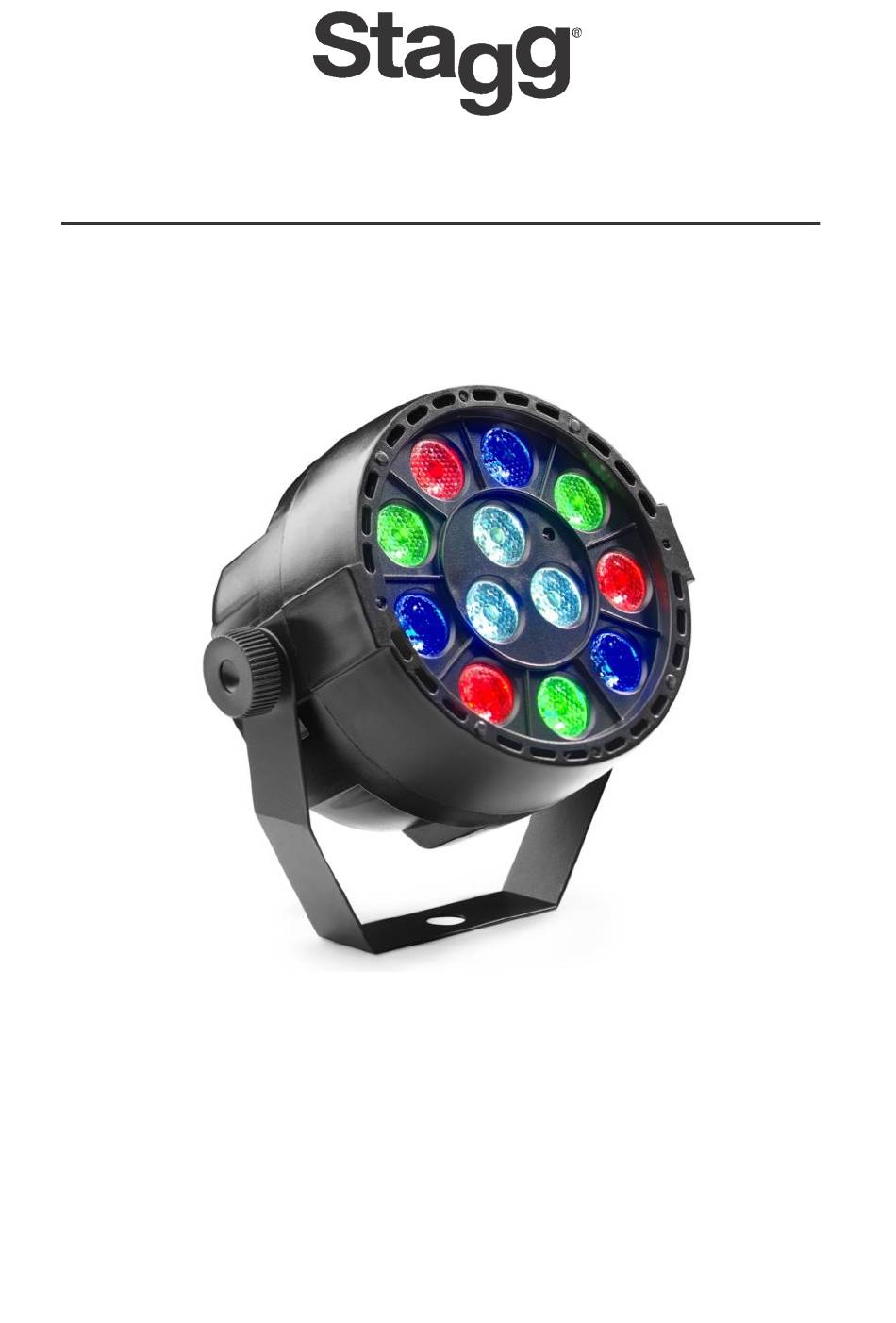

- Page 1 USER MANUAL BAT XS SLI-BAT XS Please read the instructions carefully before use...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... - Page 3 • Do not operate in a dirty or dusty environment. Clean fixtures regularly. • Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. •...
-
Page 4: Installation
RECHARGABLE BATTERY The unit’s battery life depends on the operating mode and on the ambient temperature. Low temperatures will reduce the run time considerably. Before using the unit for the first time, completely charge the battery for up to 8 hours. -
Page 5: Technical Specifications
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support 10 times the unit’s weight. -
Page 6: Setting Up The Device
SETTING UP THE DEVICE... - Page 7 Then use the up and down buttons to choose the desired DMX channel (1 – 512) and press the enter key to confirm. Press the menu button to return to the main menu. The BAT XS uses 8 DMX channels. Channel Value...
- Page 8 A3.01 to A3.19 and press the enter key to confirm. You can now select the speed of the sequence from 01 to 32 In this mode, the BAT XS will play various sequences of colours with a pulse/fade effect.
- Page 9 Colour mode: With the menu button, select the Red (rxxx) Green (gxxx) blue (bxxx) or white (Uxxx) and press the enter key to confirm. Then use the up and down buttons to increase or decrease the colour amount (from 001 to 255). Thanks to this colour mixing mode, you can choose virtually all the desired fixed colours.
-
Page 10: Dmx512 Connections
Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). FIXTURE CLEANING An internal cleaning must be carried out periodically to optimize the light output. The... - Page 11 For more info and the latest product updates: staggmusic.com EMD Music S.A. Boulevard Général Wahis 16A 1030 Brussels Belgium 05/2018...
