Summary of Contents for APTO 6000-0032-5008

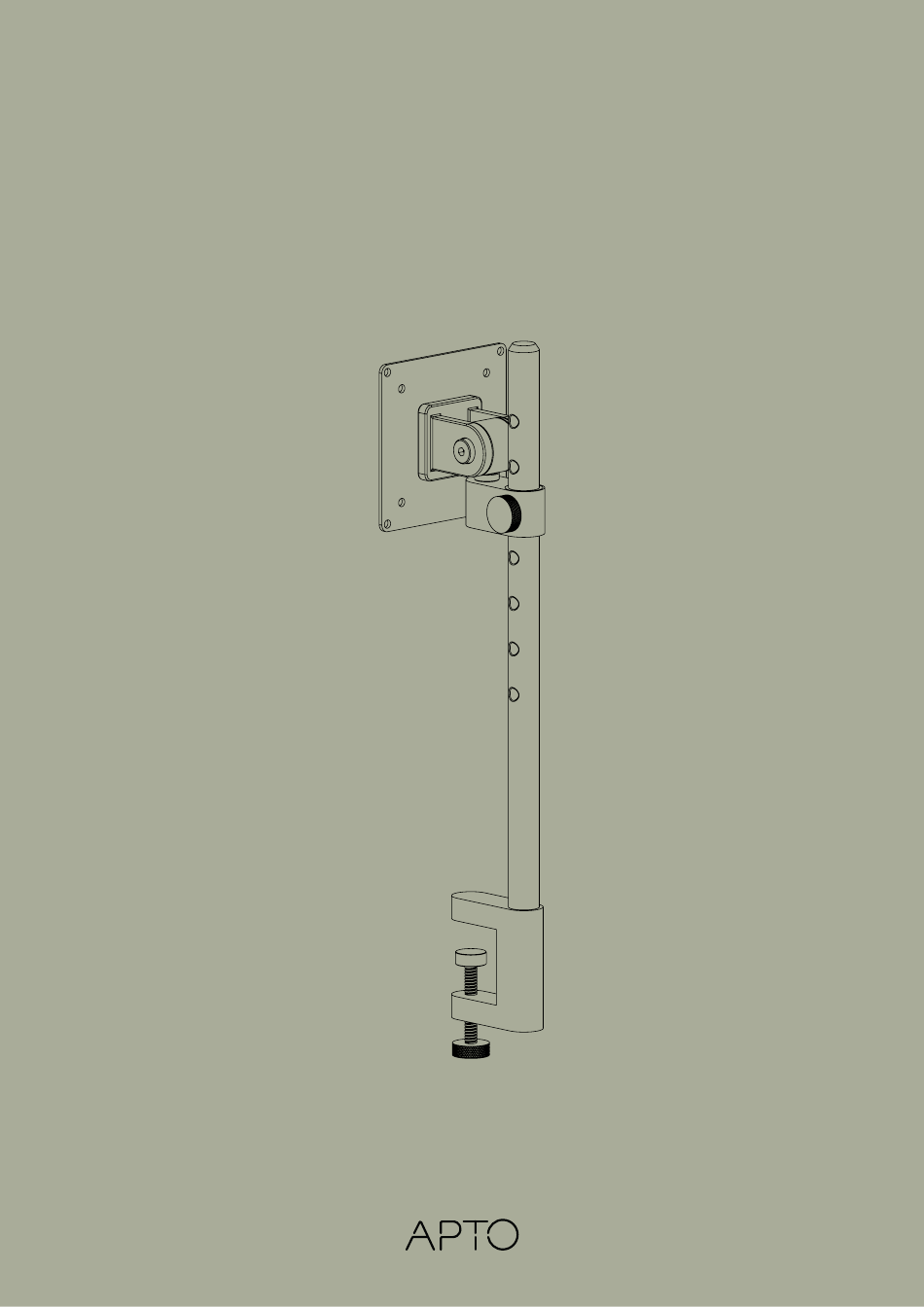

- Page 1 INSTRUCTION MANUAL MONITOR HOLDER DESIGNED BY PJ PRODUCTION & HANS THYGE & CO Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 2 1 x VESA 1 x cable clip MONITOR HOLDER Nordic Dark Blue: 6000-0032-5008 Danish Dusty Green: 6000-0032-7033 Scandinavian Matte Black: 6000-0032-9000 Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk...
-
Page 3: What You Will Need
INSTRUCTION MANUAL WHAT YOU WILL NEED 1 x MULTI CLAMP Nordic Dark Blue: 6000-0000-5008 Danish Dusty Green: 6000-0000-7033 Scandinavian Matte Black: 6000-0000-9000 1 x SCREWDRIVER 1 x ALLEN WRENCH 4 x SCREWS One screwdriver. Please note that this is not The Allen wrench is included in the multi Four size fitting screws for the VESA. - Page 4 INSTRUCTION MANUAL STEP 1 Carefully connect the monitorarm and the holder Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 5 INSTRUCTION MANUAL STEP 2 Carefully lead the tube through the hole at the top of the multi clamp Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 6 INSTRUCTION MANUAL STEP 3 The finger screw must be open entirely before continuing. Now carefully insert the tip of the Allen wrench into the hexagon cross section of the socket screw and turn the wrench in a clockwise fashion until the socket screw has been sufficiently tightened. Designed by PJ Production &...
- Page 7 INSTRUCTION MANUAL STEP 4 The monitor holder can now be attached to the prefered surface. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 8 INSTRUCTION MANUAL STEP 5 When the placement of the monitor holder is correctly, then tighten the finger screw completely. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 9 INSTRUCTION MANUAL STEP 6 The VESA must be aligned with the display before continuing. Now connect the VESA and display with four size fitting screws. When these are connected, carefully insert the tip of the screwdriver into the hexogon cross section of the screw and turn the screwdriver in a clockwise fashion until the screw has been sufficiently tightened.
- Page 10 INSTRUCTION MANUAL STEP 7 Carefully lead the VESA through the monitor holder’s adjustment system. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 11 INSTRUCTION MANUAL STEP 8 Use the enclosed cable clip to control wires and cables from the display. Designed by PJ Production & Hans Thyge & Co // Hårup Skovvej 2, 8600 Silkeborg, Danmark // + 45 86 81 23 75 // www.aptocollection.dk Copyright ©...
- Page 12 Hårup Skovvej 2, 8600 Silkeborg, Danmark + 45 86 81 23 75 // www.aptocollection.dk D A N I S H D E S I G N Copyright ©...
