User manual of FX-02

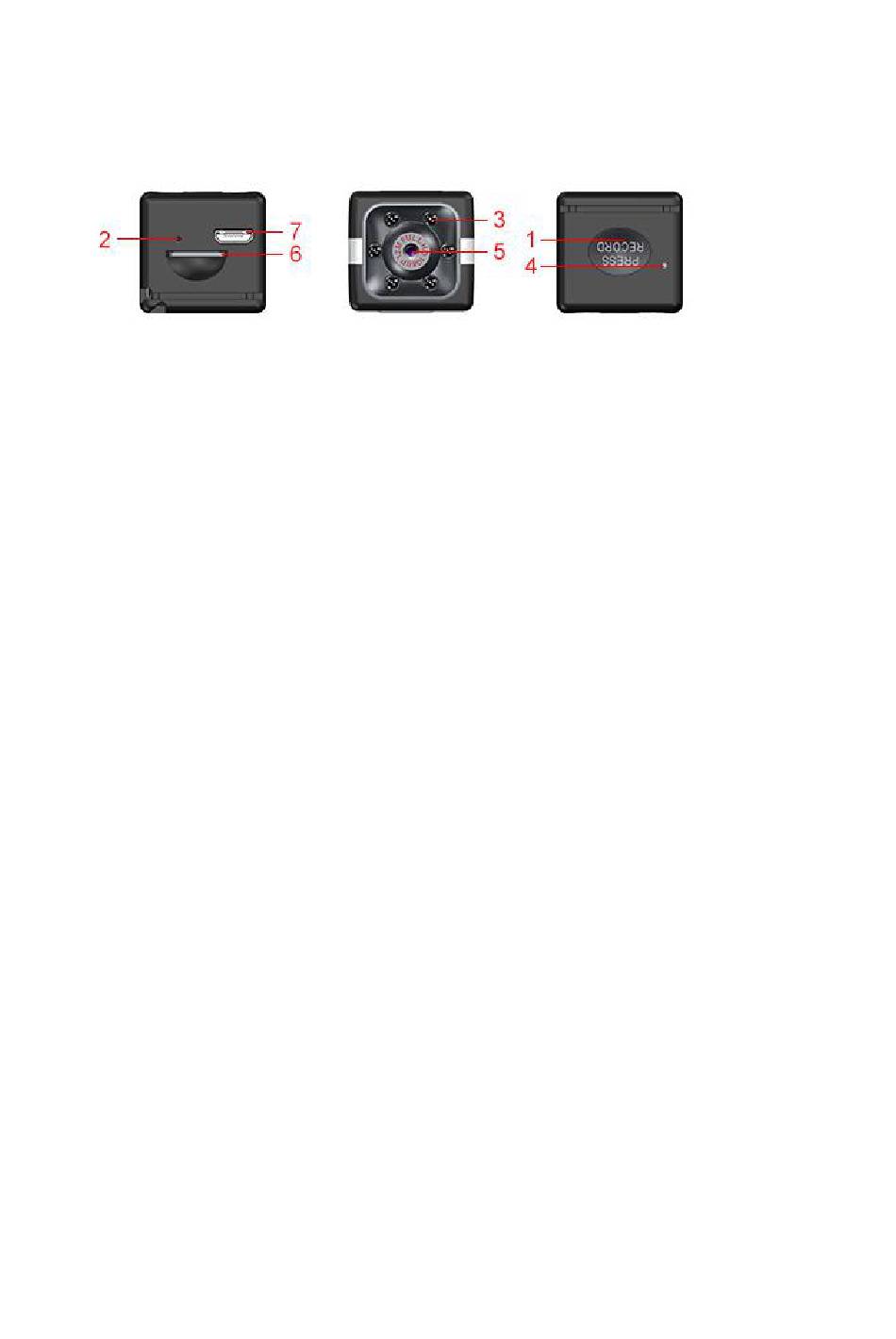

1.On/Off Button 2. Reset button 3. Infrared night vision light
4. Indicator 5. HD camera 6. Micro TF card slot 7.USB Port
Features
.High quality image HD FULL HD1080P DV DC
. Imported HD lens
. Compact form factor, portable handheld DV DC
. High-definition video recording in low light
. The video format is: 1920*1080P
. Photo mode is: 12M (4032*3024)
. Motion detection recording: 1080P
. USB interface for high speed transmission
. Supports up to 64G T-flash card
. Built-in lithium battery for up to 60 minutes
Operation guide
Charging:
This camera has a built-in rechargeable lithium battery. When using the
unit for the first time, please charge it first. You can charge it in the
following ways.
Connect the computer to charge and connect to the computer using USB
cable.
The red light flashes when the power is on, and the red light is long after
the battery is fully charged.
note
1. When the battery is low, when the TF card is recorded, the DV red and
blue lights will flash off for 5 seconds and then directly shut down to
enter the protection state, save the file and automatically shut down. At
this time, please charge the unit.
2.There is no card at boot, and the red and blue lights are automatically
turned off at the same time for 5 seconds.
Advertisement
Table of Contents
Related Manuals for Sunsky FX-02
Summary of Contents for Sunsky FX-02
- Page 1 User manual of FX-02 1.On/Off Button 2. Reset button 3. Infrared night vision light 4. Indicator 5. HD camera 6. Micro TF card slot 7.USB Port Features .High quality image HD FULL HD1080P DV DC . Imported HD lens . Compact form factor, portable handheld DV DC .
- Page 2 3.After the power on, there is no working mode in standby mode, and it will automatically shut down in 1 minute. Recording while charging, you can record or charge (external USB 5V charger or charging treasure) 1080P video does not flash Click the button to turn on the key for three seconds, the blue light is on, enter the camera and video standby mode, press and hold the blue light for 3 seconds to stop recording.
- Page 3 seconds, the blue light flashes three times to enter the side charge recording. The video files recorded while charging are automatically saved every 5 minutes, and the loop is overwritten. You can also click the on button to pause the recording and automatically switch to the charging mode without operating for one minute.
- Page 4 red indicator light flashes for charging. The long red light indicates that it is fully charged. a. If the computer is not recognized after connecting the computer, or The removable disk ID has not been ejected after 30 seconds, please reset e-plug once.
- Page 5 Photographic illumination: Please use it in an environment with sufficient light source. Do not point the camera directly at a strong light source such as the sun to avoid damage to the optics. Cleaning requirements: Do not use in an environment with excessive dust density, so as to avoid dust on the lens and other components, affecting the camera effect.
