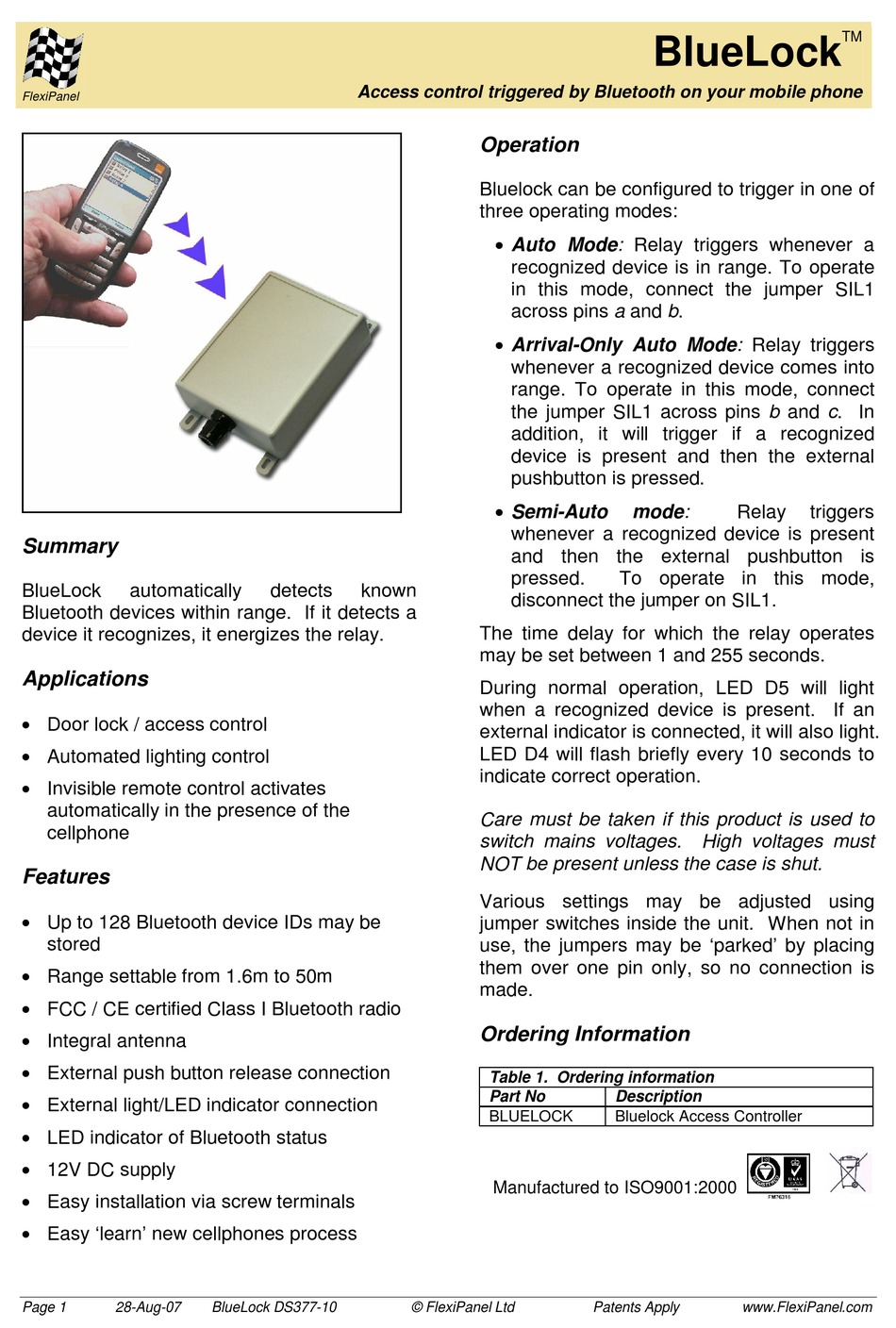

RF SOLUTIONS FlexiPanel BlueLock Manual

FlexiPanel
Summary
BlueLock automatically
Bluetooth devices within range. If it detects a
device it recognizes, it energizes the relay.
Applications
 Door lock / access control
 Automated lighting control
 Invisible remote control activates
automatically in the presence of the
cellphone
Features
 Up to 128 Bluetooth device IDs may be
stored
 Range settable from 1.6m to 50m
 FCC / CE certified Class I Bluetooth radio
 Integral antenna
 External push button release connection
 External light/LED indicator connection
 LED indicator of Bluetooth status
 12V DC supply
 Easy installation via screw terminals
 Easy 'learn' new cellphones process
Page 1 28-Aug-07
Access control triggered by Bluetooth on your mobile phone
detects known
BlueLock DS377-10
Operation
Bluelock can be configured to trigger in one of
three operating modes:
 Auto Mode: Relay triggers whenever a
recognized device is in range. To operate
in this mode, connect the jumper SIL1
across pins a and b.
 Arrival-Only Auto Mode: Relay triggers
whenever a recognized device comes into
range. To operate in this mode, connect
the jumper SIL1 across pins b and c. In
addition, it will trigger if a recognized
device is present and then the external
pushbutton is pressed.
 Semi-Auto
whenever a recognized device is present
and then the external pushbutton is
pressed.
disconnect the jumper on SIL1.
The time delay for which the relay operates
may be set between 1 and 255 seconds.
During normal operation, LED D5 will light
when a recognized device is present. If an
external indicator is connected, it will also light.
LED D4 will flash briefly every 10 seconds to
indicate correct operation.
Care must be taken if this product is used to
switch mains voltages. High voltages must
NOT be present unless the case is shut.
Various settings may be adjusted using
jumper switches inside the unit. When not in
use, the jumpers may be 'parked' by placing
them over one pin only, so no connection is
made.
Ordering Information
Table 1. Ordering information
Part No
BLUELOCK
Manufactured to ISO9001:2000
© FlexiPanel Ltd
BlueLock
mode: Relay
To operate in this mode,
Description
Bluelock Access Controller
Patents Apply www.FlexiPanel.com
TM
triggers
