Summary of Contents for Sutcliffe Play TNB060

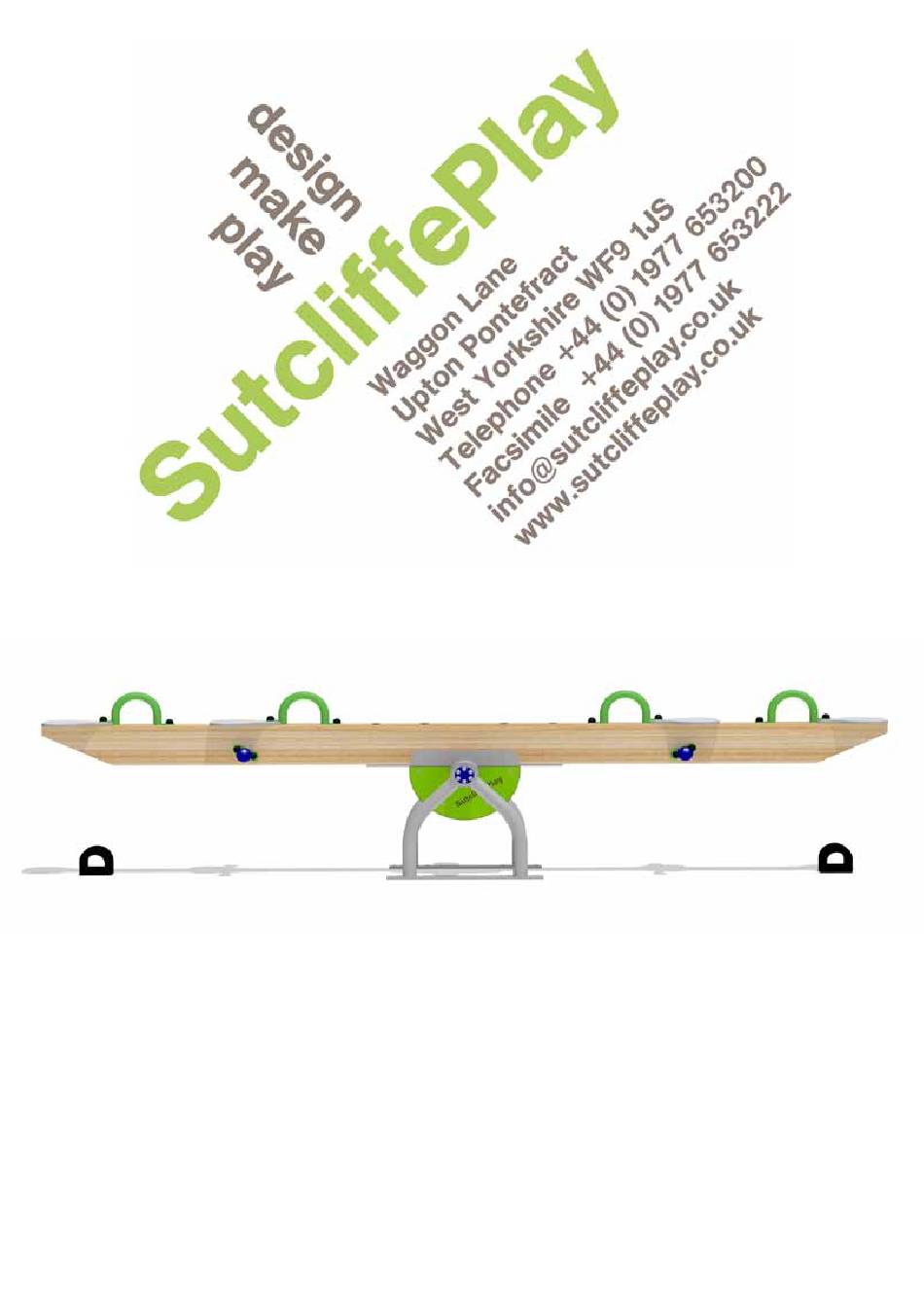

- Page 1 Treetops Seesaw Installation Instructions TNB060 Rev 00 Page 1...
- Page 2 TNB060 Treetops Seesaw Installation Instructions Check using the Parts List that none of the components are missing. Plan the final position of the play equipment ensuring there is sufficient space. Excavate the foundation holes in accordance with the plan. Sort and identify parts before assembly.
- Page 3 TNB060 Treetops Seesaw Parts List Description TNB061 Seesaw Plank TNB064 Upper Seesaw Body THF078ZP Square Spindle TNB066 Lower Seesaw Body TNB069 Seesaw Ground Fixing PED007 Bump Stop Ground Fixing TNB001D Rubber Bump Stops TNB063 HDPE Seat TNB062 Seesaw Handles BRG122...
- Page 4 TNB060 Treetops Seesaw Installation Instructions TNB001D HHB520 (M10 x 55 HEX HEAD BOLT) WSR040 (M10 PLAIN WASHER) LKN320 (M10 NYLOC NUT) PED007 ORS002 RUBBER BUNG HHB744 (M16 x 180 HEX HEAD BOLT) WSR190 (M16 PLAIN WASHER) LKN340 (M16 NYLOC NUT)
- Page 5 TNB060 Treetops Seesaw Installation Instructions MCS321 (M10 x 35 COUNTERSUNK BOLT) Rev 00 Page 5...
- Page 6 TNB060 Treetops Seesaw Installation Instructions TNB068 MCS306 (M10 x 20 COUNTERSUNK BOLT) FIX155 (M10 x 30 WSR420 (M10 WSR040 (M10 SECURITY BOLT) SERRATED WASHER) PLAIN WASHER) Rev 00 Page 6...
- Page 7 TNB060 Treetops Seesaw Installation Instructions WDS450 (12 x 2" CSK POZI SCREW) HSS550ST (M10 x 100 COACH SCREW) WSR040 (M10 PLAIN WASHER) DZS009 (M10 STEP WASHER) HSS540 (M10 x 50 COACH SCREW) DZS005 (NUT COVER) FIX205 (NUT COVER GLUE INTO PLACE)
- Page 8 TNB060 Treetops Seesaw Maintenance Instructions NOTE The warranty is invalidated if these instructions are not followed. All wood needs annual inspection and retreatment where required. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required.
