MPI Himax HG2015 Series Manual

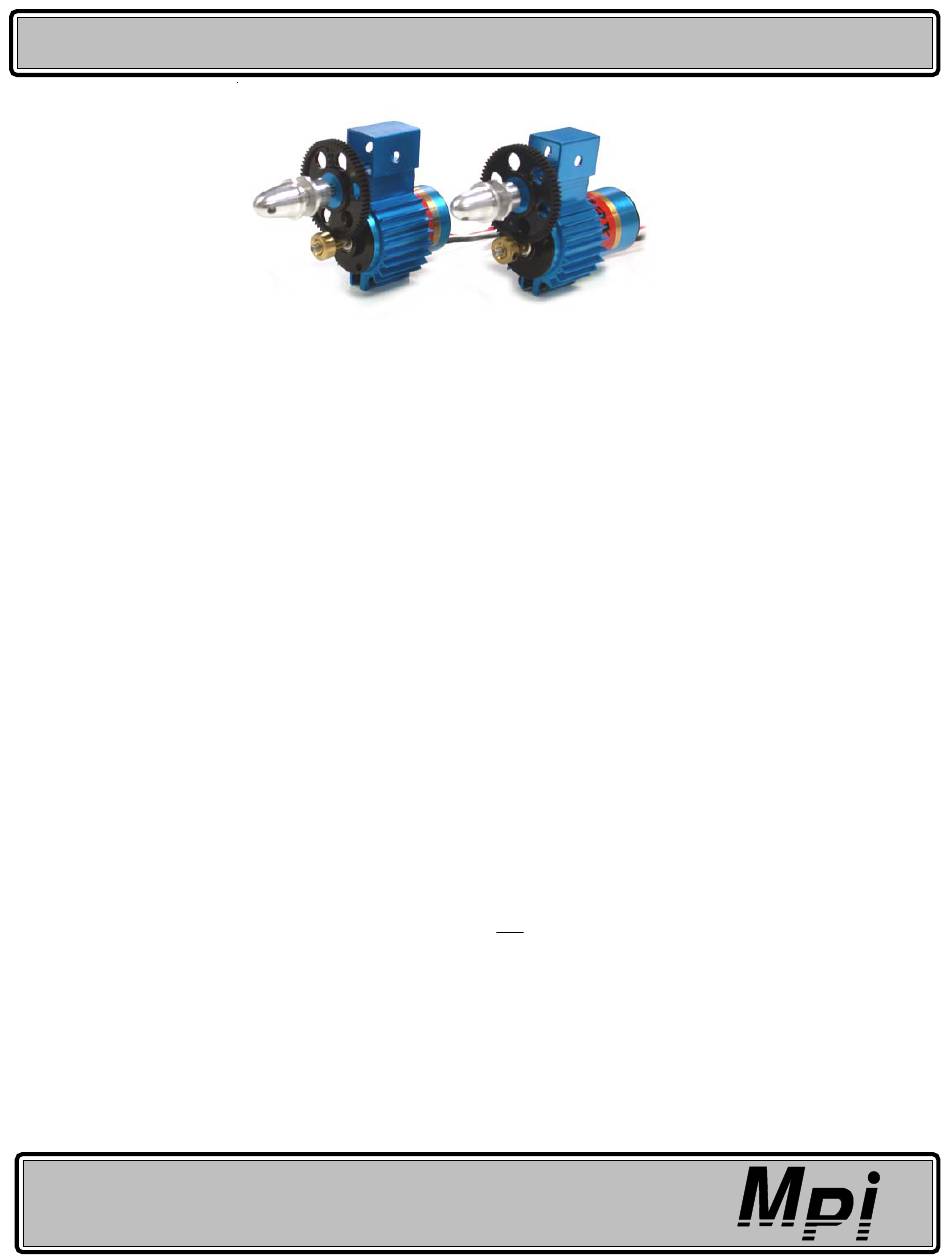

HG2015 Series
HG2015-3666
HG2015-4166
HG2015-5466
Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for lightweight, high efficiency,
and durability these Himax motors are sure to make today's radio controlled models perform. Please read the entire operating manual
to ensure correct functionality and best performance. The HG2015 and HG2025 series is made for small models from 8 ounces up to
approximately 30 ounces.

Features:

High Efficiency, High Power, Lightweight, Replaces 280-370-400 motor

Specifications:

Weight: HG2015-xx66 64g(2.3oz), HG2025-xx66 82g(2.9oz)
Max Power: HG2015-xx66 110W, HG2025-xx66 175W
Gear Ratio: 4.43:1, 5.33:1, 6.6:1 included
Max Motor RPM: 60,000 RPM
Shaft Size: 3.0mm, (.118")
Mounting: 10 x 10mm square stick mount
Maximum Motor Case Temperature: 100

Electrical Specifications:

HA2015-5400 Kv = 5400, Rm = .120, Io = 1.0, Efficient Operating Current = 6-15A
HA2015-4100 Kv = 4100, Rm = .141, Io = .80, Efficient Operating Current = 5-12A
HA2015-3600 Kv = 3600, Rm = .295, Io = .54, Efficient Operating Current = 3-8A
HA2015-2800 Kv = 2800, Rm = .355, Io = .40, Efficient Operating Current = 2-7A
HA2025-5300 Kv = 5300, Rm = .044, Io = 1.4, Efficient Operating Current = 15-25A
HA2025-4200 Kv = 4200, Rm = .075, Io = .75, Efficient Operating Current = 10-20A
HA2025-3200 Kv = 3200, Rm = .144, Io = .53, Efficient Operating Current = 6-15A
HA2025-2700 Kv = 2700, Rm = .169, Io = .47, Efficient Operating Current = 5-12A

Operation:

1. Himax Brushless motors require brushless sensorless speed controls.
control (ESC) can result in damage to the motor and/or ESC. A Castle Creations Phoenix series ESC is recommended for best
performance. The standard setting for timing advance is recommended for best operation.
2. The three wires of the motor can be connected to the three output leads of the ESC in any order. Check the direction of rotation of
the motor. If the motor spins in the wrong direction switching any two of the motor wires will reverse rotation. Be sure to insulate
the wires to prevent shorting which may damage the ESC.
3. Do not shorten the motor wires. Shortening or cutting the motor wires voids the warranty and may cause motor failure. If the
supplied connectors are not to be used, remove them by desoldering. DO NOT CUT THE CONNECTORS OFF!
4. Allow for proper cooling of the motor during operation. With extremely high capacity batteries, care must be taken to prevent
excessive motor temperature. Overheating of the motor is not covered under warranty. Insufficient cooling can result in overheated
motors, even when operated at moderate power levels.
5. Do not disassemble the motor. Disassembling the motor voids the warranty. If service is required please return the unit to Maxx
Products for service.
6. Install the propeller after proper rotation has been determined.
procedures. Be sure the prop is clear before starting the motor. Once the battery is plugged in stay clear of the prop, electric motors
are capable of extremely high torque and can be very dangerous.
