Summary of Contents for Sanosil Q-Jet C10

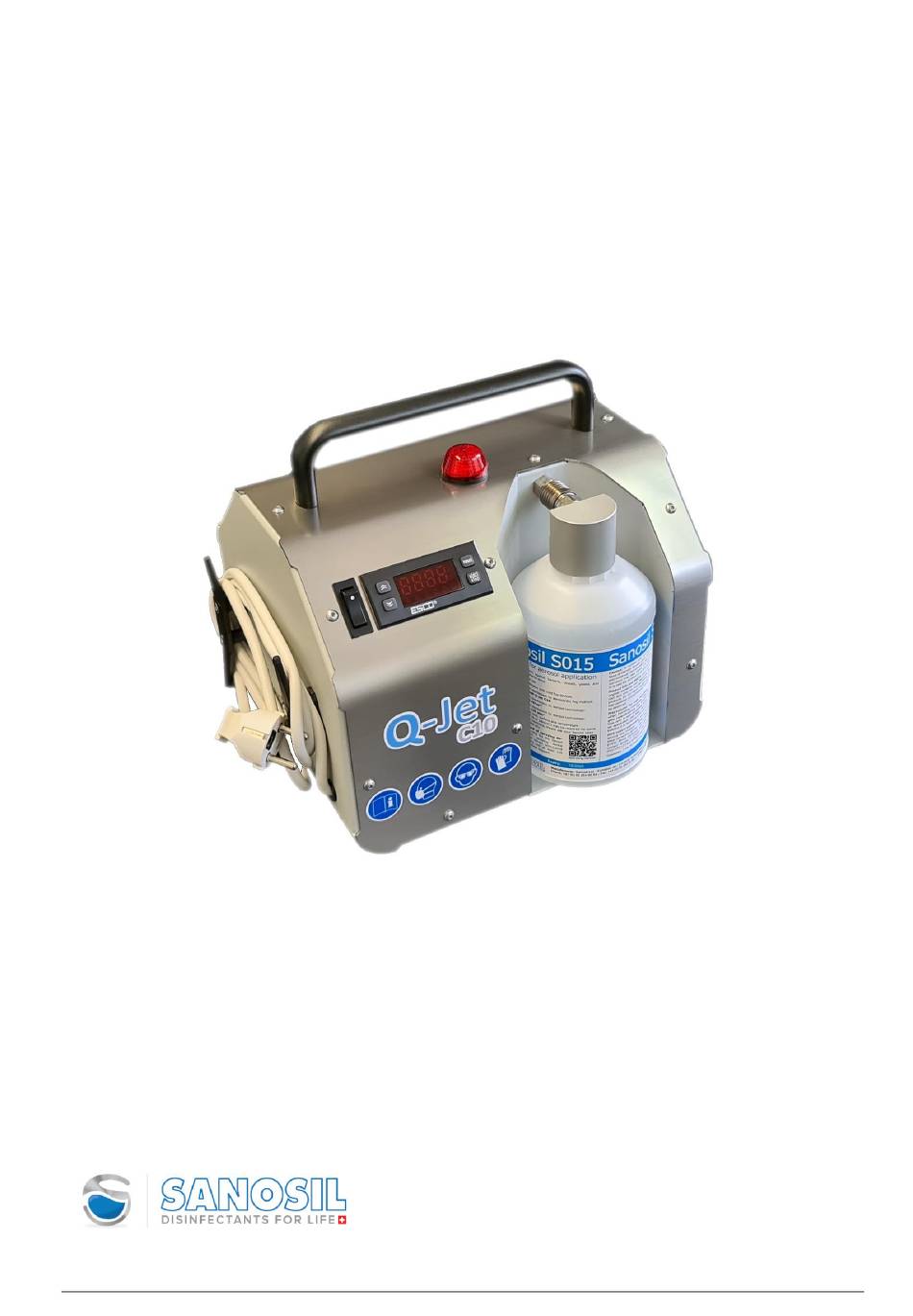

- Page 1 Sanosil Q-Jet C10 Operating Manual SANOSIL AG CH- 8634 Hombrechtikon Schweiz E-Mail: info@sanosil.com Internet: www.sanosil.com Des M03 – operating manual Q-Jet C10 1/20...
- Page 2 Sanosil Q-Jet C10 Operating Manual Des M03 – operating manual Q-Jet C10 2/20...
-
Page 3: Table Of Contents
Power Connection and Switch on the device Programming the device and start fogging Door sealing and attaching the warning information Re-entering procedure and using the room Maintenance Troubleshooting Warranty Disposal and Decommissioning Des M03 – operating manual Q-Jet C10 3/20... -
Page 4: Description Of The Device

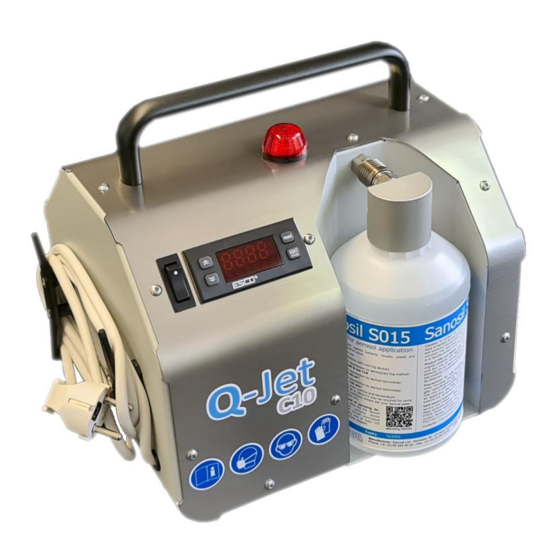

Operating Manual 1. Description of the device The Sanosil Q-Jet C10 is a device for airborne room disinfection by an automated process. By using the compressor / fine nozzle technology, the device is optimally suited for the 3D aerosol disinfection of small rooms and vehicles (such as ambulances, buses, trams etc.) up to a volume of max. -
Page 5: Parts And Functions
10. Fine mist nozzle 4. Control panel 11. Ventilation and compressor cooler openings 5. Power cord 12. Dosing table 6. Fluid connection coupling 13. Power cord holder 7. Fluid tank / Sanosil Disinfectant Des M03 – operating manual Q-Jet C10 5/20... -
Page 6: General Security And Safety Rules
Disregard can lead to medium or light injuries or damages! 3.2. Intended Usage • The device is a nebulizer to be used for indoor applications with Sanosil disinfectants only and a maxi- mal Hydrogen Peroxide content of 7.5%. • Its purpose is to transform the used disinfection liquid into smallest particles and to nebulize them into a room, thus leading to the consistent disinfection of all uncovered surfaces (whole room disinfection) inside the room. -
Page 7: Danger And Caution Warnings
The users must always have a copy of this Operation Manual at their disposal when operating the device and have read and understood all specific indications stated on the label of the Sanosil disinfectant used. 3.6. Disclaimer Sanosil declines any claims for damages or warranty claims if: •... -
Page 8: Important Safety Directions
Sanosil Ltd. is not responsible for any injury or damage caused by using this device outside of the specific parameters detailed in this manual. Store in a safe, dry location. Do no place anything on top of the device. Store in an upright position. -
Page 9: Whole Room Disinfection Variants
Advantages: Time consumption: 2-5 hours (depends on the room size, humidity and the decomposition time of hydrogen peroxide in the treated room), Sanosil Q-jet C10 and room can be re-used faster Disadvantages: Needs measuring of the H level for security reasons. -
Page 10: Room Preparations Prior Room Disinfection
At the same time, the required disinfectant concentration in the air will not be reached in the room to be treated. Des M03 – operating manual Q-Jet C10 10/20... -
Page 11: Positioning / Room Volume / Determining The Dosage
• Minimum distance between Q-Jet C10 and closest object (wall, door etc.): 2 m If the distance falls below the minimum distance, the Sanosil Disinfectant mist may condense on the surface and cause dark discoloration over time. •... -
Page 12: Establish Nebulization Time
40:00 * Not recommended please choose other volume per min. ** Higher concentrations of 16 or 24ml/m3 may be required for some microorganisms or room conditions. Please ask your Sanosil sales representatives for detailed info. CAUTION Risk of improper disinfection A initial humidity <... -
Page 13: Introducing Of The Control Elements
6. “Start/Stop” button Sanosil Q-Jet C10 programming display is simple and reliable way to operate the fogger. Please be aware that after turning on the device last program is being executed right away. This can be seen by counting down the preset time delay. -
Page 14: Prepare The Device For Operation
Remove tank bottle • Open the tank bottle by unscrewing the connector • Fill up to 850 ml Sanosil Disinfectant into the tank bottle • Close the tank bottle by screwing on the connector • Put the full tank back into the device and connect it to the intake manifold. -
Page 15: Programming The Device And Start Fogging
(PPE) including wraparound style goggles; respirator mask (filter class ABE1) filtering hydrogen peroxide (for example: 3M 4277 or 3M 7500 mask with 6057 filter) and gloves should be worn to safely enter the room. Des M03 – operating manual Q-Jet C10 15/20... -
Page 16: Door Sealing And Attaching The Warning Information
The disinfected room can only be entered without protection equipment if the H -Value is below the local maximum permissible value specified by the authorities. Des M03 – operating manual Q-Jet C10 16/20... -
Page 17: Maintenance
Observe all safety indications stated above. CAUTION Risk of Injuries! Always wear gloves and safety googles when operating on the nozzle, bottle or tubes! Do not overfill bottle or spill around Sanosil Disinfectants! Group/Component Operation Cycle Device in general... -
Page 18: Troubleshooting
Operating Manual 13. Troubleshooting CAUTION Risk of Injuries! Always wear gloves and safety googles when operating on the nozzle, bottle or tubes! Do not overfill bottle or spill around Sanosil Disinfectants! Trouble Possible cause Possible Solution • Check power supply •... -
Page 19: Warranty
3. Sanosil Ltd will check the complaint with its manufacturer and decide whether the device must be re- turned to Switzerland or whether the device can be repaired on site by sending spare parts by the Sanosil representative or his authorized repair centre. -
Page 20: Disposal And Decommissioning
Within the European Union the devices marked with the symbol below may there- fore not be disposed of together with unsorted municipal waste: Please check with your local authorities for proper disposal. SANOSIL AG CH- 8634 Hombrechtikon Schweiz E-Mail: info@sanosil.com Internet: www.sanosil.com Des M03 – operating manual Q-Jet C10 20/20...
