READ THIS DOCUMENT BEFORE YOU BEGIN
Thank you for purchasing the 24 planter NFT hydroponic system. When properly assembled and
maintained, this system will provide years of reliable service. These instructions include helpful hints and
important information needed to safely assemble and properly maintain the system. Please read these
instructions before you begin.
If you have any questions during the assembly, contact Customer Service at +91 77859 77859 for
assistance.
UNPACK AND IDENTIFY PARTS
1. Unpack the contents of the shipment and place where you can easily inventory the parts. Refer to the
Bill of Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec Sheets are present. If anything is missing or you
have questions, consult the Pictorial Parts Guide and all diagrams for clarification, or contact Customer
Service.
PICTORIAL GUIDE
The following graphics and photos will help identify different parts of the NFT hydroponic system. (Some
parts may not be shown)

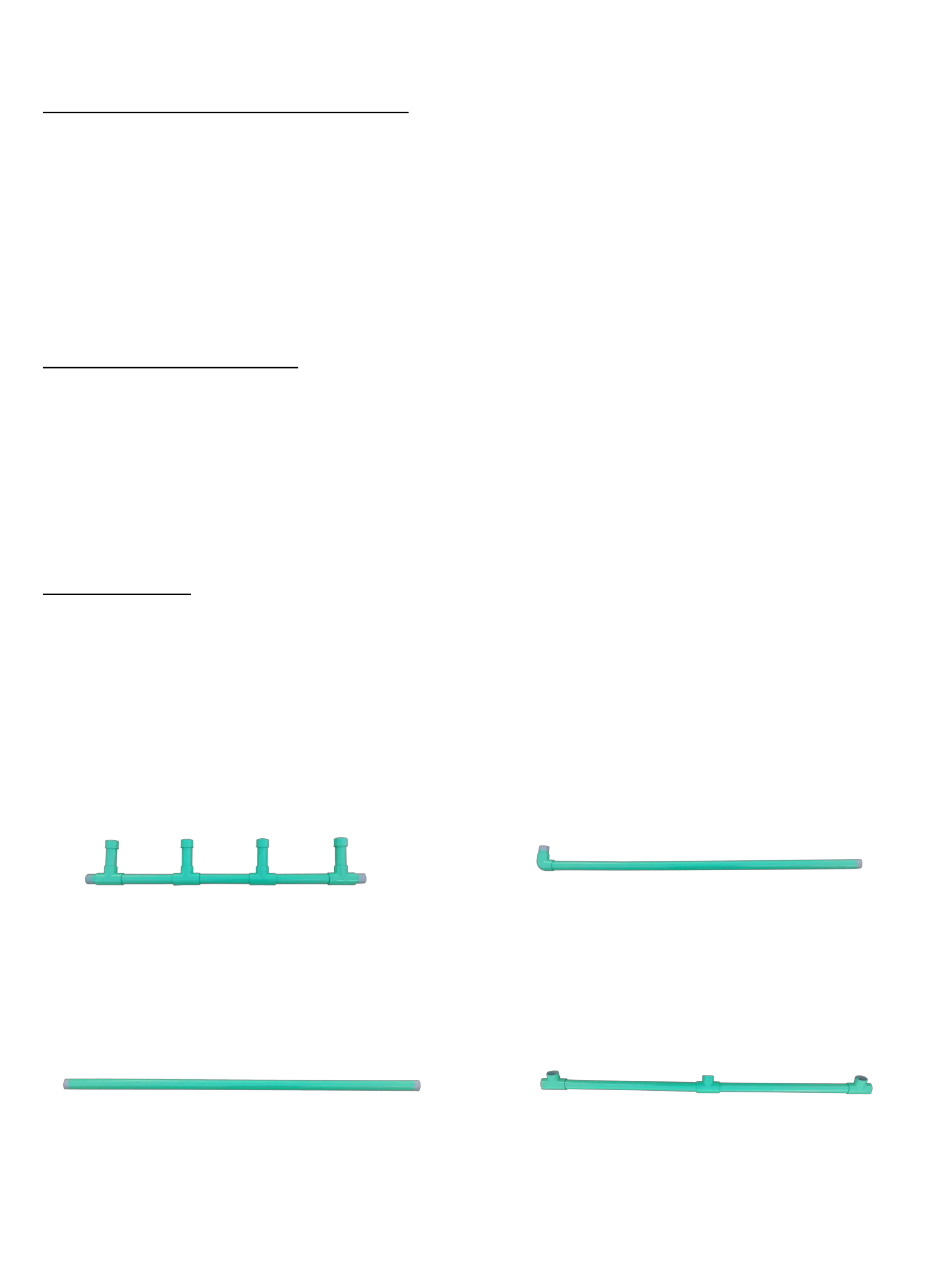

1) Pipe with 4 T connectors Qty - 2
3) Long Pipe
Installation Manual: '24 Planter' NFT structure system
2) Long Pipe with Elbow Connector qty -2
4) Long Pipe with 3 T connectors Qty -2
