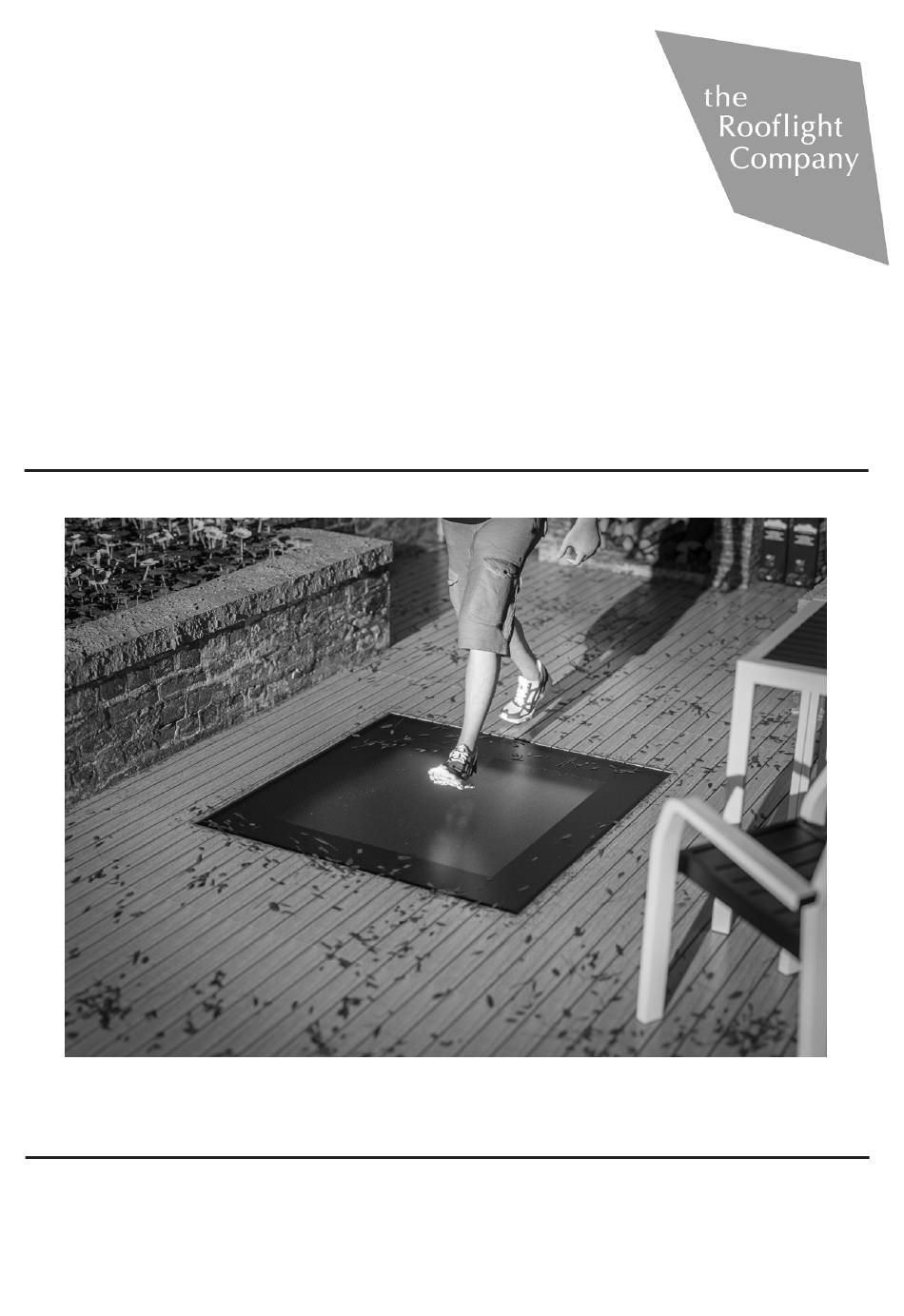

- Page 1 Installation Guide neo Advance Skywalk Rooflight LA032-A Form QD334 Revision 1 Date Created May 21 Last Reviewed June 21 www.therooflightcompany.co.uk info@therooflightcompany.co.uk | 01993 833155 Trusted by architects, respected by builders, loved by homeowners.
-
Page 2: Care And Maintenance
Thank you for choosing the neo Advance Skywalk™ rooflight, we are sure it will provide a high-quality finishing touch to your project. This is a step by step guide to installing the neo Advance Skywalk™ and neo Advance Skywalk™ + walk-on rooflights. -
Page 3: What's In The Box
WHAT’S IN THE BOX WHAT’S IN THE BOX Inside the box you will find your neo Advance Skywalk™ rooflight, the rooflight fixing kit and a printed copy of this installation manual. Ensure you check the rooflight for any damage PRIOR to commencing the installation. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS DECLARED PRODUCT PERFORMANCE Tested to Category A1 of UK National Annex Table NA.2 of BS EN 1991-1-1:2002 (Eurocode 1: Actions on structures – Part 1-1: General actions – Densities, self-weight, imposed loads for buildings) – where: Maximum uniformly distributed load (UDL) = 1.5kN/m ²... -
Page 5: Safety Notices
SAFETY NOTICES Danger of death. Do not use the neo Advance Skywalk™ if the glazing is broken. Should glass breakage occur cease use immediately and ensure no further usage of the product can take place. Contact the Rooflight Company for remedial support on +44(0)1993 830 613. - Page 6 Step 1 - Preparing the structure 1a. Prepare the roof structure and opening to your Deck must be installed after rooflight. preferred specification. An example structure is shown below. Timber upstand insulation* Decking joists* Decking Kerb upstand insulation* Roof deck* Insulation* Plasterboard* Adjustable...
- Page 7 Step 2 - Sectional reference details 2a. The example structure detailed in step 1 is shown below in 2D sectional view. Membrane* Vapour barrier* Timber fillet* Roof deck* Firrings* Kerb upstand insulation* Ventilation path (if required) Timber kerb upstand* Doubled ceiling joists* Insulation* Plaster skim*...
- Page 8 Step 5 - Silicone sealing 6a. Apply a generous bead of silicone sealant to the top face of the kerb prior to lowering the rooflight into place. We recommend low modulus neutral cure silicone sealant. Step 7 - Fixing the rooflight 8a.
- Page 9 Step 6 - Product position and orientation Ensure cill of rooflight is orientated at the lower end of the kerb fall. 7a. Ensure the side of the rooflight with 7b. Lower the rooflight frame on to the kerb the ‘Cill’ identification sticker applied, is at upstand ensuring an even gap to all sides.
- Page 10 12a. Finally, clean the product to remove any Ensure there are no contaminants on dirt that may have accumulated during the the glazing or painted frame. installation process. For any queries regarding installation please contact The Rooflight Company or visit www.therooflightcompany.co.uk...
- Page 11 Step 10 - Internal finish SECTION VIEW C-C1 DETAIL VIEW C2 11a. Insert the plasterboard into the recess in the rooflight frame. Ensure the vapour barrier is held in position between the rooflight frame and the plasterboard. Skim as required.
- Page 12 Appendix A - Installation section neo Advance Skywalk™ + (3- ply)
- Page 13 Appendix B - Installation section neo Advance Skywalk™ (2- ply)
- Page 14 NOTES PAGE...
- Page 15 NOTES PAGE...
- Page 16 Installation Guide neo Advance Skywalk Rooflight Please register your product at: www.therooflightcompany.co.uk Wychwood Business Centre Milton Road Shipton-under-Wychwood OX7 6XU T: 01993 833155 E: info@therooflightcompany.co.uk www.therooflightcompany.co.uk bsi. The Rooflight Company Shipton-under-Wychwood MANAGEMENT SYSTEMS Insulating Glass Units Assessed to ISO 9001:2015 Scan the QR code to leave a review No.
