Mitsubishi Electric PUZ-ZM100 Manual

Air Protect Guide

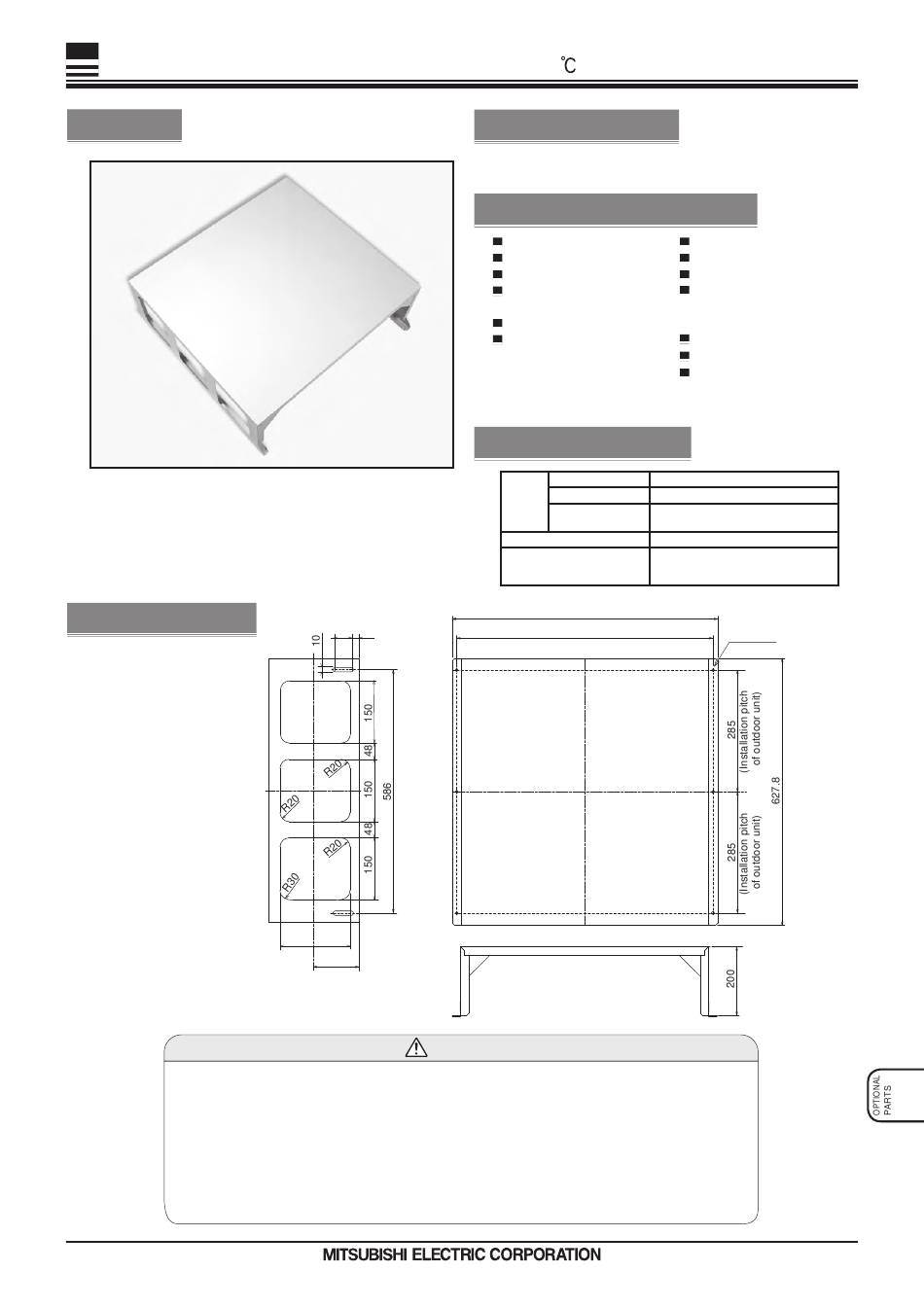

Dimensions
Unit: mm (inch)
* Air Guide prevents reverse rotation of outdoor unit fan when it enters low speed rotation mode with fan controller
being operated. It is also used for protection of fan when strong winds, such as a typhoon, wind blowing through tall
buildings, etc., directly strike the air outlet. In addition, installation of this product is necessary when cooling opetation
is to be performed in outdoor tempreture of -5℃ or lower (down to -15℃).
Note the followings when installing this guide:
1) Be sure not to use "upward discharge" in a place where snowing is possible. Snow may accumulate in the
guard, which could damage the fan, etc.
2) Attaching this unit will decrease the performance (by 2-3%) and increase noise from outdoor unit (by approx. 1-2 dB).
3) Do not use "upward discharge" when there are any obstacles at the back and on both sides of outdoor unit
(air is taken in from top of unit): This could cause a short cycle.
4) To eliminate the influence of external wind, be sure to install the unit with its back facing to wall.
5) Do not install this unit in a place where wind directly blows to the back of the unit.
(for cooling at -15 )
40 16
155
102.5
CAUTION
Descriptions
Enables operation even when the outside tempera-
ture is low. Protect the unit from cold wind.
Applicable Models
PUZ-ZM100,125,140VKA
PUZ-ZM100,125,140YKA
PUZ-ZM200,250YKA
PUZ-M200,250YKA
2 pieces required
PUZ-M100,125,140VKA
PUZ-M100,125,140YKA
1 piece required
[R32 type]
Specifications
Color (Munsell) Ivory (3.0Y 7.8/1.1)
Acrylic resin coating
Surface treatment
Exterior
Alloy hot-dip zinc-coated carbon steel
Material
sheet
Weight
3.5kg
Washer faced screw (M5x15) x 4
Accessory name x Qty.
<Iron wire (SWCH18A)/Zinc nickel
<Material/Surface treatment>
plated>
653
638(Installation pitch of outdoor unit)
PAC-SH95AG-E
PUHZ-ZRP100,125,140VKA3
PUHZ-ZRP100,125,140YKA3
PUHZ-P100,125,140VKA
PUHZ-P100,125,140YKA
1 piece required
PUHZ-ZRP200,250YKA3
PUHZ-P200,250YKA3
PUHZ-SHW230YKA2
2 pieces required
[R410A type]
6-ø7 hole
E-267
