Unicor WE-1550-HT2 Manual

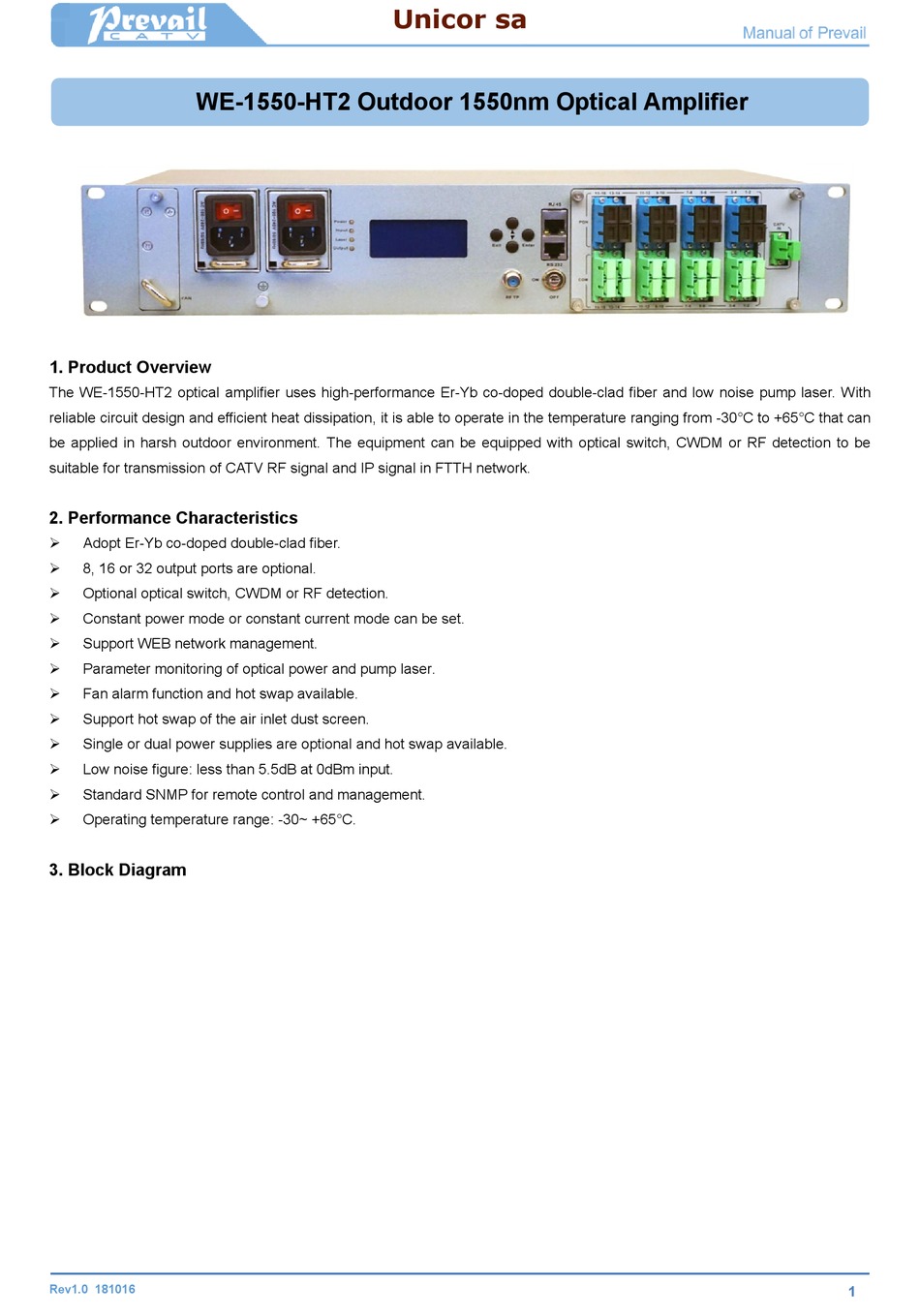

WE-1550-HT2 Outdoor 1550nm Optical Amplifier
1. Product Overview
The WE-1550-HT2 optical amplifier uses high-performance Er-Yb co-doped double-clad fiber and low noise pump laser. With
reliable circuit design and efficient heat dissipation, it is able to operate in the temperature ranging from -30°C to +65°C that can
be applied in harsh outdoor environment. The equipment can be equipped with optical switch, CWDM or RF detection to be
suitable for transmission of CATV RF signal and IP signal in FTTH network.
2. Performance Characteristics
Adopt Er-Yb co-doped double-clad fiber.

8, 16 or 32 output ports are optional.

Optional optical switch, CWDM or RF detection.

Constant power mode or constant current mode can be set.

Support WEB network management.

Parameter monitoring of optical power and pump laser.

Fan alarm function and hot swap available.

Support hot swap of the air inlet dust screen.

Single or dual power supplies are optional and hot swap available.

Low noise figure: less than 5.5dB at 0dBm input.

Standard SNMP for remote control and management.

Operating temperature range: -30~ +65°C.

3. Block Diagram
Rev1.0 181016
