AP214H GPON
ONT
User Manual
Revision C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP214H GPON HGU ONT and is the answer not in the manual?

Questions and answers

Related Manuals for Ascent AP214H GPON HGU ONT

Summary of Contents for Ascent AP214H GPON HGU ONT

  • Page 1 AP214H GPON User Manual Revision C...
  • Page 2 User Manual Revision C Copyright © 2018 Ascent Communication Technology Limited. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Ascent Communication Technology is strictly forbidden. This document is produced to assist professional and properly trained personnel with installation and maintenance issues for the product.
  • Page 3 AP214H GPON HGU ONT Table of Contents Chapter 1 Product Introduction ....................4 1.1 Product Description ······································································································· 4 1.2 Special Features ············································································································· 4 1.3 Technical Parameters ····································································································· 5 1.4 Application Chart ··········································································································· 6 1.5 Panel Description ··········································································································· 6 Chapter 2 Quick Installation ...................... 8 2.1 Standard Packing Contents ····························································································...

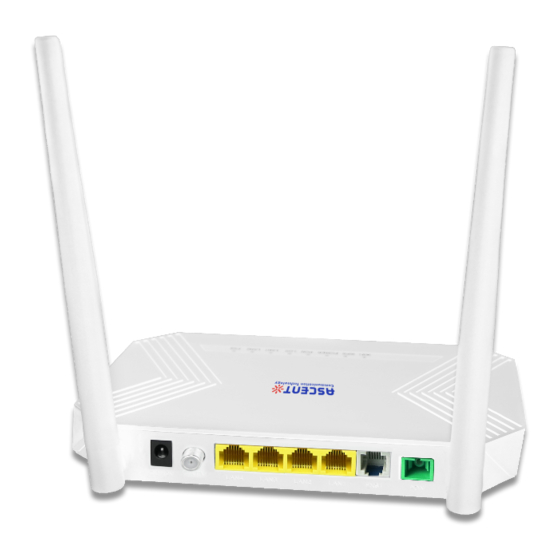

  • Page 4 AP214H GPON HGU ONT AP214H GPON ONT is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data service access. It is based on mature and stable, cost-effective XPON technology. XPON can switch automatically with EPON and GPON mode when it accesses to the EPON OLT or GPON OLT.
  • Page 5 AP214H GPON HGU ONT Item Description PON Interface 1 G/EPON port (EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-27 dBm Transmitting optical power: 0 dBm to +4 dBm Transmission distance: 20 km Wavelength TX: 1310 nm, RX: 1490 nm...
  • Page 6 AP214H GPON HGU ONT Figure 1-2: Application chart Figure 1-3: Rear View for multiple port Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 6 of 50...
  • Page 7 AP214H GPON HGU ONT Figure 1-4: Push button Panel Figure 1-5: LED Panel Status Description POWER The device is powered up. The device is powered down. The device has registered to the PON system. Blink The device is registering the PON system.
  • Page 8 AP214H GPON HGU ONT When you receive our products, please check carefully to make sure that our products whether have some defects or not. If something wrong with shippings, please contact carrier; other damage or lack of some parts, please contact with dealer.
  • Page 9 AP214H GPON HGU ONT  Keep the optical connector and the optical fiber clean.  Make sure there are no tight bends in the fiber and that the bending diameter is greater than 6cm. Otherwise, the optical signal loss may be increased, to the extent that signal may be unavailable.
  • Page 10 AP214H GPON HGU ONT After finishing the basic connection configuration, you can use its basic function. In order to satisfy individuation service requirements, this charter provides the user parameter modification and individuation configuration description. The device is configured by the web interface. The following steps will enable you to login: 1.
  • Page 11 AP214H GPON HGU ONT Figure 3-1: Login This part shows the main information of device and the active status about major services. This page shows the basic information about device, such as Device Type, PON MODE, Device Model, PON MAC /SN, Software Version, Register State.
  • Page 12 AP214H GPON HGU ONT Figure 3-2: Device Information IPv4 WAN Connection Information This page shows IPv4 WAN connection information you have configured. Figure 3-3: IPv4 WAN Information IPv6 WAN Connection Information This page shows IPv6 WAN connection information you have configured.
  • Page 13 AP214H GPON HGU ONT Figure 3-4: IPv6 WAN information PON Information This page shows the PON information, including Optical module information, Link Status, Performance statistics. Figure 3-5: PON Status Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 13 of 50...

  • Page 14: Lan Interface Information

    AP214H GPON HGU ONT LAN Interface Information This page shows the Ethernet port information, including LAN Link Information, Transceiver statistics. Figure 3-6: LAN Interface Information WLAN Interface Information This page shows the WLAN Interface information, including basic WIFI information and WIFI Client information.
  • Page 15 AP214H GPON HGU ONT DHCP Pool Information This page shows the DHCP Pool Information, including the dhcp client information. Figure 3-8: DHCP Pool Information Phone Register Status This page shows the register status of POTS1.Attention, you need to configure the part of VoIP Configuration.Otherwise, it couldn’t be registered.
  • Page 16 AP214H GPON HGU ONT Phone Number Information This page shows the Phone number you had configured, if you haven’t configured the phone number, it would be blank in this part. Figure 3-10: Phone Number Information TR069 Connection Status This page shows the TR069 Inform Status and Remote Connection status.
  • Page 17 AP214H GPON HGU ONT TR069 Configuration Status This page shows the TR069 Configuration Status. Figure 3-12: TR069 Configuration Status This page allows the user to configure WAN connections. You can add/delete/modify WAN connections here. The device default settings about TR069 WAN and Route_Internet WAN Connections .
  • Page 18 AP214H GPON HGU ONT Parameter Description Connection Name The list of WAN connection name that would be created according to the detail WAN Configuration. If you want to create a new WAN connection, please select “Create a new WAN connection” and input other Parameter at the same time and then click “OK”...

  • Page 19: Binding Mode

    AP214H GPON HGU ONT Binding Mode This page supports the LAN or SSID binding mode based on VLAN. Users could deploy different VLAN configuration according to actual demands. Figure 3-14: Port Binding Mode Port Isolation This page allows the user to deploy whether ports need communicate with each other. If the Port Isolation function is enabled, all the ports cann’t access each other.
  • Page 20 AP214H GPON HGU ONT LAN IPv4 Address Settings This page supports the management of the ONU's IPv4 address, DHCP Server management, including address distribution and relevant parameters distribution, such as lease time, address pool range, dns distribution. Figure 3-16: LAN IPv4 Address Settings...
  • Page 21 AP214H GPON HGU ONT LAN IPv6 Settings This page supports the management of the LAN IPv6 address, including LAN IPv6 Address Settings, LAN IPv6 DHCP configuration, RA Configuration Figure 3-18: LAN IPv6 Address Settings Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com...

  • Page 22: Qos Settings

    AP214H GPON HGU ONT QoS Settings This page allows the user to configure QoS (quality of service) parameters, including enable option, uplink Bandwidth, Rule template and Scheduling Police. Figure 3-19: QoS Settings Parameter Description Enable QoS Configuration Enable or Disable QoS function...
  • Page 23 AP214H GPON HGU ONT Figure 3-20: Rules Settings This page allows the user to deploy WLAN (WiFi) Configuration, including WLAN Enable option, SSID Name, Encryption options. Parameter Description Enable Checked indicates that WLAN function is enabled. Unchecked indicates that WLAN function is disabled.
  • Page 24 AP214H GPON HGU ONT Encryption Open, WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise WPA Password The password of SSID WPS Enable Enable or disable WPS function Figure 3-21: WLAN Basic Configuration and Advanced Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com...
  • Page 25 AP214H GPON HGU ONT This page allows the user to deploy TR069 Remote Management Configuration, including Server Address, Server User Name, Server Password, Client Username, Client Password and Cycle Reporting Interval, enable or disable Cycle Reporting. Figure 3-22: TR069 Configuration This page allows the user to configure NTP Client function.
  • Page 26 AP214H GPON HGU ONT Figure 3-22: Time Admin This page allows the user to configure statics route function. For this, the user could deploy more options about network. Figure 3-23: Static Route Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com...

  • Page 27: Security Level

    AP214H GPON HGU ONT Security Level This page allows the user to set the level of the firewall. Low, Medium, High, three options are Available. Figure 3-24: Security Level Attack Protection Setting This page allows the user to set the protection against DOS attacks.
  • Page 28 AP214H GPON HGU ONT This page allows the user to set the relevant parameters of the MAC filter function, including black-list and white-list. The black-list indicates that forbidden access, white-list indicates that allow access. Figure 3-26: MAC Filter This page allows the user to set the port filtering function. The rules are based on Source IP...
  • Page 29 AP214H GPON HGU ONT Figure 3-27: Port Filter This page allows the user to set the URL filter function(Attention, it supports http website not https website). Figure 3-28: URL Filter Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 29 of 50...
  • Page 30 AP214H GPON HGU ONT This page allows the user to set the WLAN MAC filter function. If the wifi client mac address is in the black-list, it couldn’t get access on the internet. Figure 3-29: WLAN MAC Filter This page allows the user to set DDNS function.

  • Page 31: Alg Configuration

    AP214H GPON HGU ONT This page allows the user to set Advanced NAT function, including ALG Configuration, DMZ Settings, Virtual Host Settings. (Attention , there are some different description about Virtual Host Settings, such as Port Forwarding , Port Mapping)
  • Page 32 AP214H GPON HGU ONT Virtual Host Settings Configuration Figure 3-33: Virtual Host Settings Configuration This page allows the user set VOIP Configuration, including two parts, Basic and Advance configuration. Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 32 of 50...
  • Page 33 AP214H GPON HGU ONT VOIP Basic Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 33 of 50...
  • Page 34 AP214H GPON HGU ONT Figure 3-34: VOIP Basic Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 34 of 50...
  • Page 35 AP214H GPON HGU ONT VOIP Advanced Configuration Figure 3-35: VOIP Advanced Configuration This page allows the user to set IGMP SNOOPING, IGMP Proxy, MLD Configuration, MLD Proxy Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 35 of 50...
  • Page 36 AP214H GPON HGU ONT Figure 3-36: IGMP Configuration This page allows the user to set UPNP function. If enable UPNP, the device would open Port Mapping automatically according to what the client used. Figure 3-37: UPNP Configuration Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com...
  • Page 37 AP214H GPON HGU ONT This page allows the user to set VPN Client configuration , including the parameters Protocol Type, Server address, Username and Password. Figure 3-38: VPN Service Setting This page allows the user to change normal account password.

  • Page 38: Software Upgrade

    AP214H GPON HGU ONT Software Upgrade This page allows the user to update the software of the device. Click the “Choose File ” button to select the software and then click the “Upgrade” button to update. When the device upgrade successed, it would reboot automatically. The whole process of upgrade will take 3 minutes.

  • Page 39: Restore Default

    AP214H GPON HGU ONT Restore Default This page allows the user to restore the device. After restore the device, the whole configuration would be changed to default configuration. The whole process of restore factory will take 1-2 minutes. Figure 3-42: Restore Default Log Level This page allows the user to different level about Write Level and Display Level.
  • Page 40 AP214H GPON HGU ONT This page shows the device running status according to the log display level. Figure 3-44: Log This page allows the user to set the LOID and Password, this is other mode for OLT Authorize Figure 3-45: LOID Configuration This page allows the user to choose the language between English and Sample Chinese.
  • Page 41 AP214H GPON HGU ONT Figure 3-46: Language Setting This page allows the user to get the current CATV information and set Output Level Attention value, RF Switch On/Off. Figure 3-47: CATV Information This page allows the user to set the access control function, including three access services (telnet, http, Ping) from LAN and WAN side.
  • Page 42 AP214H GPON HGU ONT Figure 3-48: Access Control This page allows the user to set the Loop Detection, including Sending Interval, Loopback Recovery Time. Figure 3-49: Loopback Detection This page allows the user to set the Port configuration. If the lan port is enabled, user can connect the device by cable.
  • Page 43 AP214H GPON HGU ONT Figure 3-50: Port Setting PING/Tracert Test This page shows about the ping test. Users can diagnose connection status between ONU and other devices. Figure 3-51: PING Diagnosis Parameter Illustration WAN Interface Select the WAN Connection interface you want to test.
  • Page 44 AP214H GPON HGU ONT Manually Inform This page allows the user to test tr069 inform function. Figure 3-52: Manually Inform Use Tr069 The Help information of ONU displays instruction and prompt of each web UI. Figure 3-53: Help information Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com...
  • Page 45 AP214H GPON HGU ONT There are two configuration methods for Internet service. One works on Bridge WAN and another works on Route WAN. Scenario 1: Client binds on bridge mode, service VLAN is 10. User client gets IP address from DHCP Server.
  • Page 46 AP214H GPON HGU ONT MA5680T(config-epon-lineprofile-11)#commit 5. Configure service profile MA5680T(config)#ont-srvprofile epon profile-id 6 profile-name test MA5680T(config-epon-srvprofile-6)#ont-port eth 4 MA5680T(config-epon-srvprofile-6)#commit 6. Authorize ONU MA5680T(config)#interface epon 0/5 MA5680T(config-if-epon-0/5)#ont add 1 0 mac-auth a8bf-3c00-e76a oam ont-lineprofile-id 11 ont-srvprofile-id 6 7. Configure service-port MA5680T(config)#service-port 27 vlan 10 epon 0/5/1 ont 0 multi-service user-vlan 10 8.
  • Page 47 AP214H GPON HGU ONT  Bridge Internet service for client get the IP Address by PPPoE, if client get the IP Address by DHCP, it would get the IP from LAN DHCP Server.  Bridge Other service for client get the IP Address by DHCP/PPPoE from ISP...
  • Page 48 AP214H GPON HGU ONT 1. After power, why are all the lights lit? Reasons: Power connection errors; Power is not normal. Solution: Check that the power cable is connected; The rear panel of the power supply is turned on. 2. Why does LED of LAN not light? Reasons: Network cable is damaged or loose connection;...
  • Page 49 AP214H GPON HGU ONT Cotton ball with alcohol swabbing fiber optic connectors; Contact your operator. 5. Why does ONU stop working after working for a long time? Reasons: Power supply is not working properly; The equipment from overheating. Solution: Check if there is contact with abnormal voltage is too high or too low;...
  • Page 50 Phone: +84 243 795 5917 WEB: www.ascentcomtec.com EMAIL: sales@ascentcomtec.com Specifications and product availability are subject to change without notice. Copyright © 2019 Ascent Communication Technology Limited. All rights reserved. Ver. ACT_AP214H_GPON_ONT_Manual_V1c_Apr_2019 Solutions Provider for FTTx, RFoG, and HFC www.ascentcomtec.com Page 50 of 50...
