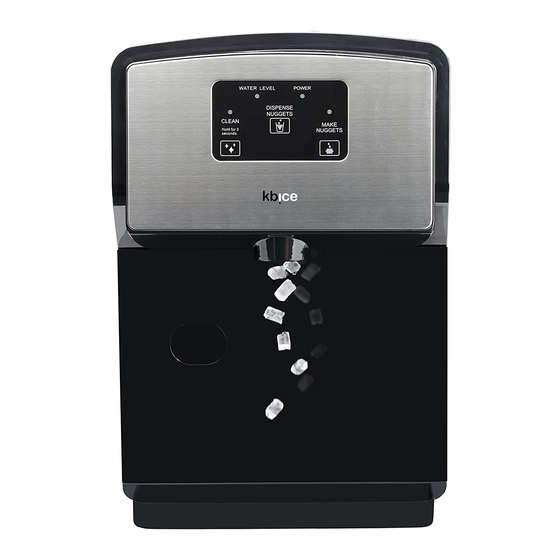

kb!ce FDFM1JA01 Quick Start Manual

Portable Nugget Ice Dispenser
Quickstart Guide —
INSTALLATION
REQUIREMENTS
Clearance Requirements
CAUTION
• This unit is designed for countertop use only.
• Never block the air vent on the left side.
• This unit is designed to be in operation in an
area with a maximum ambient temperature
of 80°F, 26°C. Warmer ambient temperature
will result in reduced ice quality and product.
• Never operate this unit in direct sunlight.
• Allow for a minimum clearance of 12 inches
on the left side, ½ inch on the right, 2 inches
on the back, and ½ on the top of clearance
on the left side, to ensure proper function of
the unit.
1. Display Panel
2. Ice Dispense Point
3. Water Port for Funnel
4. Reservoir Cover
5. Air Vent
6. Water Drip Tray
7. Power Cord
8. Drain Tube Plugs/Holder
www.kbgoodice.com
Model: FDFM1JA01
4
Electrical Requirements
DANGER
It is required that you connect this unit only
to a GFCI protected receptacle. It is strongly
recommended that you do not use an adapter
to connect this unit because of safety hazards.
Water Requirements
WATER
We recommend using distilled, bottled OR
filtered water, as this will improve the
performance of the machine. Tap water with a
hardness of <100 PPM is also acceptable. The
machine will NOT produce ice and will
automatically go into clean mode if tap water
with a hardness > 100 PPM is used
NOTE
Do NOT add water until Water Level red LED
flashes. Do NOT overfill the reservoir,
otherwise it may overflow when ice melts
completely.
8
1
2
3
5
6
7
