Check the Ranger system website to ensure you have the most recent version of this document.
Ranger
®
Betriebshandbuch
Réchauffement de sang/soluté Ranger
Manuel de l'utilisateur
Sistema per il riscaldamento di sangue e
di fluidi Ranger
Manuale d'uso
Calentamiento de fluidos /plasma
Manual del usuario
Sistema de aquecimento de sangue/flui-
dos Ranger
Manual do utilizador
Ranger bloed/vloeistofverwarming
Gebruiksaanwijzing
Ranger Blod-/Væskeopvarmning
Brugsanvisning
Ranger blod-/vätskeuppvärmning
Användarhandbok
Ranger-blod/væskevarming
Bruksanvisning
Ranger
Blood/Fluid Warming
Blut-/Flüssigkeitswärmeeinheit
www.rangerfluidwarming.com
Ranger veren/nesteen lämmitin
Käyttäjän opas
Θέρμανση αίματος/υγρών Ranger
∂Á¯ÂÈÚ›‰ÈÔ ÃÂÈÚÈÛÙ‹
Ranger血液/輸液加温
取扱説明書
Urządzenie do ogrzewania krwi/płynów
Ranger
Instrukcja Obsługi
Ranger vér-/folyadékmelegítő
Használati Utasítás
Ohřívání krve a kapalin - Ranger
Návod k obsluze
„Ranger" kraujo/skysčio šildymas
Vartotojo vadovas
Ranger Подогрев крови/жидкости
Руководство оператора
Ranger血液（液体）升温
操作员手册
reorder #241434C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arizant Healthcare Ranger 245
Summary of Contents for Arizant Healthcare Ranger 245

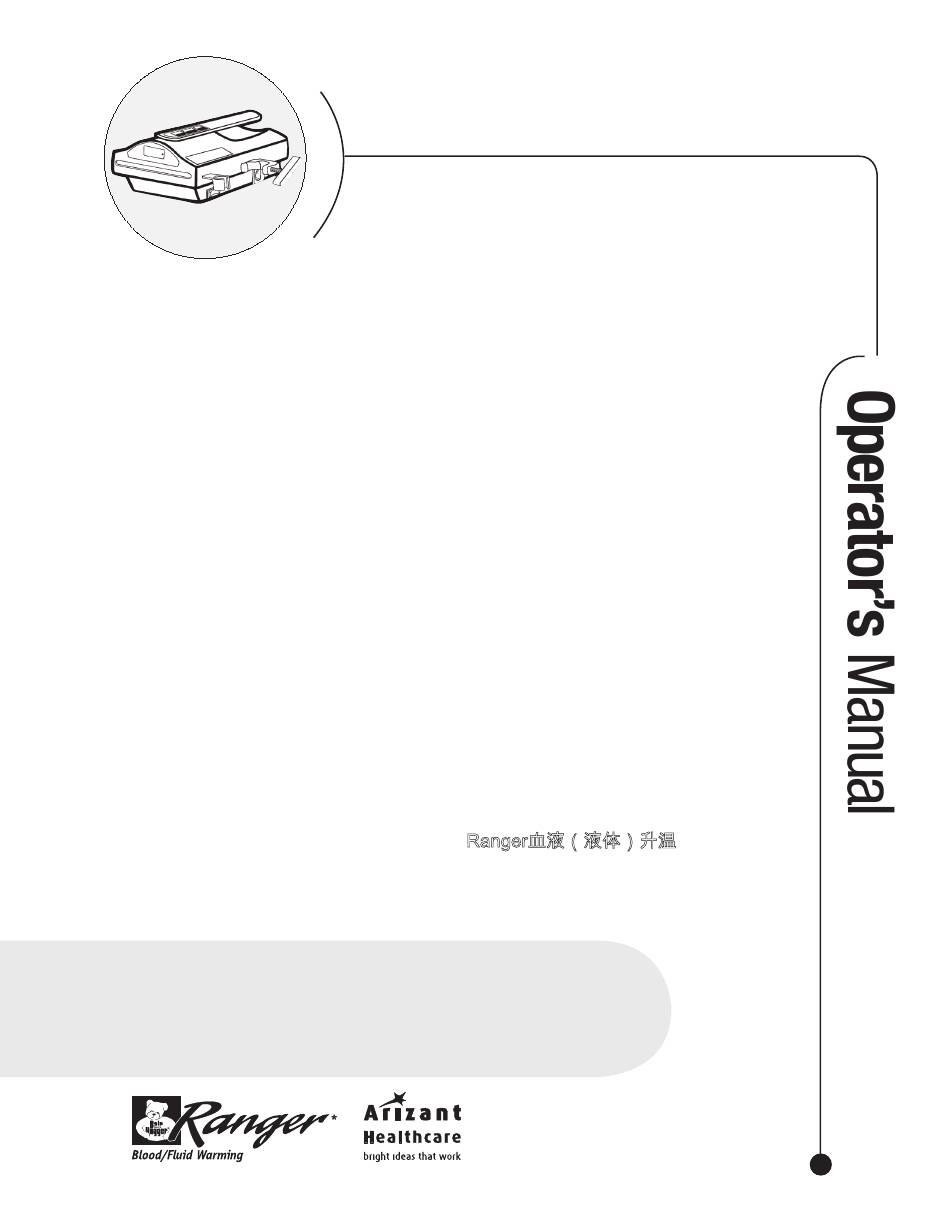

- Page 1 Check the Ranger system website to ensure you have the most recent version of this document. www.rangerfluidwarming.com reorder #241434C Ranger Blut-/Flüssigkeitswärmeeinheit Ranger veren/nesteen lämmitin ® Betriebshandbuch Käyttäjän opas Réchauffement de sang/soluté Ranger Θέρμανση αίματος/υγρών Ranger Manuel de l’utilisateur ∂Á¯ÂÈÚ›‰ÈÔ ÃÂÈÚÈÛÙ‹ Sistema per il riscaldamento di sangue e Ranger血液/輸液加温...
- Page 2 English Deutsch Français Italiano Español Português Nederlands Dansk Svenska Norsk Suomi Ελληνικά 日本語 Polski Magyar Cesky Lietuviškai Русский 中文...
- Page 3 Ranger Blood/Fluid Warming English 1 Table of Contents Technical Service and Order Placement � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � Introduction �...
-
Page 4: Technical Service And Order Placement
When you call for technical support Remember, we will need to know the serial number of your unit when you call us� The serial number label is located on the bottom of the warming unit� Arizant Healthcare Inc. -
Page 5: Indications For Use
Immediately stop fluid flow and discard the disposable set� Have the warming unit tested by a biomedical technician or call Arizant Healthcare Inc� technical service� • Never infuse fluids if air bubbles are present in the fluid line, as air embolism may result�... -

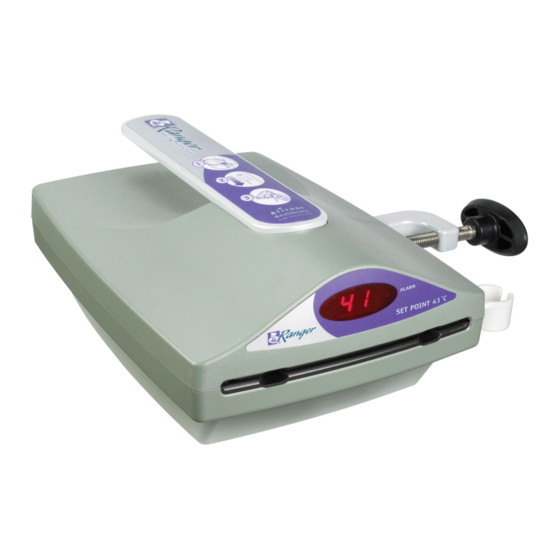

Page 6: Product Description
“HI�” In an under-temperature condition, the display alternately flashes a temperature of 33°C or lower and word the “LO�” • Alarm indicator light that comes on when either an over- or under- temperature condition occurs� Arizant Healthcare Inc. - Page 7 Ranger Blood/Fluid Warming English 5 Ranger disposable set Blood/fluid administration sets include a warming cassette (heat exchanger), tubing and connectors compatible with hospital standard IV blood/fluid administration sets, bubble trap, and injection port� The High Flow set also includes 2 blood/fluid bag spikes and a 150 micron filter located in a central drip chamber�...
-
Page 8: Product Safety Features
(may take a few minutes), flashes a temperature of transient discontinue use of unit� 43°C or higher and the conditions�* Call Arizant Healthcare word “HI�” Customer Service� Under-temperature Alarm indicator light Heater Alarms stop when alarm - 33°C... - Page 9 Ranger Blood/Fluid Warming English 7 Warming units Rev A to M Independent back-up • Alarm indicator light Heater TURN OFF THE safety alarm - 46°C illuminates and alarm temperature UNIT AND UNPLUG sounds, alphanumeric rose to 46°C� IT� Do not use the unit� display alternately Safety backup Discard the disposable...
- Page 10 ON� In a few seconds the alphanumeric display will illuminate� It takes less than 2 minutes to warm up to the 41°C set point temperature� 6� Begin infusion� When infusion is completed, remove the disposable set and discard according to institutional protocol� Arizant Healthcare Inc.
- Page 11 Ranger Blood/Fluid Warming English 9 Removing the disposable set from the Ranger warming unit 1� Close the inlet clamp proximal to the fluid warming cassette and open all clamps distal to the cassette� 2� Disconnect the disposable set from the fluid source, if applicable� 3�...
-
Page 12: Troubleshooting
Make sure the warming unit is plugged into a properly grounded outlet� • Unit failure� • Call Arizant Healthcare Customer Service� ondition ause olution Alarm indicator Temporary over-temperature illuminates and alarm... - Page 13 If alarm continues, unplug display alternately flashes a heater/relay� unit and discontinue use� Call temperature of 33°C or below Arizant Healthcare Customer and the word “LO�” Service� ondition ause olution Alphanumeric display reads Open wire on temperature Do not use unit�...
-
Page 14: Maintenance And Storage
Do not allow spills to dry inside the unit, as this may make it more difficult to clean the unit� • The cleaning tool provides only superficial cleaning, it does not disinfect or sterilize the interior of the unit� Arizant Healthcare Inc. - Page 15 Servicing There are no user-serviceable parts in the Ranger warming unit� All service must be performed by Arizant Healthcare Inc� or an authorized service technician� Call Arizant Healthcare Inc� Technical Service at 800-733-7775 or 952-947-1200 for service information� *Alconox is a registered trademark of Alconox, Inc�...
-
Page 16: Specifications
Meets leakage current requirements in accordance with UL 60601-1 and IEC 601-1� Environmental conditions operating temperature range 15° to 40°C (59° to 104°F) storage temperature range -20° to 45°C (-4° to 113°F) operating humidity 10 to 85% RH, noncondensing atmospheric pressure range 50 kPa to 106 kPa Arizant Healthcare Inc. -
Page 17: Definition Of Symbols
Ranger Blood/Fluid Warming English 15 Definition of Symbols Fuse Attention - Read accompanying documents Type B Applied Part Voltage, Alternating Current (AC) Equipotentiality plug (ground) Special Refuse, discard separately Protective earth ground 241434C...
