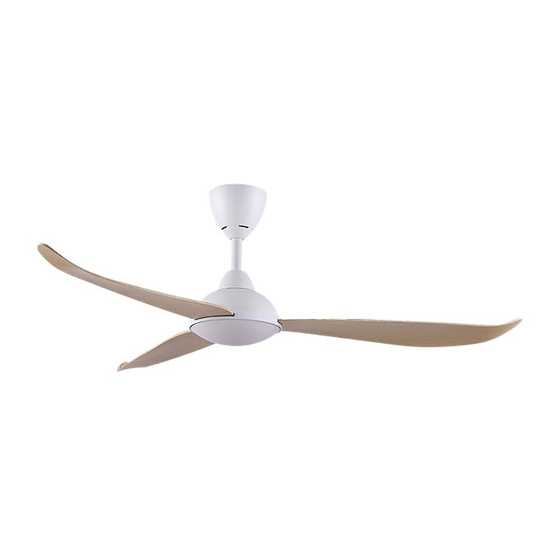

- Page 1 INSTRUCTION MANUAL Luna-3B/56 Luna-5B/46 Luna-5B/40 Luna-5B/56...
-
Page 2: Safety Precaution
Safety Precaution Disconnect from the main power supply before servicing the unit. DO NOT pull out the power cord when the power is ON. This may cause serious electrical shocks which may result in fire hazards. 1. Safety Precaution ..............1 - 2 2. - Page 3 Step 1 - Fix the Rubber Pulley Assembly to the Downrod with Bolt, Washer, Nut and tighten them firmly, then insert the Clevis Pin. Switch Canopy Housing Luna-3B/56 : Blade x 3 Luna-5B/40 : Blade x 5 Luna-5B/46 Motor Assembly with Downrod Luna-5B/56 and Coupling Cover Receiver...
- Page 4 Step 5 - Install the Blades on Motor with Screw. Step 3 - Tie the Safety Wire across the hook as shown and firmly screw the Safety Wire onto the Downrod. Below shows a complete installation diagram. Step 4 - Connect the Connectors from Fan and Receiver. Connect the wires from the receiver to House’s Supply Wire.
- Page 5 Motor ANT1 MAIN PCB Blue Neutral (Blue) Brown Live (Brown) Green/Yellow Earth (Green/Yellow) Power Supply 220V-240V~ 50Hz 220V-240V~ 50Hz...
- Page 6 Transmitter Learning Process Transmitter Function - Turn off fan Mount the remote control 1 - 6 - Fan speed lowest to highest holder on the wall with the - Natural wind, creating gentle sea- screws provided. breeze effect The receiver & transmitter is pre-programmed in factory. If you wish to control 2 or more fans using 1 transmitter, the below steps are required.
- Page 7 : Motor Wattage 5W - 35W 5W - 35W 5W - 40W 5W - 40W Alpha Home Appliances Sdn. Bhd. (390258-H) Nett Weight 5.6kg 5.5kg 7.0kg 5.0kg Head Office : 6, Jalan Sungai Kayu 32/37, Berjaya Park, Sect 32, 40460 Shah Alam, Selangor.
