Summary of Contents for Leuze LCAM 408i
- Page 1 LCAM 408i Industrial Ethernet Camera User Manual Revision 1.3...
- Page 2 The complete risk inherent in the utilization of this document or in the results of its utilization shall be with the user; to this end, Leuze electronic GmbH+Co KG shall not accept any liability. Regardless of the applicability of respective...
- Page 3 SAFETY INFORMATION Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before reloading the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add device.
- Page 4 GPL STATEMENT GNU License This software product contains software covered by the GNU GPL. It may in addition contain other parts covered by other licenses (such as LGPL). A list of all modules and their licenses (“FOSS” list) is available on request (see link below), or in newer devices it is contained in the device itself (see ch. 6.3.2).
-
Page 5: Table Of Contents
CONTENT Hardware M12 connectors Pin definition Ethernet connector Pin definition Power connector Switching off Optics Mounting the camera With screws At a rod (10-20mm) With a mounting angle First Steps What’s needed What to do Technical terms Binning Software Still image MJEG Streaming Stream data structure RTP Streaming... - Page 6 Image menu Image settings 6.3.2.1 General remarks 6.3.2.2 Saving setting 6.3.2.3 Regions of interest 6.3.2.4 Automatic ROI correction 6.3.2.5 Binning and framerate 6.3.2.6 6.3.2.7 Gain control 6.3.2.8 Color saturation 6.3.2.9 White balance 6.3.2.10 Image orientation Live image Ringbuffer About Menu System information Licenses Appendix...
-
Page 7: Hardware

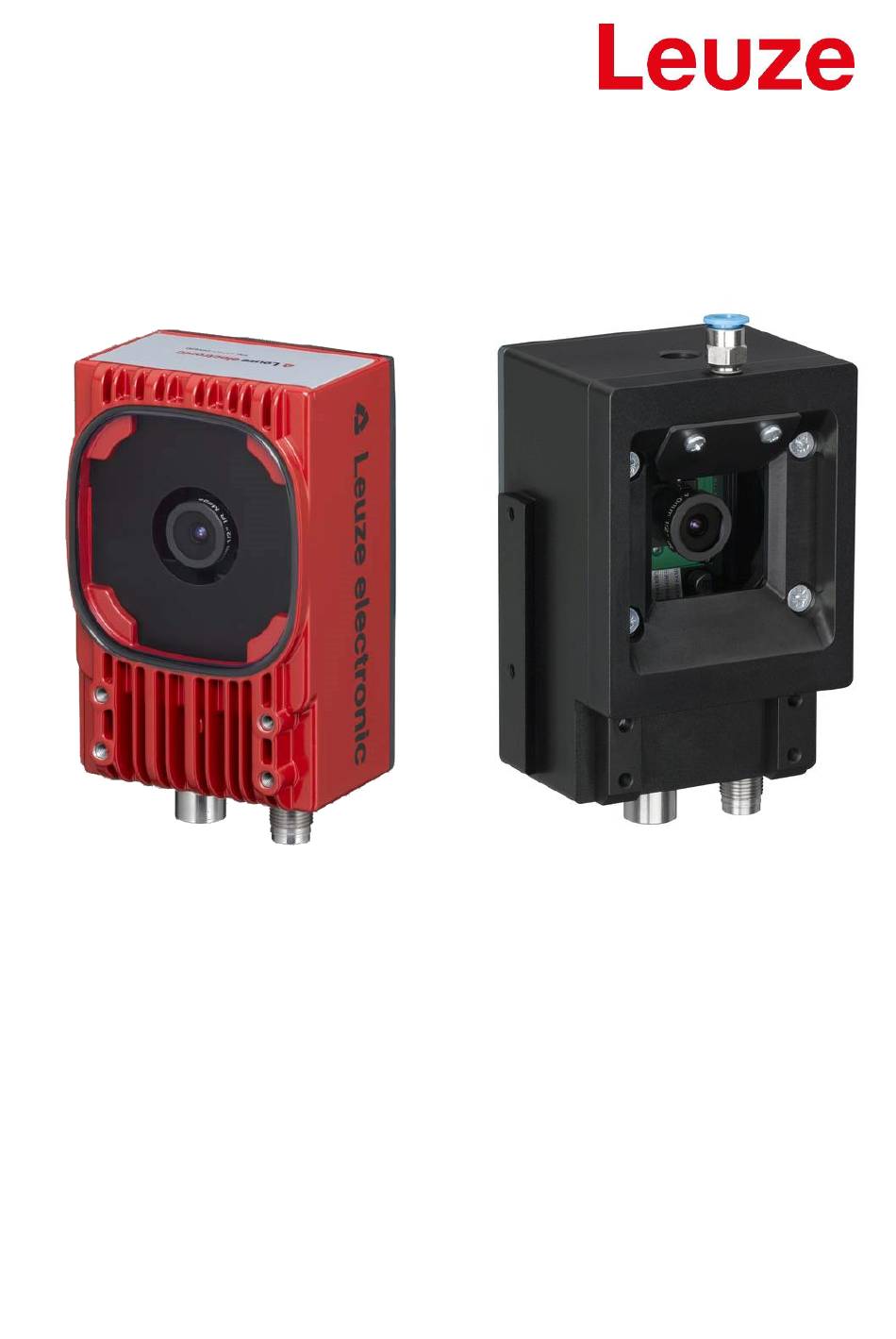

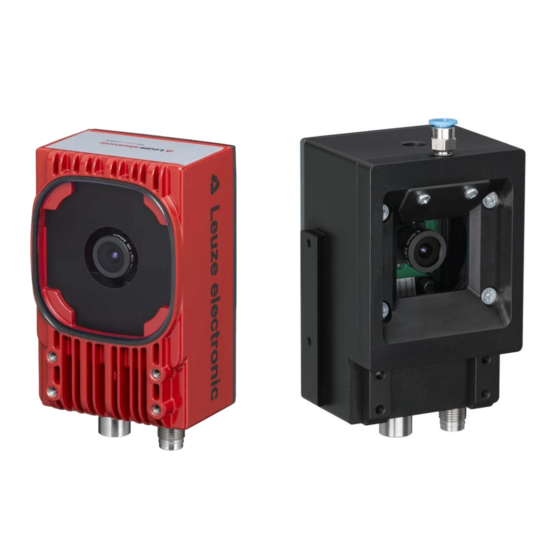

Hardware This manual covers the industrial LCAM 408i with MJPEG streaming capabilities and its software. The LCAM 408i C7F-XX has outer dimensions of approx. 75 mm (L), 55 mm (W), 113 mm (H) For more details see the datasheet. M12 connectors The M12 connectors on the bottom side are used for Ethernet connection (named with SERVICE) and the other for Power Supply (named with PWR). -
Page 8: Pin Definition Power Connector
3,40 x 2,60 m @ 2 Meter distance Mounting the camera There are different options to mount the LCAM 408i With screws The camera can by mounted to a flat surface with four M4 * 4 screws. There is no preferred mounting direction. -
Page 9: At A Rod (10-20Mm)
At a rod (10-20mm) with the BT 56-1 or BT 300-1 With a mounting angle The camera can mount to the BT 300W and adjust in different directions... -
Page 10: First Steps
Ethernet cable with connectors M12 X-coded – RJ-45, CAT6 Switch (1000BaseT) or direct PC connected with Gigabit Ethernet interface Streaming video viewer Leuze viewer, VLC or equivalent. What to do After unpacking the camera, the following steps for a first use are: ... -
Page 11: Rtp
RTP / RTSP RTP is a streaming protocol used for video and audio. See: https://en.wikipedia.org/wiki/Real-time_Transport_Protocol https://en.wikipedia.org/wiki/Real_Time_Streaming_Protocol The camera can be configured to supply the images using RTP. -
Page 12: Software
MJEG Streaming This document gives an introduction into the use of the LCAM 408i with MJPEG streaming. To watch the streamed image with the VideoLANClient VLC on a 64-Bit Windows system use the line: "C:\Program Files (x86)\VideoLAN\VLC\vlc.exe" tcp://IPaddress:5001 --network-caching=0 Fill in the IP address of the camera and adjust the path to vlc.exe as needed. -
Page 13: Stream Data Structure
Stream data structure To access the video data in your own software, open a socket to port 5001 of the camera and scan the incoming data for the separator string ---jworudfg83h23lsow2z04. The following line contains the content type and the next the length of the image data. The typical structure of the stream data is: ---jworudfg83h23lsow2z04 Content-Type: image/jpeg... -
Page 14: Rtp Streaming
RTP Streaming If RTP streaming is enabled, the camera stream jpeg images using RTP port 554. Again VideoLANClient VLC can be used to display the images: vlc rtsp://IPaddress/jpeg Ring buffer All jpeg images grabbed on the camera are buffered in a ring buffer. Currently the ring buffer can hold 25 images. -
Page 15: Web Interface
IP Mask 255.255.0.0 Gateway 192.168.3.1 Not needed for test, change for large nets DNS server 192.168.3.62 Not needed for test, change for large nets Order number Camera-individual Default login data Web interface User: admin Password: leuze User: root Password: rootLogin... -
Page 16: Web Menus
Web menus The LCAM has an internal web server that has the following menus. Network Network menu Network menu Figure 2 In the network menu, the network settings and the state of some network services can be configured. Network settings Figure 3 Screenshot network settings Here you can choose between static address assignment and DHCP mode. -
Page 17: Administration
Administration Administration menu Figure 5 Administration menu Using the administration menu, you can change passwords, do a system update or perform a system reboot or a factory reset. Password page Here one of the two possible passwords can be selected to be changed or set. The "admin"... -
Page 18: Factory Reset
Reboot System reboot is done without further data and should be finished after two minutes. Figure 8 Screenshot system reboot Factory reset Figure 9 Screenshot factory reset When you hit the button "Factory reset", network and image settings are reset and the camera is rebooted. -
Page 19: Image Settings
Image settings Image menu Figure 10 Image menu The image menu allows adjusting image settings (e.g. regions of interest), watch the live images and handle the ringbuffer. Image settings Image settings menu Figure 11 The image settings menu allows configuring the sensor. The subsequent text describes all settings. 6.3.2.1 General remarks When you enter the page, you will see a warning message. -
Page 20: Saving Setting
6.3.2.2 Saving setting Figure 13 Apply settings or set default values The buttons shown above allow to save the changes made or to set some default values stored on the camera. When Apply is clicked, the current settings are stored, but current sensor settings are not changed. To achieve this, the web page must be reloaded. -
Page 21: Automatic Roi Correction
All ROIs can be shown using the button "Show all region of interest". Only the active one can be changed. Figure 16 Show all ROI 6.3.2.4 Automatic ROI correction The ROI for gain control and white balance must lie within the acquisition ROI. This is handled automatically. -
Page 22: Rtp
The frame rate depends on the amount of data that is transferred. If the effective image size is small, a high frame rate can be achieved. The maximum frame rate is calculated, whenever the image size or the binning mode changes. The frame rate slider limits are adjusted. If needed, the framerate is also reduced, when the image size changes. -
Page 23: Color Saturation
6.3.2.8 Color saturation The color saturation is a value between 0 and 200. Choosing "0" results in a grey level image, 200 results in very colorful images. Figure 23 Color saturation 6.3.2.9 White balance White balance can be done once or continuously. When "White balance (once)" is clicked, the white balance is calculated and the result is saved for the next reboot. - Page 24 Figure 26 Trigger ringbuffer When no ringbuffer images are stored in the file system, the ringbuffer page comes up with a cross to show, that there are no images stored yet. The button "Trigger ringbuffer" can be used to trigger the ringbuffer. Figure 27 Ringbuffer re-arm, download and display When the images are fetched from the ringbuffer and stored in the filesystem, the web page changes.
-
Page 25: About Menu
About Menu About menu Figure 28 Using the menu "about", general system information can be retrieved. Additionally, the licenses of the OpenSource components used can be viewed. System information Figure 29 Screenshot system information This page shows the cameras system information. In case of support request, this information is needed. -
Page 26: Licenses
Licenses This page contains the information about the licenses of the OpenSource components used in the camera. The page will look similar, but not identical to the image below. Figure 30 Licenses page... -
Page 27: Appendix
Appendix Data sheet key data Below you find a block diagram of the electronics and key data for the sensor. Figure 31 Block diagram of the ectronics Figure 32 Sensor data...
