Page 35: Table Of Contents
CONTENTS PART 1 SAFETY TIPS PART 2 PARTS AND COMPONENTS INTRODUCTION PART 3 INSPECTION BEFORE OPERATION PART 4 STARING OF GENERATOR PAET 5 STOPPING OF GENERATOR PART 6 PERIODIC CHECKS AND MAINTENANCE PART7 TROUBLESHOOTING PART8 MAIN SPECIFICATIONS PART9 TERMS & CONDITIONS OF SALE & USE - 1 -... -
Page 36: Safety Tips
PART 1 SAFETY TIPS Thank you for choosing our gasoline generator.Please read this manual carefully before use,and master the correct methods and tips of operation and maintenance. Cautions:Not following the notes and safety precautions listed below may result in personal injury or severe engine damage.Please pay close attention to the following: * Never operate in an enclosed/ * Do not operate under wet... - Page 37 * Never connect to house power circuit if * Keep at least 1 meter away from commercial power supply is not cut. inflammables. * Remember to stop engine before * No smoking when fueling. * Avoid spilling out fueling. when fueling. - 3 -...
- Page 38 Precaution: 1.Preventing fires The fuel of the engine is gasoline and hence diesel,kerosene etc must not be used.Wipe away all fuel spills with clean cloth.Keep all the fuel and explosives and inflammables away from the generator,because the temperature around the exhaust muffler may be high during operation. Operate the generator on a level surface.There may be fuel spillage if generator is tilted.
-
Page 39: Parts And Components Introduction

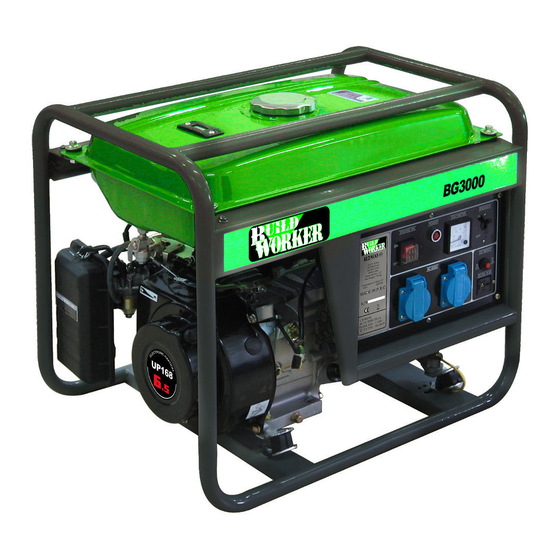

PART 2 PARTS AND COMPONENTS INTRODUCTION (11) (14) (10) (13) (12) 1.fuel tank 2.muffler 3.earth terminal 4.A.C plug/socket 5.carburetor throttle valve 6.starter handle 7.fuel cock 8.air cleaner 9.pipe support 10.spark plug 11.fuel tank cap 12.AC.breaker 13.dipstick 14.starter switch - 5 -... -
Page 40: Inspection Before Operation
PART 3 INSPECTION BEFORE OPERATION * Machine oil level Always check to machine oil level after stopping generator on a level ground. 1.Turn out the oil filter cap and clean 2.Insert the dipstick back into the oil the dipstick with a clean cloth. filter hole without turning. - Page 41 * Fuel oil level 1.Open the fuel tank cap. 2.Check the fuel oil level,and refuel if necessary. 3.Refuel up to the shoulder of the fuel filter. 4.Reinstall the fuel tank cap. - 7 -...
- Page 42 * Air cleaner 1.Remove the clip and dismantle the air 2.Turn off the nut and washer,and dismantle cleaner housing or turn off the nuts and the filter element. air cleaner cover. 3.Dismantle the filter element. 4.Wash 5.Slap slightly the filter element for several times.
- Page 43 PART 4 STARTING OF GENERATOR 1.Remove all the loads from A.C socket 3.Push the choke lever to 2.Set the fuel cock to "on" and switch off the A.C breaker. "open(choke)" position. position. Carburetor throttle valve 4.Turn the generator start 5.Pull the starter handle until 6.Once the generator switch to "on"...
- Page 44 Tips and cautions for operating : 1.Do not start two or more machines simultaneously.Start them one by one. 2.Warm up the engine without load for about 3 minutes.If the generator is to supply power to more than one appliances,be sure to connect them one by one with higher current rated first. Most appliance motors require more than their rated wattage for start up.Do not exceed the current limit specified for any one socket.
-
Page 45: Stopping Of Generator
PART 5 STOPPING OF GENERATOR 1.Switch off the AC breaker. 2.Turn the generator switch to "off" 3.Set the fuel cock to "off" position. position. Note:To stop the generator in emergency,turn the generator switch to "off" position. - 11 -... -
Page 46: Periodic Checks And Maintenance
PART 6 PERIODIC CHECKS AND MAINTENANCE * PERIODIC CHECKS AND MAINTENANCE Periodic checks and maintenance are very important for keeping the engine in good condition and dependable.The generator consists of gasoline engine,alternator,control panel and frame,etc. Shut off the engine before performing any maintenance.If the engine must be ran,make sure the area is well ventilated.The exhaust contains poisonous carbon monoxide gas. - Page 47 * Machine oil replacement 1.Turn and then take out the 2.Turn off the drain plug, 3.Screw on the drain plug. dipstick. and empty the machine oil in the crankshaft. 4.Fill machine oil up to the upper level 5.Reinstall the dipstick - 13 -...
- Page 48 Machine oil:4 stroke gasoline engine oil-SE,SF from API Service Classification or SAE 10W-30 equivalent to SG class. Low air temperature (below 10* ):recommended machine oil SAE10W-30 Frigid air temperature(below -15* ):SE,SF from API Service Classification or SAE10W-30 equivalent to SG class. * Air cleaner (refer to page 8:Air cleaner) * Spark plug 1.Dismantle the spark plug high-...
- Page 49 4.Measure the electrodes clearance. 5.Reinstall the spark plug and high- pressure cap. 0.7-0.8mm * Fuel filter maintenance 1.Set the fuel cock to "off" position,and dismantle 2.Clean the fuel filter cup thoroughly. the fuel filter cup. - 15 -...
- Page 50 3.Mount a new rubber ring and the filter cup securely * Maintenance for a long time storage If the generator should be stroed for a long time,the following preparation should be made: 1.Screw off the fuel drain plug,and empty the fuel inside the carburetor. 2.Turn off the oil filter plug and oil drain plug, and empty the machine oil inside the crankcase.
-
Page 51: Troubleshooting
PART 7 TROUBLESHOOTING Cause Remedy Fuel oil is not enough Refuel Engine can't The switch is not at "on" position Turn it to "on" position start Check and fill in lube oil to Lube oil is not enough proper level Start the engine according to The speed and force to pull the requirement of proper starting... - Page 55 BG2000 BG2000ECO RoHS COMPLIANT 2002/95/EC 2010...
