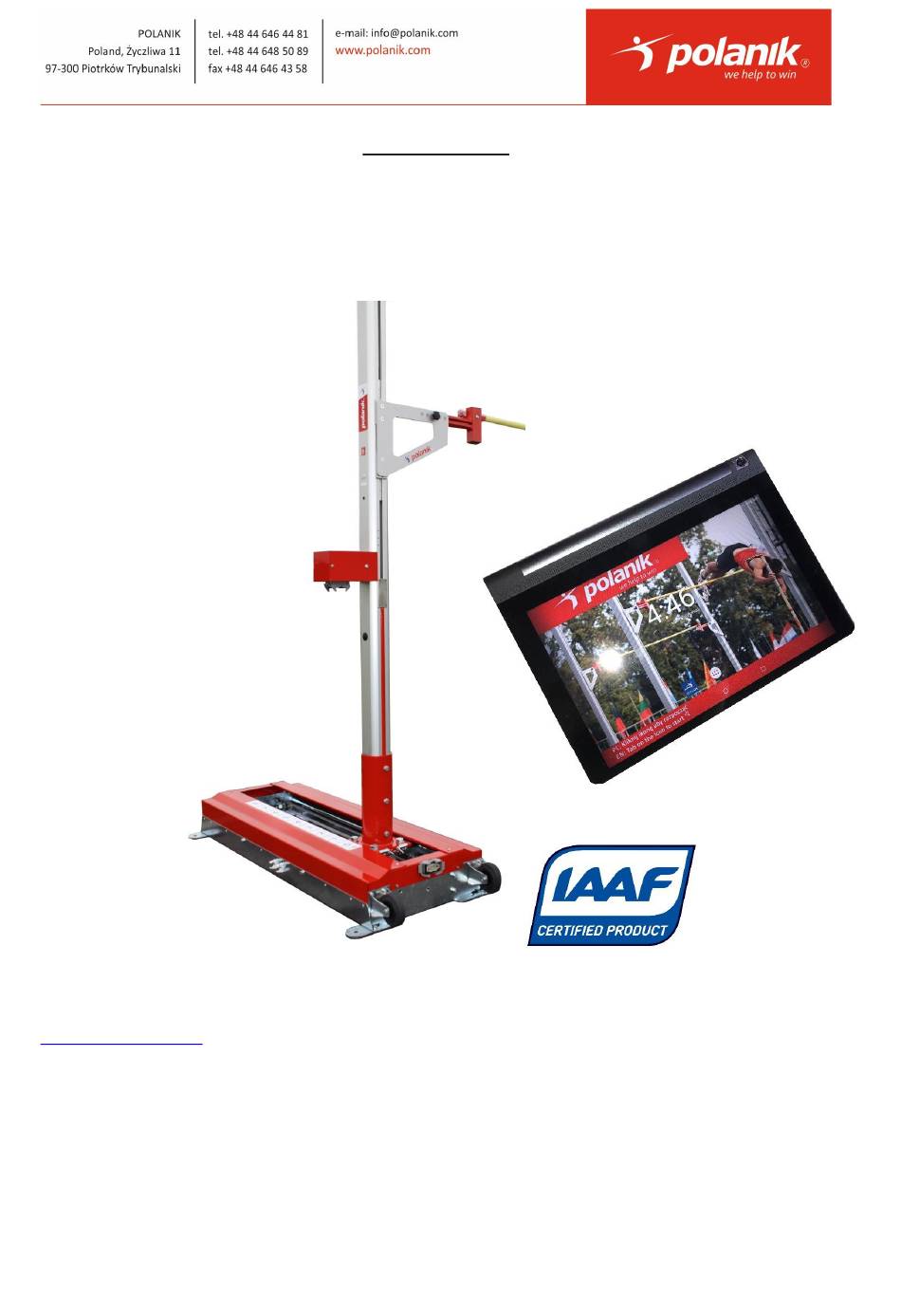

- Page 1 USER MANUAL Competition pole vault electric stand set - wireless operation STT11-65E File: 2019-05-22 PRODUCT SUPPORT Pawel Ciechanowski p.ciechanowski@polanik.com...
- Page 2 That is why training and use during sports events have to be always supervised by authorized sports personnel. In no event shall Polanik be liable for any special, incidental, indirect or consequential damages in connection with the purchase or use of POLANIK products or costs over the original cost of the product.
-
Page 3: Table Of Contents
X. IAAF certificate ................................. 22 I. General description and use STT11-65E is the result of Polanik’s long and profound experience in the field of the athletics equipment production. Our electrical version of the competition PV stand completes fully the product offer. Each stand is driven by two step motors. -
Page 4: Parts List
II. Parts list STT11-65E is a complete set of two electric pole vault stands which are designed for athletics competitions of pole vaulting. The set includes the following elements: Item Q-ty Part/set description Part/set sketch Pcs. Left base + screw M 20x40 (4 pcs) - Page 5 + countersunk hex key screw M 10x40 (4 pcs) CPU (central processing unit) + power supply cable 230V PTC (portable tablet computer) Bracket for installing TV camera or sports camera on crossbar support arm STT11-65E – wireless operation User manual 5/22...
-
Page 6: Technical Specification
6,65 x 0,35 x 0,35 [m] /stand post 1,70 x 0,85 x 0,65 [m] /stand bases and supports 0,79 x 0,57 x 0,34 [m] /CPU with cabling and PTC Set gross weight [kg] ~360 STT11-65E – wireless operation User manual 6/22... - Page 7 STT11-65E dimensions [mm] STT11-65E – wireless operation User manual 7/22...
-
Page 8: General Description Of Assembly
After that stage has been completed you have to remove the safety bars. safety bar screws safety bar immobilizes the trolley holes to fasten the base to the ground STT11-65E – wireless operation User manual 8/22... -
Page 9: Assembly
LA – landing area projection PV – Pole Vault box [mm] crossbar support mounting holes in the runner Screw the crossbar supports to lying posts (left and right) using screws screwed into guides on posts. STT11-65E – wireless operation User manual 9/22... - Page 10 After that the post is ready to be installed on the base trolley. Press hinge pin levers according to the arrows. Place hinge pin levers between catches. Position stand post foot over the hinge. hinge pin STT11-65E – wireless operation User manual 10/22...
- Page 11 Lift the post to vertical position. Then one person holds the post and the second one screws “S” (unscrewed before M20x40 screws (4 pcs) with washers 20 (4 pcs). Screw the screw which is on the opposite side of post’s hinge first. STT11-65E – wireless operation User manual...
- Page 12 140 mm (holes must be of dia. 16 mm and 130 – 150 mm deep). The concrete base is to be dry and non- cracked. For the installation of the anchors please see their producer’s instruction. The stands are ready for assembling the cabling. STT11-65E – wireless operation User manual 12/22...
-
Page 13: Cabling Assembly
No. 1 to crossbar supporter’s motor – left stand No. 2 to base’s motor– left stand No. 3 to crossbar supporter’s motor – right stand No. 4 to base’s motor – right stand STT11-65E – wireless operation User manual 13/22... - Page 14 The cable to the post motor should be placed outside. It needs free room to move within the range 0-80 cm towards the landing area. Connect CPU with the power supply using the included cable and switch on the power. STT11-65E – wireless operation User manual 14/22...
- Page 15 If the tablet does start, please see the tablet instruction manual for details The PV stand operating program should start automatically. Tap the icon to start. The program window should be displayed. STT11-65E – wireless operation User manual 15/22...
- Page 16 3. Switch on the tablet by pressing and holding the power button for 3s. Let the tablet complete booting 4. The welcome screen of the PV stand program should appear automatically. 5. Tap the icon of the PV stand STT11-65E. 6. If the wireless connection between the tablet and the uprights has not been automatically established please press “CONNECT”.
- Page 17 Move the screen up to see the bottom of the screen with help guides. Tab your language (PL, EN, RU, DE, ES or FR) to see the help text. Follow the help guide. STT11-65E – wireless operation User manual 17/22...
-
Page 18: How To Switch Off Properly The Pv Stands
VII. How to switch off properly the PV stands Switch off the tablet: Press and hold the power button for 3 s. Confirm switching off. Confirm “OK”. Switch off the power in CPU. STT11-65E – wireless operation User manual 18/22... -
Page 19: Maintenance
Please follow the below steps to install the backup crank: Step Description Illustration Shut down the power and disconnect all the cables first. The backup crank is fastened to the upright foot. Unscrew the butterfly nut. STT11-65E – wireless operation User manual 19/22... - Page 20 Take off the crank. Take off the mounting plate with the blocking screw. Unscrew the blocking screw from the plate. Use the crank to unscrew the washer of the stand axle counter clockwise. STT11-65E – wireless operation User manual 20/22...
- Page 21 Adjust the desired height and then remove the crank. Turn the blocking crew to immobilize the crossbar support. Use the backup measuring scale on the post to position the crossbar supports. STT11-65E – wireless operation User manual 21/22...
-
Page 22: Iaaf Certificate
X. IAAF certificate STT11-65E – wireless operation User manual 22/22...
