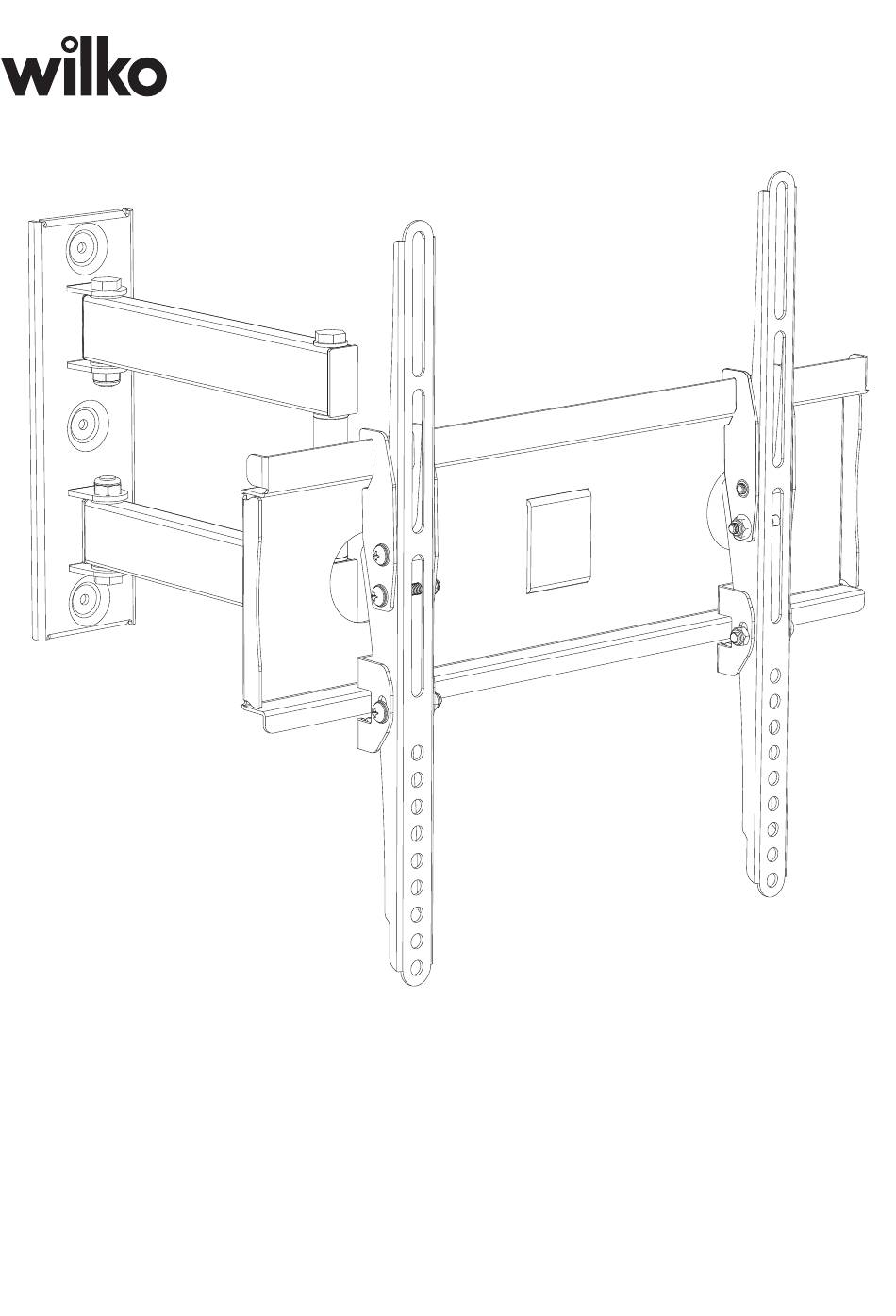

- Page 1 WL44 multiposition TV wall mount to 55" 40kg assembly instructions 464430 rev00...
- Page 2 Please Read Retain all packaging in case the bracket needs to be returned. Contents may vary from photography/ Illustrations. You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. This product is intended for indoor use only.
- Page 3 Step 1 Step 2 M4 x 16mm M4 x 25mm M5 x 16mm M6 x 16mm M6 x 25mm M6 x 35mm M8 x 16mm M8 x 25mm x4/8 A/B+I A/B+I+L A/B+I+K+L C+I+L C+I+K+L D/E/F+J D/E/F+J+L D/E/F+J+K+L G/H+L G/H+K+L...
- Page 4 Step 3 Solid Wall Fixing 65mm (2 ") 9/16 Ø 8mm (5/16") Remove dust from hole...
- Page 5 Step 3 Wood Stud Fixing 50mm (2") Ø 3mm (1/8") Ensure bracket is in the centre of the wood stud...
- Page 6 Step 4...
- Page 7 Step 5 Cable Management Optional Lock tilt Shop online wilko.com PROMISE Shop with confidence. If not completely satisfied, simply return this product with the receipt, within 28 days, and we’ll gladly exchange it or refund you. That’s a promise. This does not affect your statutory rights.
