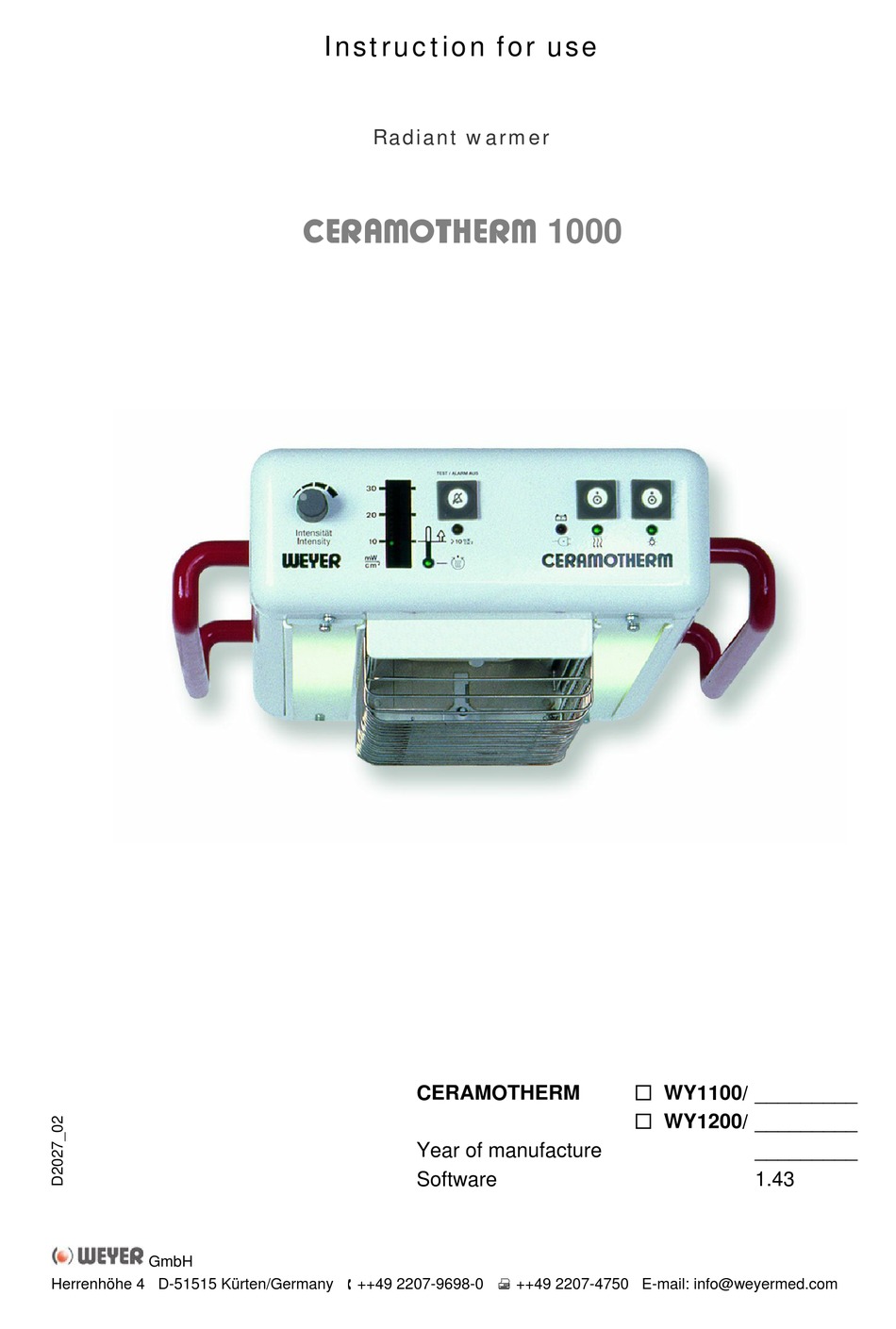

  • Page 1 Instruction for use Radiant warmer DFSBNPUIFSN 1000 CERAMOTHERM WY1100/ _________ WY1200/ _________ Year of manufacture _________ Software 1.43 GmbH Herrenhöhe 4 D-51515 Kürten/Germany ++49 2207-9698-0 ++49 2207-4750 E-mail: info@weyermed.com...
  • Page 2: Table Of Contents

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Normal use ..........................3 General safety instructions ....................3 Transport and storage ......................3 Ambient requirements ......................3 Mounting / Installation ......................4 Structure and operating principle ..................5 Start-up ............................5 Functions ..........................6 First switch-on...........................7 Function processes and alarms....................8 End of operation ........................8...
  • Page 3: Normal Use

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Normal use The radiant warmer CERAMOTHERM 1000 is used to maintain the body temperature of patients, especially infants and children, during postnatal care, baby changing, examination, treatment and care as well as for pre-warming of patient beds.
  • Page 4: Mounting / Installation

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Mounting / Installation Depending on the supplied model the radiant warmer CERAMOTHERM 1000 can be mounted at the wall or ceiling by qualified persons by observing our instructions for installation. The radiant warmer can also be mounted at a mobile stand.
  • Page 5: Structure And Operating Principle

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Structure and operating principle The radiant warmer is used for pre-warming the patient pad and for maintaining the patient's body temperature during the treatment. It generates infra-red radiation energy which is absorbed by the skin an converted into body heat.
  • Page 6: Functions

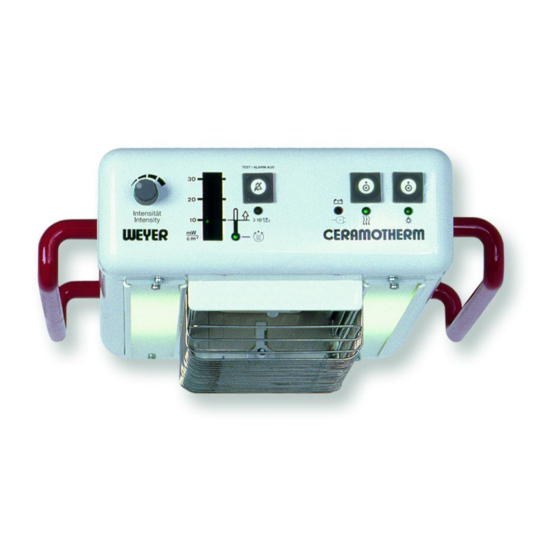

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Functions Test / Alarm Intensity >10 cm² DFSBNPUIFSN cm² Button illumination On / Off. Button heating On / Off. Label next maintenance. Alarm reset button: a.) By pushing the button the audible alarm of the safety function >10 mW/cm² is reset and the radiant warmer proceeds heating at the selected intensity for further 15 minutes.
  • Page 7: First Switch-On

    Instruction for use Radiant Warmer CERAMOTHERM 1000 First switch-on First of all make sure that the radiant warmer is connected to the power supply. The pilot lamp for the safety cut-off at the bottom side of the device indicates the readiness for operation.
  • Page 8: Function Processes And Alarms

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Function processes and alarms Heating-up After switch-on with button (2) the device starts heating. The desired radiation intensity can be selected with knob (13) and is indicated as LED spot in display (12). Depending on the selection and the ambient temperature the heating-up time will be between 3 and 15 minutes.
  • Page 9: Use

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Warnings for use General • The radiant warmer is not suitable for the use in explosion-hazardous areas. • The ambient conditions for the radiant warmer must in no case be influenced by any warming or air condition devices.
  • Page 10: Radiant Warmer

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Radiant warmer Intensity Intensity selection The radiant warmer generates a long-wave radiant selection display heat. The radiation intensity effective to the patient is selected at the display unit of the device. For dazzle-free illumination of the patient area two...
  • Page 11: Maximum Intensity

    Instruction for use Radiant Warmer CERAMOTHERM 1000 The intensity selection is mainly dependent from the baby's respectively the patient's weight, age, maturity, the anamnesis as well as the ambient conditions. When the radiant warmer is used for long-term care, the radiation intensity has to be selected with utmost care.
  • Page 12: Mounts

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Mounts Static arrangement to the patient pad Ceiling mount Distance between patient pad and bottom line of solid ceiling max. 2600 mm. Wall holder Wall holder Lateral mounting Flexible arrangement to the patient pad Wall arm 320 mm, 480 mm or 600 mm long Fixed distance to the patient pad.
  • Page 13 Instruction for use Radiant Warmer CERAMOTHERM 1000 Unfasten the fixing facility (F) by anti-clockwise turning. Rotate respectively swivel the warmer to the desired position. Use the two handles and do not touch the safety guard. Take care that the wall arm will not clash with other devices in the ambience, as e.g.
  • Page 14: Height-Adjustable Mounts

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Height-adjustable mounts Application to babies and defenseless persons under surveillance only! The safety distance of 650 mm between the bottom line of the radiant warmer and the patient pad must be maintained. If necessary it must be secured in a mechanical way, i.e. by a stop in the height-adjustable spring-balanced arm.
  • Page 15: Mobile Radiant Warmers

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Mobile radiant warmers Application to babies and defenseless persons under surveillance only! Height-adjustable mobile stand, 4 anti-static castors, 2 with kickstop, rotation of warmer 360°, vertical adjustment ± 45°. Unfasten the knob of the height-adjustment (1) by anti- clockwise turning and adjust the stand to the lowest position.
  • Page 16: Safety And Alarm Functions

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Safety and alarm functions Test / Alarm Intensity >10 cm² DFSBNPUIFSN cm² Display / Alarm tone Cause / Effect Measure Lamps (7) flashing Short tone every Battery capacity Replace battery (9V-E Block) at the 10 seconds not sufficient for power failure alarm.
  • Page 17: Cleaning And Disinfection

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Cleaning and disinfection The radiant warmer should be cleaned and disinfected for every new patient, however, at least once per week. Cleaning agents and disinfectants Never use inflammable disinfectants! Do not use scouring cleaning agents. Use only disinfectants on the basis of aldehydes and quaternary ammonium merges.
  • Page 18: Maintenance

    Maintenance = Inspection, preventive maintenance, repair. In order to ascertain the safe operation of the infant radiant warmer CERAMOTHERM 1000, we recommend an inspection by qualified persons once per year which include the following checks: • Verification that the actual use is in conformance with the normal use.
  • Page 19: Technical Data

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Technical Data Transport and storage Temperature 0 to 70°C Relative air humidity 15 to 95 % Atmospheric pressure 210 to 1100 hPa The radiant warmer must not be exposed to strong vibrations. Ambient requirements Temperature 18 to 30°C...
  • Page 20: Classification

    Instruction for use Radiant Warmer CERAMOTHERM 1000 CERAMOTHERM 1100 CERAMOTHERM 1200 Max. power input 690 W / 3 A 900 W / 3,9 A Heating element(s), ceramic 1 x 600 W 2 x 400 W each Intensity selection / irradiated area...
  • Page 21: Mounts

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Mounts Static arrangement to the patient pad Ceiling mount Distance between patient pad and bottom line of solid ceiling max. 2600 mm. Wall holder Wall holder Lateral mounting Standard distance to the patient pad: 900 mm...
  • Page 22: Flexible Arrangement To The Patient Pad

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Flexible arrangement to the patient pad Upgrade option: Wall arm 320 mm, 480 mm or 600 mm long. Vertical Fixed distance to the patient pad. adjustment ± 45° Upgrade option: Horizontal swiveling 180° with fixing facility, Vertical extension 250 mm rotation of warmer 360°.
  • Page 23: Height-Adjustable Mounts

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Height-adjustable mounts Application to babies and defenseless persons under surveillance only! The safety distance of 650 mm between the bottom line of the radiant warmer and the patient pad must be maintained. If necessary it must be secured in a mechanical way, i.e. by a stop in the height-adjustable spring-balanced arm.
  • Page 24: Mobile Radiant Warmers

    Instruction for use Radiant Warmer CERAMOTHERM 1000 Mobile radiant warmers Application to babies and defenseless persons under surveillance only! Height-adjustable mobile stand, 4 anti-static castors, 2 of them with kickstop, rotation of warmer 360°, vertical adjustment ± 45°. Distance mark securing the safety distance to the patient pad.
  • Page 25: Declaration Of Conformity

    Instruction for use Radiant Warmer CERAMOTHERM 1000 D2027_02 25/25...
