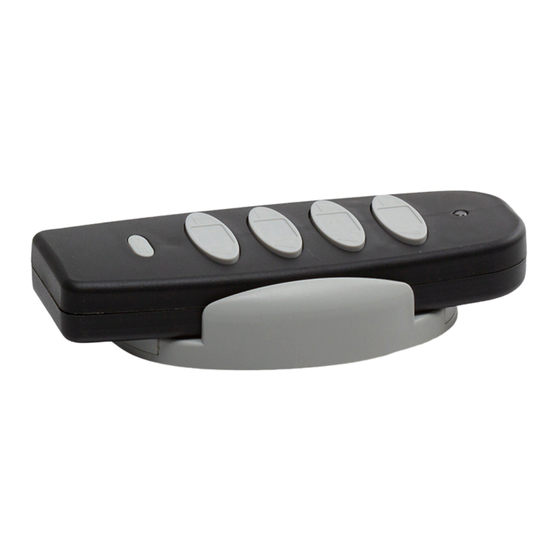

Dyer D+H RCR 11-2 Instructions

RCR 11-2 / RCR 11-4 instructions
RCR 11-2
RCR 11-4

Intended use

- Remote control for controlling of D+H radio
drives and radio modules
- For VENTIC-Solar, GVL 8401-K-RC and
BDT 010-RC
- With 2 or 4 control levels
- Radio frequency 868 MHz – approved in the
entire EU (except for Bulgaria)
- 128 Bit AES coding
- High reliability against external operation –
32 Bit address codification and alternating
code with every keystroke (Code-Hopping)
- Multiple drives controllable with
one remote control

Technical Data

Radio frequency :868,3 MHz / FSK
Encryption :AES / 128 Bit
Radio standard :ETSI EN 300220-1:2010
:ETSI EN 301489-1:2011
:ETSI EN 301489-3:2002
Transm. power :app. 10 mW (e.r.p.)
Transm. range :up to app. 100 m (free field)
Material :ABS, POM
Battery type :2x lithium CR 2032

Scope of supply

1x Radio remote control
1x Wall Fastening for radio remote control
