Operating Instructions

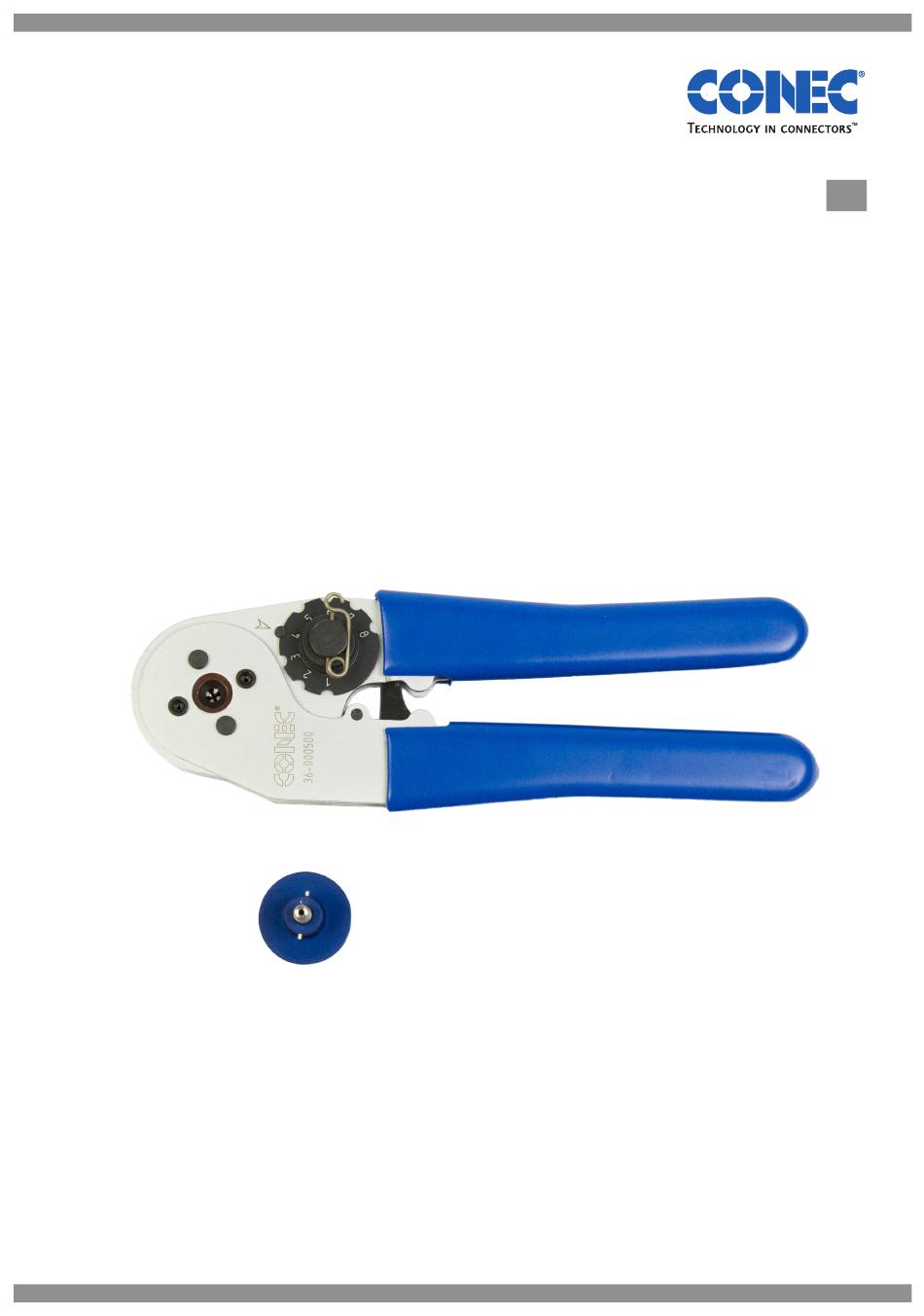

Four indent crimping tool SelectorCrimp
EN
Operating Instructions

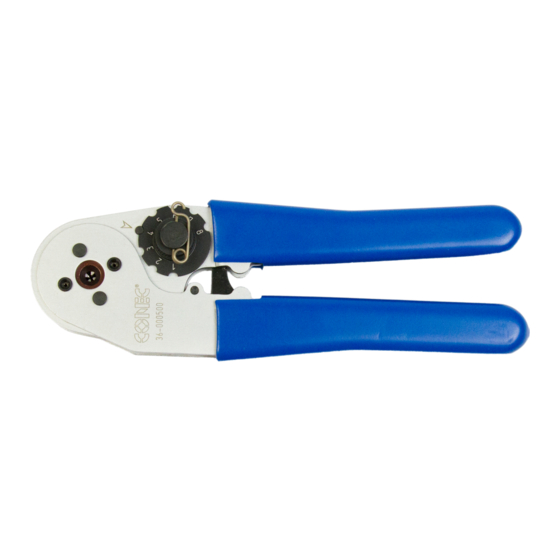

Four indent crimping tool SelectorCrimp
Art.-No. 36-000500 for M8 + M12 Crimp Series
Possible Cross-section range of the Crimp Tool
0.03 – 0.56 mm² (AWG 32 – 20)
Before starting any work, read these operating instructions!
Rev.: 2017-03-03
1 / 7
Advertisement
Table of Contents
Summary of Contents for Conec 36-000530
- Page 1 Operating Instructions Four indent crimping tool SelectorCrimp Operating Instructions Four indent crimping tool SelectorCrimp Art.-No. 36-000500 for M8 + M12 Crimp Series Possible Cross-section range of the Crimp Tool 0.03 – 0.56 mm² (AWG 32 – 20) Before starting any work, read these operating instructions! Rev.: 2017-03-03 1 / 7...
- Page 2 Premature opening of the crimping tool (emergency unlocking) Indenter setting Changing the positioner Checking the tool Setting values / Locator for M12 Crimp series Service and maintenance CONEC Elektronische Bauelemente GmbH Ostenfeldmark 16 D-59557 Lippstadt Tel: +49 2941/ 765-0 Fax: +49 2941/ 765-65 E-Mail: info@conec.com www.conec.com...
- Page 3 Operating Instructions Four indent crimping tool SelectorCrimp 1 General The four indent crimping tool of the “SelectorCrimp” series have been designed according to the latest state of technology and to the recognised safety-related regulations. The tool must only be used when fully serviceable. The special crimping tool can be used to process tourned pin and socket contacts in accordance with M39029 in the wire cross-section range of AWG 32 –...
- Page 4 Operating Instructions Four indent crimping tool SelectorCrimp Icons are used to mark sections of text as described below. Ensure you follow these instruc- tions and take especial care in such situations. Also provide other users and technicians with a full set of health and safety instructions! WARNING! This section warns the reader about a potentially dangerous situation that can lead to death or serious physical injury.
- Page 5 Operating Instructions Four indent crimping tool SelectorCrimp Pawl Figure 2 ATTENTION! If a crimp process is interrupted, the crimp must be repeated using a new contact. Crimped contacts must not be used. Risk of fire! 4 Indenter setting · Open the pliers. ·...
- Page 6 M22520/3-01 prior to every start-up time. The gauges are adapted to the tool and are used to determine the permitted wear! Alternatively, a Rennsteig GO-NOGO gauge pair may be used. The Conec GO-NOGO gauge pair is manufactured according to the same dimensions as the commercially available GO-NOGO M22520/3-01.
- Page 7 As long as the tool is in the permitted wear range of the GO-NOGO gauge, it can be used without hesitation. However, if a regular check of the tool is required, the tool be sent to a specialist workshop authorized by Conec. Please contact us under the adress shown below. Repairs/Service...
