Summary of Contents for Blackbird MP24740

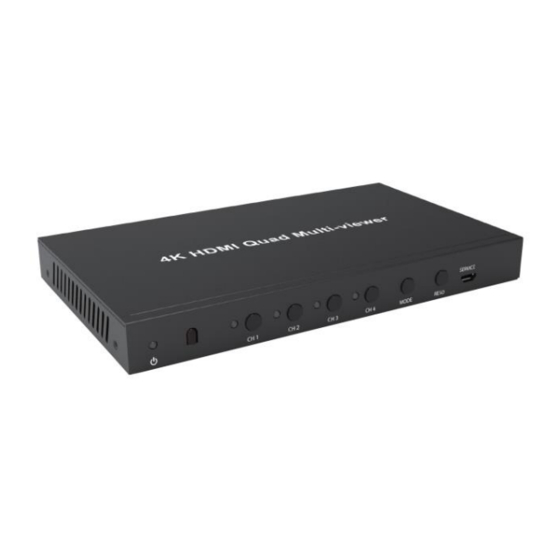

- Page 1 4K 4x1 HDMI® Quad Multiviewer P/N 24740 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Prior to operation, check the unit and power cord for • physical damage. Do not use if physical damage has occurred. Before plugging the unit into a power outlet, ensure that • the outlet provides the same type and level of power required by the device.
- Page 4 INTRODUCTION This 4K 4x1 HDMI® Quad Multiviewer allows you to view four HDMI video sources on a single HDMI and a single VGA display at the same time. It features five display modes, three of which display all four inputs. It supports HDMI video resolutions up to 4K@30Hz and VGA resolutions up to 1920x1200.
-
Page 5: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Product Overview
PRODUCT OVERVIEW Front Panel POWER LED: The LED illuminates green when power is applied and red when in standby mode. IR: IR receiver window for accepting signals from the included IR remote control. CH1/CH2/CH3/CH4: Four buttons for selecting the input source for each of the four channels. - Page 7 for about 5 seconds to open or close the window display frame. 6. SERVICE: USB port for servicing at the factory only. Rear Panel INPUT: Four HDMI® ports for connecting HDMI video source devices. HDMI: HDMI port for connecting an HDMI display. VGA: VGA port for connecting a VGA display.
- Page 8 Remote Control : Press the button to turn the unit on or to put it into standby mode. OSD: Press the button to open or close the display window frame. RES: Press the button to cycle through the supported output video resolutions.
- Page 9 DISPLAY MODES This multiviewer features five display modes, as shown in the images below. MODE 1: This mode is a full screen display of a single input • source. Press one of the CH buttons on the front panel or the numbered Source buttons on the remote control to select which of the four inputs is displayed.
- Page 10 the front panel illuminate to indicate that all four channels are active. Press one of the CH buttons on the front panel or one of the numbered Source buttons on the remote control to cycle that channel through the available inputs. MODE 4: This mode divides the screen vertically into two •...
-
Page 11: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM... -
Page 12: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 13 4K@30Hz, 1920x1200@60Hz, Supported HDMI® 1920x1080@50/60Hz, Resolutions 1280x720@50/60Hz, 1024x768@60Hz 1920x1200@60Hz, 1920x1080@50/60Hz, Supported VGA Resolutions 1280x720@50/60Hz, 1024x768@60Hz HDMI Version 1.4b HDCP™ Version Color Depth 8-bit/channel RGB, YCbCr 4:4:4, Supported Color Spaces YCbCr 4:2:0 Supported Analog Audio LPCM 2.0 Formats Supported LPCM Sampling 44.1kHz and 48kHz Rates Input Power...
-
Page 14: Regulatory Compliance
Operating Temperature +32 ~ +104°F (0 ~ +40°C) Storage Temperature -4 ~ +140°F (-20 ~ +60°C) Operating Humidity 20 ~ 90% RH, noncondensing 7.3" x 5.0" x 0.8" Dimensions (185 x 128 x 20 mm) Weight 21.0 oz. (595g) REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. - Page 15 may be required to correct any interference to radio or television communications at your own expense. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 16 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
