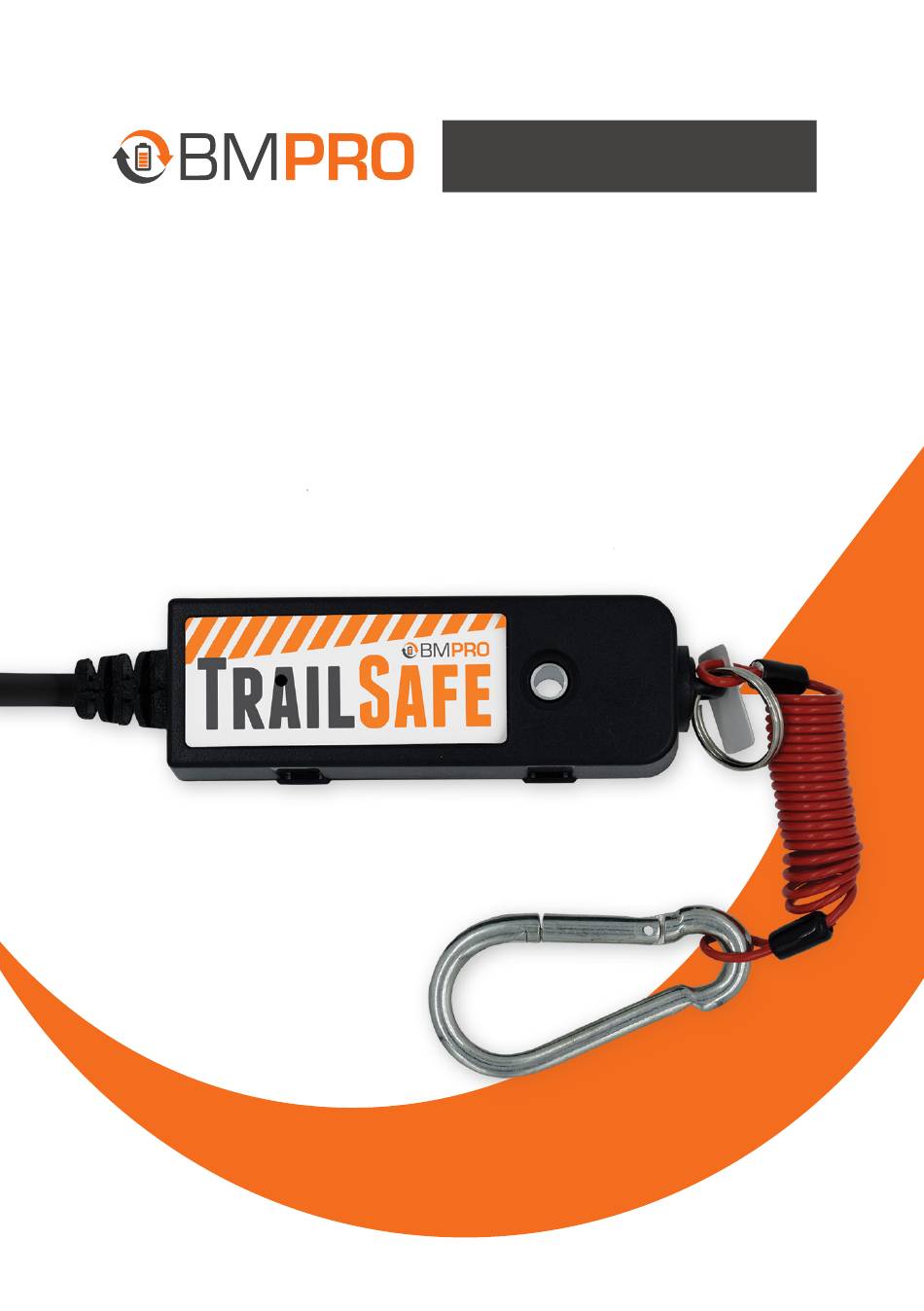

- Page 1 OWNER’S MANUAL TrailSafe TEAMBMPRO.COM...
- Page 3 To learn more about the BMPRO range of products, please visit our website teambmpro.com TEAM BMPRO...
-
Page 4: Safety Precautions
Please refer to section to check for faults. WARNING Correct installation is the most critical factor in ensuring the safe use of the TrailSafe If every consideration of these instructions has been satisfied, the TrailSafe will be safe to operate. -
Page 5: Table Of Contents
SERVICING FAQS + TROUBLESHOOTING SPECIFICATIONS WARRANTY TERMS AND CONDITIONS Designed by BMPRO, one of Australia’s leading power solution experts, the BMPRO range of MANUAL PART 034923 products are proudly Australian-Made in Melbourne, Victoria and represent a high-quality REV 1.0 product that will provide years of service. -
Page 6: About The Trailsafe
TrailSafe also provides an indication of the charge status of the house battery and checks the condition of the Pull Pin and effective activation of the brakes. This information is displayed via a multi coloured LED on the TrailSafe unit and also on the Bluetooth TrailCheck available for in-car monitoring if installed. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS MOUNTING LOCATION Secure TrailSafe to the right hand side draw bar of the trailer (the driver’s side) approximately 300mm from the tow ball hitch. Mount horizontally on top or side of the draw bar. MOUNTING METHOD Mount on the arm of the trailer using the supplied mounting screw or similar. Only one mounting point is required so that the unit can swivel in an emergency. -
Page 8: Wiring Instructions
WIRING INSTRUCTIONS FOR TRAILSAFE The TrailSafe has multiple colored wires coming from the rear side which require connection to ensure correct functionality. As this is a safety critical system all wiring should be done by a suitably qualified Auto Electrician. - Page 9 A basic charging means such as diode from the Auxiliary to the house battery may be employed in simple systems. An external automotive-grade fuse is required to be fitted (30 A maximum) between TrailSafe and the battery to protect against wiring faults and issues.
-
Page 10: Initial Self Test For Trailsafe
INITIAL SELF TEST FOR TRAILSAFE Before starting, ensure TrailSafe Pull Pin is in place. Power up TrailSafe from 12V battery as per wiring instructions. Then the LED will display Continuous Flashing PURPLE, indicating 1st stage of calibration is in progress for up to 5 minutes. -
Page 11: Led Status Indicators
Put pull pin back in to restart. calibration stage completed House battery capacity sufficient for 15mins of emergency braking operation TrailSafe standby or no power If necessary, check TrailSafe by depressing brake. House battery may have Check battery to ensure at least 10Ah house insufficient capacity for 15mins battery capacity available. -
Page 12: Servicing
SERVICING Do not attempt to service the TrailSafe series products yourself or dismantle, modify or repair the TrailSafe series products yourself; this will void your warranty. If your TrailSafe product requires servicing, please consult your BMPRO dealer or visit teambmpro.com for assistance. -
Page 13: Specifications
Can I use a wired in-car monitor? A wired 12VDC battery voltage indicator can be used with TrailSafe series if desired. When I pull the pin, the LED displays flashing -ORANGE? The pull pin internal contacts may have become corroded particularly by exposure to salt water or dirt leading to the resistance building up which may cause the brakes to not operate correctly or for as long as desired. -
Page 14: Warranty Terms And Conditions
7. BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product in order to initiate a warranty claim. - Page 16 BMPRO TEAM +61 3 9763 0962 sales@teambmpro.com BMPRO 19 Henderson Rd, Knoxfield VIC 3180 Australia .COM teambmpro.com...
Need help?
Do you have a question about the TrailSafe and is the answer not in the manual?
Questions and answers
Brake lights are staying on without the car connected
The brake lights on the BMPRO TrailSafe stay on when the car is not connected because the system has detected a disconnection, likely due to the Pull Pin being detached. This triggers the emergency braking system, which activates the trailer's brakes and brake lights using power from the house battery. The lights remain on as long as the battery has charge or until the pin is reinserted.
This answer is automatically generated
what colour should the trailsafe be when ready to travel
