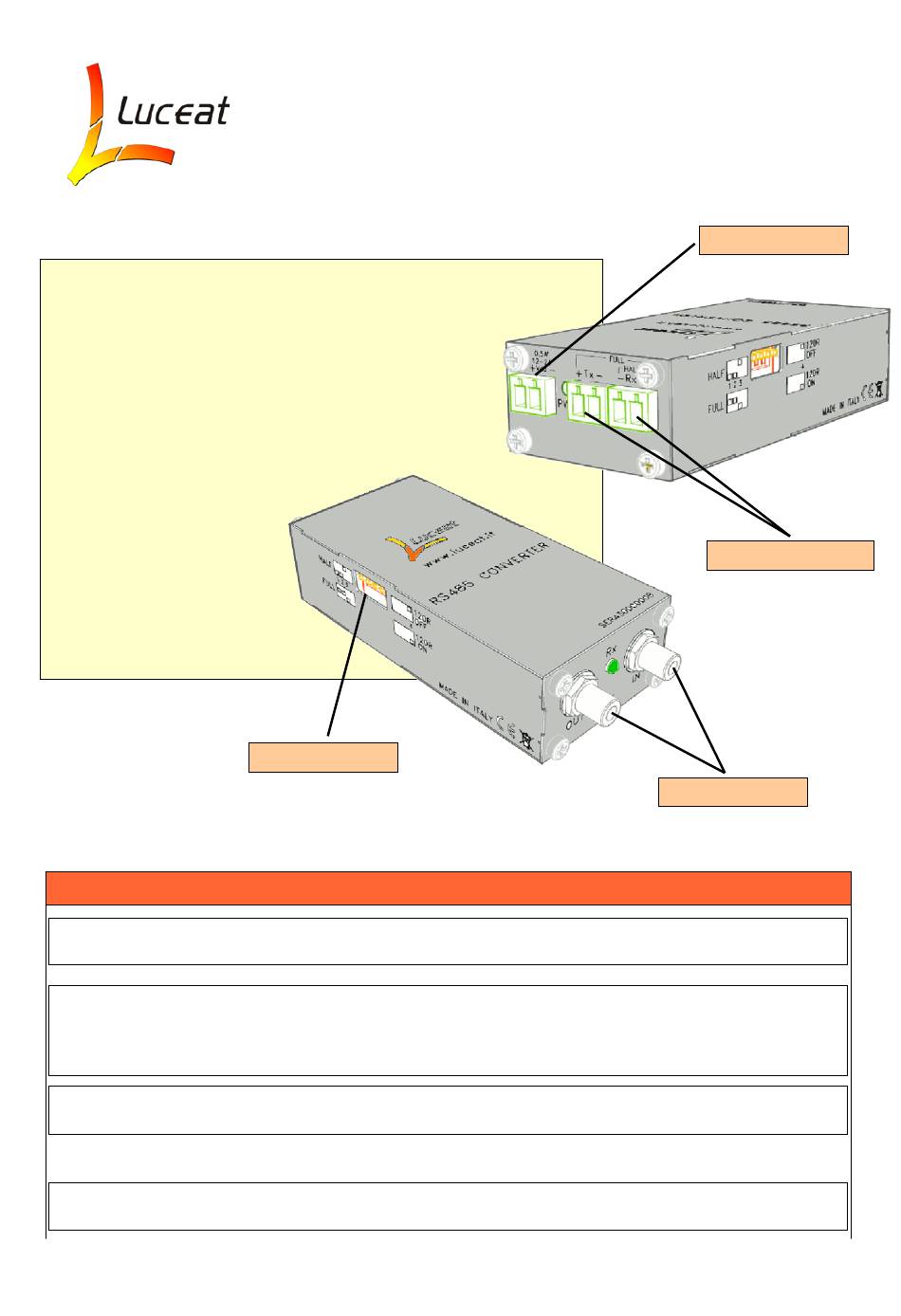

Luceat RS 485 Installation Manual

Transmission type: mono-directional (1 fiber) and bi-directional (2 fibers)

Supported transmissions: FULL and HALF Duplex

Transmission speed: 300bit/s to 115200bit/s

Transmission distance on plastic fiber: up to 300m

Line termination: 120ohm selectable via Switch

Electrical connections selectable via Switch:

HALF DUPLEX: Rx+ (A) and Rx- (B)

FULL DUPLEX: Transmitter: Tx+ (Y) and Tx- (Z)

Receiver: Rx+ (A) and Rx- (B)

Connectible electrical units: 32 units

Optical connections: 2xF-SMA

Power supply: 12-24Vdc +-10%

Consumption: 0,5W max

Protection grade: IP20

Weight: 85g

Certification: EMC 2004/108/CE

Temperature: -20° / +70°

Assembling: on DIN guide

- Select via Switch the transmission type (HALF or FULL duplex)

- Perform electrical connections:

- With HALF Duplex: connect only 2 wires to Rx+ e Rx- terminals

- With FULL Duplex: connect to Rx+ and Rx- the wire pair that has to transmit data to the optical door,

whereas the wire pair that will receive data from the optical door, has to be connected to Tx+ and Tx-

- Perform electrical connections with 2 or 4 wires:

- Connect the plastic optical fiber

- Supply power to the device

INSTALLATION MANUAL

DIP switch

Installation

See Tab A

RS 485

See Tab B

Power supply

Electrical connectors

Optical connectors

Table of Contents

Need help?

Do you have a question about the RS 485 and is the answer not in the manual?

Page 1 RS 485 INSTALLATION MANUAL Power supply Transmission type: mono-directional (1 fiber) and bi-directional (2 fibers) Supported transmissions: FULL and HALF Duplex Transmission speed: 300bit/s to 115200bit/s Transmission distance on plastic fiber: up to 300m Line termination: 120ohm selectable via Switch...
Page 2 Block Layout Table A (DIP switch configuration) Selector 4: it establishes whether to insert or not the 120ohm termination Selectors 1, 2, 3: they establish type of connection (HALF duplex or FULL duplex) TROUBLESHOOTING - Termination of line RS-485 (selectable by DIP Switch) prevents the signal reflection along the cable and must be inserted in each device representing one end of the connection.
Page 3 Table B (connections layout) Transmission HALF Duplex with one POF fiber (Ex.: connection between Keyboard and Speed-Dome) Transmission HALF Duplex with one POF fibers (Ex.: connection between Keyboard and Speed-Dome) (Ex.: Keyboard) (Ex.: Speed-Dome) (Ex.: Alarm Board) (Ex.: Consolle) Transmission FULL Duplex with two POF fibers Transmission HALF Duplex with two POF fibers (Ex.: connection between Computer and Computer) (Ex.: connection between Consolle and Alarm Board)
Page 4 (these behaviors increase the plastic fiber attenuation) (Do not walk on the fiber) (Do not pull hard on the fiber) (Do not make sharp bendings) Luceat Srl Via A.Canossi,18 25030 Torbole Casaglia (BS) - Italy Tel. +39 030 9771125 Fax +39 030 5533158 sales@luceat.it...
