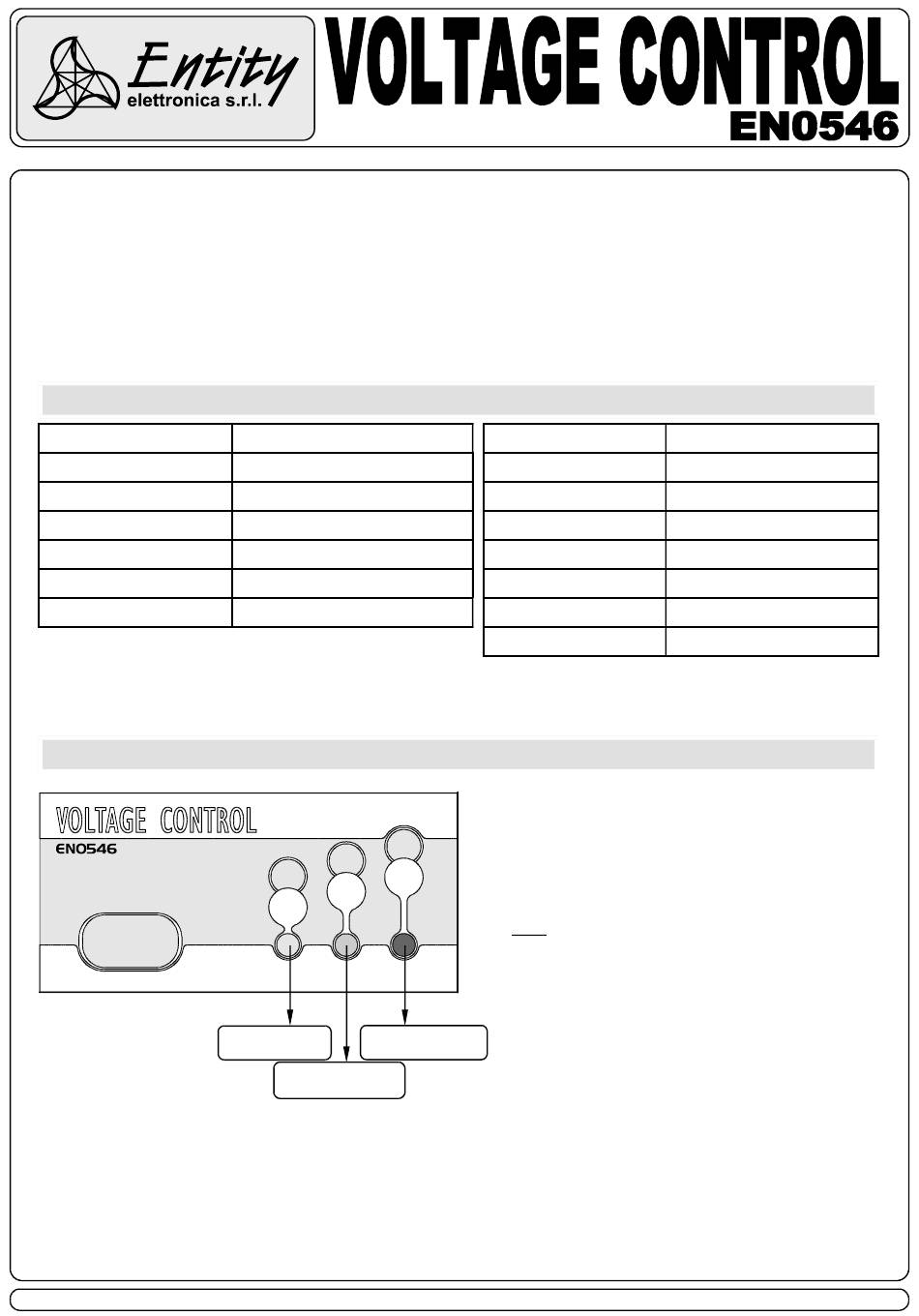

Entity EN0546 Instruction Manual

EN0546 is a device for the control of under and over voltage protection and for the visualization of the output voltage for alternators.
The ability to select the working voltage (230V three-phase, 230V single phase, 400V three-phase) EN0546 allows a wide range of applications.
The device has 3 LEDs and a button on the front, two trimmers and a switch on the back, and finally a trimmer positioned behind the front
panel.
The operation of the device in case of exceeding the maximum or minimum voltage limits must stop the supply voltage of the generator. This is
usually performed in two ways: by short-circuiting or interrupting the excitation of the alternator through a relay contact.
In the start-up phase, it is necessary to exclude the control dell'EN0546 pressing the button on the front panel to move from the stopped state of
the machine to a state of rotation.
The device notifies you via the 3-color LED's on the front if the output voltage of the generator is correct.

Specifications

Rated voltage
Time for action
Frequency
Maximum power consumption
Temperature of use
Storage temperature
Relay contact

Description keyboard

START
EN0546
400V | 230V Trifase | 230V Monofase
From 0,1 to 10 seconds
50 - 60 Hz ± 5%
3,0 VA
From -10 to +50°C (non-condensing)
From -10 to +80°C (non-condensing)
Contact in exchange
set alarm range
in the rear
440V
400V
360V
245V
230V
210V
set working voltage
in the rear
LED red "MAX"
LED yellow "MIN"
LED green "NOM"
Maximum switching voltage
Current Rating
Calibration undervoltage
Setting the maximum voltage +20% (+10% set up)
Degree of protection
Container size
Cut - out
Weight
Button Start: Button change the state of the output relè (4-5-
6);
pressing the button:
Exit 5-6 passes from NC to NO
Exit 4-5 passes from NO to NC
LED:
LED V minimum: color yellow
LED V nominal : color green
LED V maxim: color red
1
Instruction manual - rev 1.1
250V (ac)
10A
-20% (-10% set up)
IP55
96x48x76 mm
92x45 mm
260g
rev 1.1
