Single Channel Video Transmit Unit with one Bi-directional
Data Channel and two Uni-directional Alarms for a
The AMG5715 is a compact standalone one channel video transmit unit designed to transmit 1 video
signal and transmit and receive 1 data signal plus 2 Uni-directional alarms over one Singlemode
optical fibre.
The AMG5715 is designed to be powered using an AMG2001 standalone power supply.
The AMG5715 is designed to operate with an AMG5716 / AMG5716R single channel or AMG5726 /
AMG5726R dual channel video receive unit in a point to point configuration. The R suffix in the partno.
indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Singlemode Fibre Link
AMG5715
Instruction Manual
Page 1 of 8
AMG5715 Instruction Sheet D17053-
05.doc
Advertisement
Table of Contents
Summary of Contents for AMG Systems AMG5715
- Page 1 Data Channel and two Uni-directional Alarms for a Singlemode Fibre Link The AMG5715 is a compact standalone one channel video transmit unit designed to transmit 1 video signal and transmit and receive 1 data signal plus 2 Uni-directional alarms over one Singlemode optical fibre.
- Page 2 Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5715 Instruction Sheet D17053- document without notice. The information herein is believed to 05.doc...

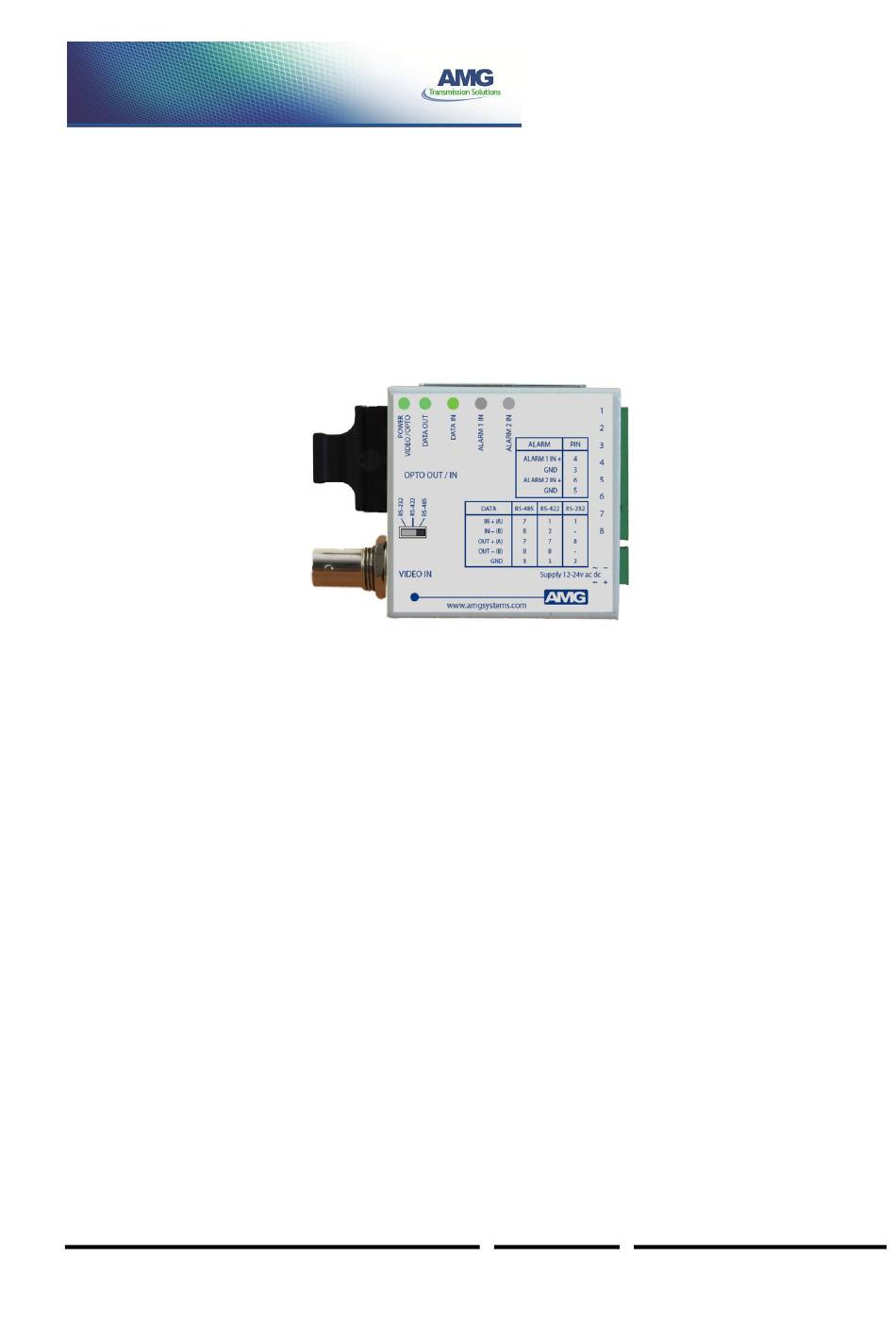

- Page 3 It also receives 1 data signal transmitted from the AMG5716. Optical Connection The AMG5715 connections are illustrated in the following example which shows two transmit units together with an AMG5726R two channel rackmount receive unit configured as a dual channel point to point system.
- Page 4 RS-422 – Switch Position - Centre RS-485 – Switch Position - Right Alarm input...........Contact Closure pull-up is 330R to +3V3 AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5715 Instruction Sheet D17053- document without notice. The information herein is believed to 05.doc...
- Page 5 ALARM 2 IN......... Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5715 Instruction Sheet D17053- document without notice. The information herein is believed to 05.doc...
- Page 6 Data and Alarm Channel Configuration The AMG5715 transmit unit sends and receives data to/from an AMG5716 or rackmount equivalent AMG5716R receive unit. The physical data interface RS-485, RS-422 or RS-232 is selectable by the user with the slide switch on the front panel.
- Page 7 Alarm Channel Configuration The AMG5715 provides 2 uni-directional alarm / contact closure inputs. Each alarm input is typically connected to a contact closure switch. Each ALARM IN+ input incorporates a 330R pull-up resistor to the internal +3V3 supply. Uni-directional Alarm Interface Connections...
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
