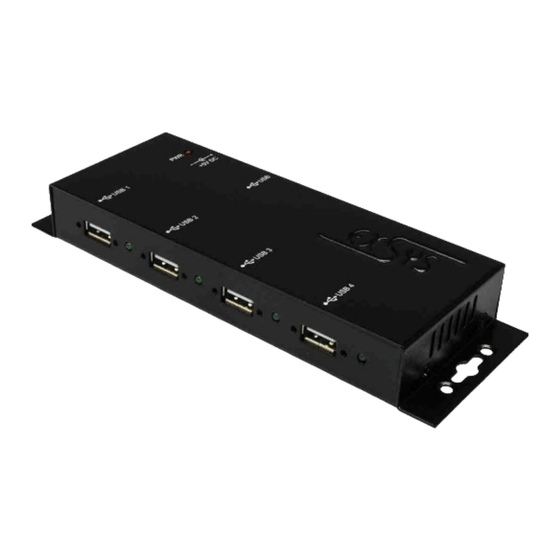

Summary of Contents for ASYS EX-1166HMV

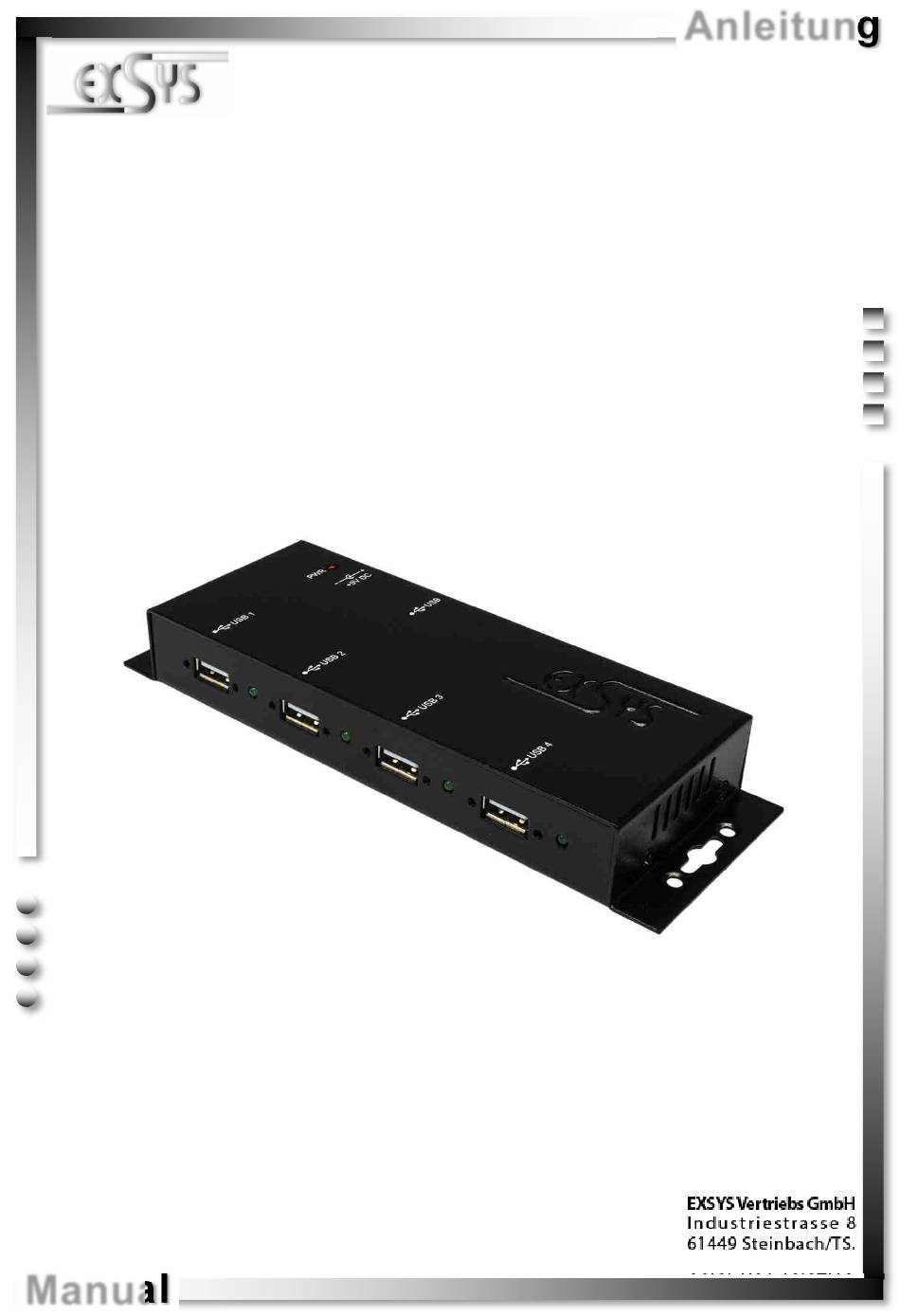

- Page 1 Anleitung EX-1166HMV 4 Port USB 2.0 Metall HUB, verschraubbar 4 Port USB 2.0 Metal HUB, screw lock Vers. 1.0 / 15.02.18 Manual...
-
Page 2: Table Of Contents
EX-1166HMV Inhaltsverzeichnis Beschreibung ······················································································ 3 Lieferumfang ······················································································ 3 Aufbau & Anschlüsse ········································································· 4-5 3.1 Aufbau······································································································ 4 3.2 Anschlüsse ······························································································ 4-5 Hardware Installation ············································································ 5 Treiber Installation ··············································································· 6 Reinigung ·························································································· 6 Technische Daten ················································································ 7 Technische Zeichnung ·········································································· 7 Index Description ·························································································... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1166HMV ist ein USB 2.0 Metall HUB für bis zu 4 Endgeräte. Der Hub ist mit 4 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX-1166HMV ist zusätzlich verschraubbar. -
Page 4: Aufbau & Anschlüsse
Deutsch EX-1166HMV 3. Aufbau & Anschlüsse 3.1 Aufbau 1x USB 2.0 Upstream B-Buchse (verschraubbar) Betriebs LED 5V Buchse (verschraubbar) für im Lieferumfang enthaltenem Netzteil 4x USB 2.0 Status LED Downstream A-Buchse für jeden Port (verschraubbar) 3.2 Anschlüsse 5V Buchse: ACHTUNG!!! Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil! ©... -
Page 5: Hardware Installation
EX-1166HMV Deutsch 3. Aufbau & Anschlüsse 3.2 Anschlüsse USB 2.0 A-Buchse: USB 2.0 A-Buchse Signal Signal DATA+ DATA- USB 2.0 B-Buchse: USB 2.0 B-Buchse Signal Signal DATA+ DATA- 4. Hardware Installation Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwi- schen PC‘s gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der EX-... -
Page 6: Treiber Installation
Deutsch EX-1166HMV 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX- 1166HMV automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgen- de Einträge sehen: Sind diese oder ähnliche Einträge vorhanden, ist der USB Hub richtig installiert. -
Page 7: Technische Daten
EX-1166HMV Deutsch 7. Technische Daten Chip-Set: NEC uPD720112 Datentransfer-Rate: 480Mbit/s Anschlüsse: 4x USB 2.0 A-Buchse (verschraubbar), 1x USB 2.0 B-Buchse (verschraubbar), 1x 5V Buchse (verschraubbar) Hardwaresystem: USB 1.1, 2.0, 3.0 & 3.1 Betriebssystem: Alle Betriebssysteme Betriebstemperatur: 0° bis 55° Celsius Lagertemperatur: -20°... -
Page 8: Description
EX-1166HMV 1. Description The EX-1166HMV is a plug & play high-speed USB 2.0 metal hub for 4 USB devices. The EX-1166HMV provides 4 ports for USB devices and 1 uplink port for PC. It sup- ports all USB connections from 1.1 to 3.1. Each port of the EX-1166HMV is additionally screw lock. -
Page 9: Layout & Connections
EX-1166HMV English 3. Layout & Connections 3.1 Layout 1x USB 2.0 Upstream B-Port (screw lock) Power LED 5V Connector (screw lock) for included external Power Supply 4x USB 2.0 Status LED Downstream A-Port for each Port (screw lock) 3.2 Connections... -
Page 10: Hardware Installation
English EX-1166HMV 3. Layout & Connections 3.2 Connections USB 2.0 A-Port: USB 2.0 A-Port Signal Signal DATA+ DATA- USB 2.0 B-Port: USB 2.0 B-Port Signal Signal DATA+ DATA- 4. Hardware Installation Because there are large differences between PC’s, we can give you only a general in- stallation guide. -
Page 11: Driver Installation
EX-1166HMV English 5. Driver Installation All Operating Systems After the hardware installation the OS will recognize the device automatically and install the drivers. CHECK INSTALLED DRIVER Open the >Device manager<. Now you should see at „USB-Controller“ the following new entry's: If you see this or a similar information the device is installed correctly. -
Page 12: Technical Information
English EX-1166HMV 7. Technical Information Chip-Set: NEC uPD720112 Data Transfer Rate: 480Mbit/s Connectors: 4x USB 2.0 A-Port (screw lock), 1x USB 2.0 B-Port (screw lock), 1x 5V Connector (screw lock) Hardware System: USB 1.1, 2.0, 3.0 & 3.1 Operating System:...
