American Dynamics AD2091 Specifications

The AD2091 series Manchester Control Code
Generator/Distributor provides economical distribution of
American Dynamics Manchester code to SpeedDome Ultra
®
Series Programmable Domes, SpeedDome Optima Series
Domes and compatible receiver/drivers. AD2091 interfaces
with MegaPower 168, 1024, and 3200 matrix switchers/
controllers via the American Dynamics data lines. AD2091
provides up to 64 independent, buffered American Dynamics
Manchester control code outputs in four groups of 16.

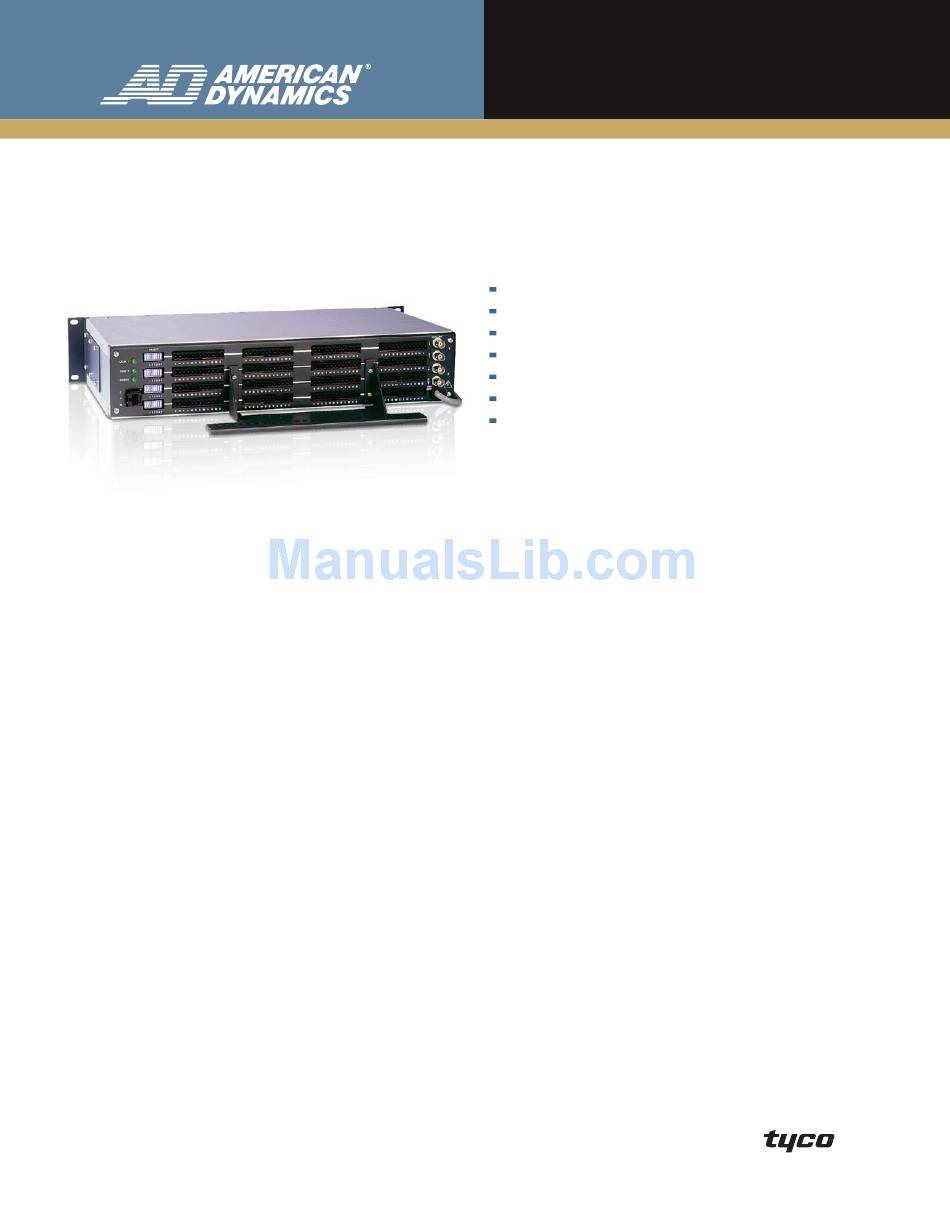

AD2091
Manchester Distributor Accessory
Features That Make a Difference:
Manchester Control Code Generator/Distributor
64 Manchester outputs in four groups of 16
One RS-232 output
Can be used as a code combiner
Diagnostic LEDs
Universal wall, surface, and rack mount
Quick-connect screw terminals for all cable
connections
Each group is capable of controlling separate blocks of 64
camera sites. Multiple units can be cascaded to provide
control for up to 1024 camera sites. Each output will drive
up to 5000 ft. of cable. A single RS-232 output, with
selectable baud rates, may be used for transmitting code
over suitably equipped devices. AD2091 can also be used
to combine control code from two different matrix systems.
The unit can be mounted in a rack or on a wall surface.
D A T A s h e e T
