FEATURES
•
4 RS-232 device ports and
1 CPU port
•
Selectable baud rate via
dip switches
•
Status LEDs on front and
back of unit
•
Installation friendly RJ-45
connections

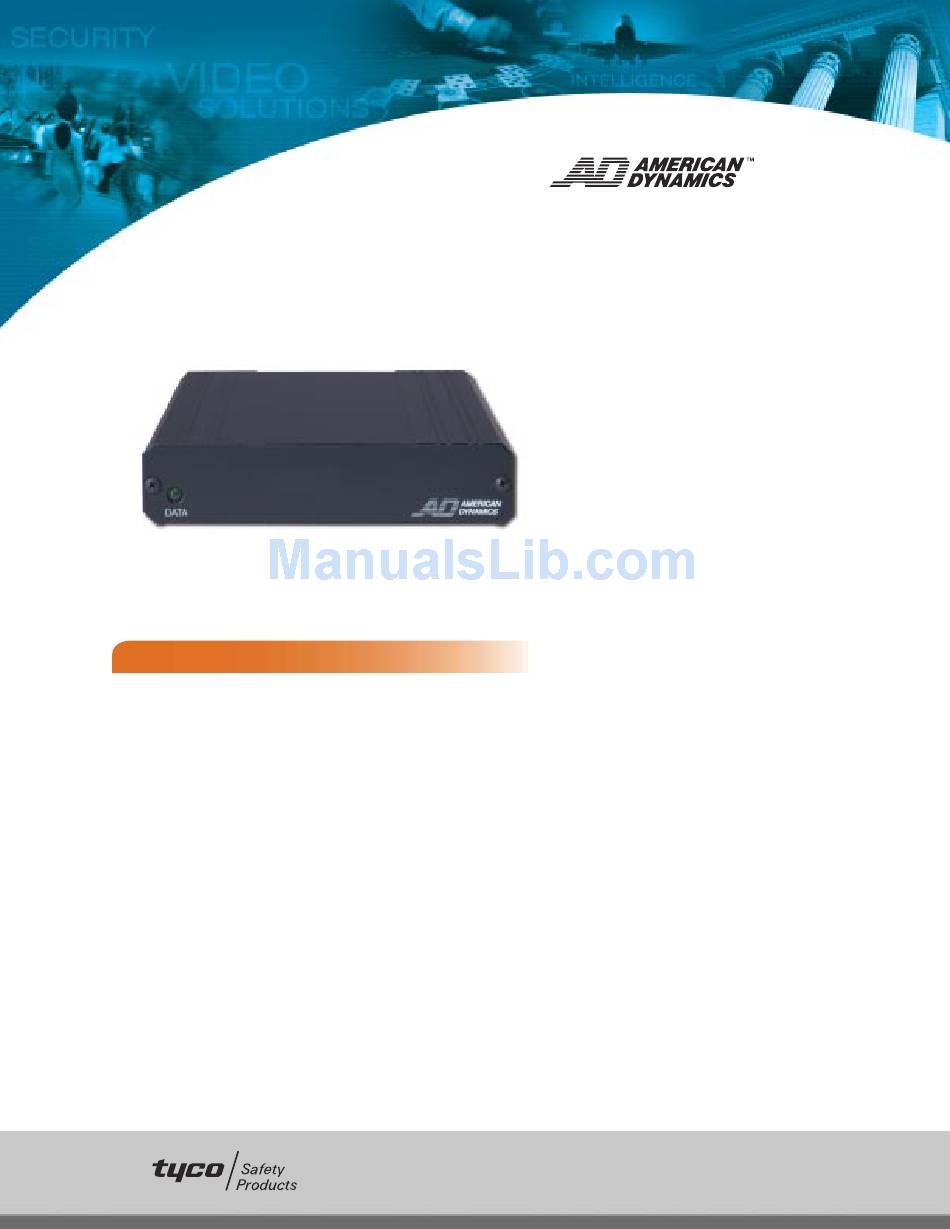

AD2081 Series
RS-232 PORT EXPANDER
The AD2081 is used to expand a single RS-232
port on a matrix switching system to four
ports. Each of the four ports then has an
alphanumeric designation such as 1a, 1b, 1c
and 1d.
The Port Expander is compatible with the full
range of American Dynamics Matrix
Switcher/Controller Systems and Keyboards as
well as accessory products such as the Alarm
Interface Unit.
The AD2081 series is installation friendly,
utilizing RJ-45 connectors for all device
connections. It can be mounted virtually
anywhere with the high-strength Velcro pads.
Power on status and RS-232 activity is
indicated with easy to see LEDs.
www.americandynamics.net
Previous
Page
Next
Page
1
2
Advertisement
Related Manuals for American Dynamics AD2081
Extender American Dynamics AD2081 Installation And Operating Instructions Manual
Port expander (25 pages)
Security System American Dynamics Quads, Multiplexers, VCRs & Video Accessories Information Sheet
Quads, multiplexers, vcrs & video accessories (4 pages)
Extender American Dynamics AD1200EXP MCS Installation Instructions Manual
Hard-wire controller expander (28 pages)
Extender American Dynamics AD1981 Installation Instructions Manual
Port expander (24 pages)
Summary of Contents for American Dynamics AD2081
Page 1
AD2081 Series RS-232 PORT EXPANDER The AD2081 is used to expand a single RS-232 port on a matrix switching system to four ports. Each of the four ports then has an alphanumeric designation such as 1a, 1b, 1c and 1d.
Page 2
Model Numbers AD2081 ..... .120VAC 50/60 HZ, Desktop AD2081-1 ....230VAC 50/60 HZ, Desktop...
