The EASy system monitors the position of the placing
boom and outriggers. If the machine senses a problem
it will display a warning message on the Vector panel
and sound the horn. It is important to follow the instruc-
tions on the screen. Most warning messages can be ac-
knowledged with the QUIT and CLEAR buttons. Once
a message is acknowledged, operation of the placing
boom can be continued. Reference your operation
manual for a complete list of fault messages.

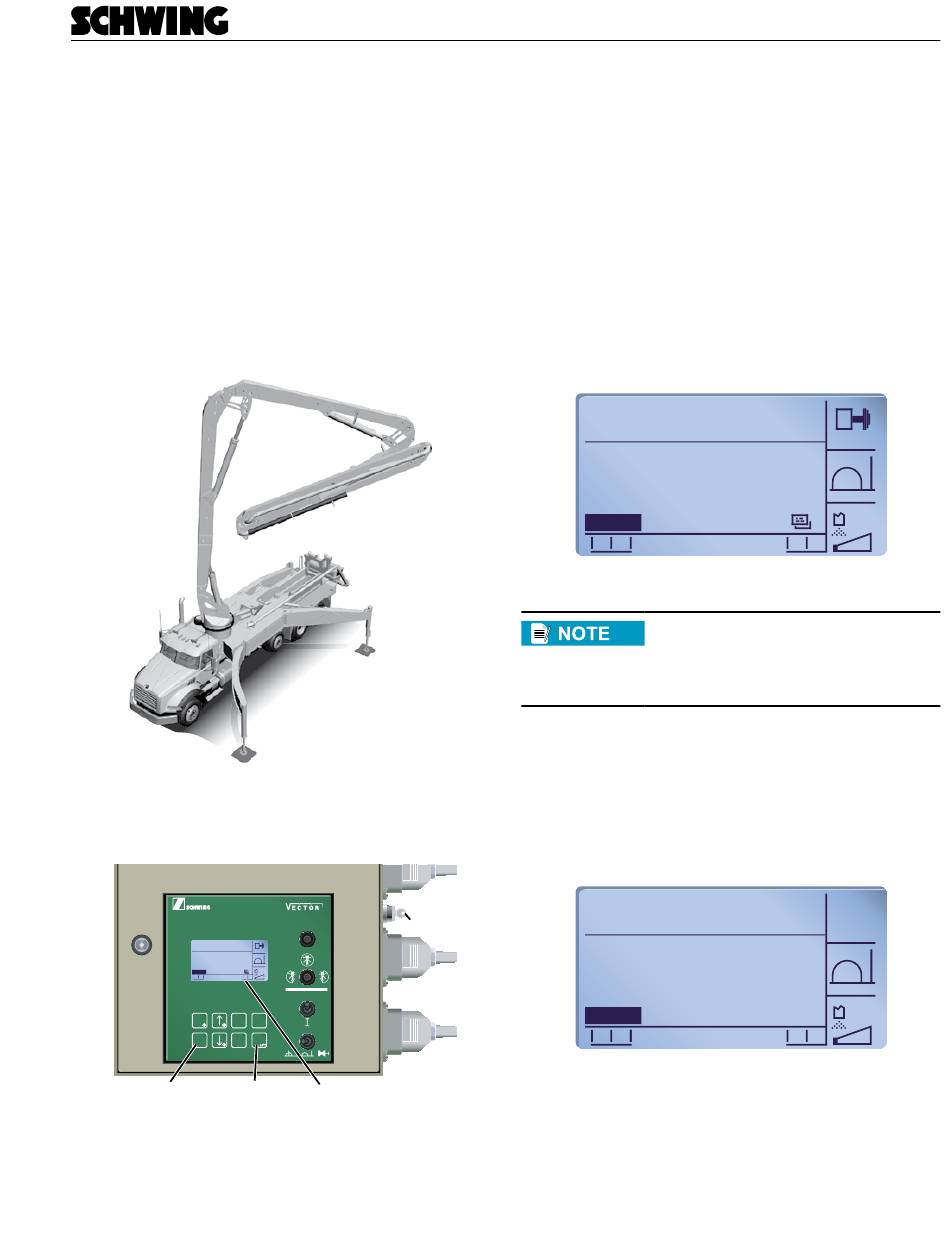

Position of Boom
Figure 1
EASy system monitors the position of the boom and
outriggers
18.09.18(ddmmyy)20:15:05
! Machine Safety Stop !
Machine not correctly
stabilized !
(E45H)
2
[QUIT] ???
HOME
HELP
+
CLEAR
ENTER
-
QUIT Button Message Screen
CLEAR Button
Figure 2
QUIT / CLEAR buttons on Vector panel
Position of Outriggers
Keyswitch
OFF
STOP!
START
QUIT
Service Bulletin

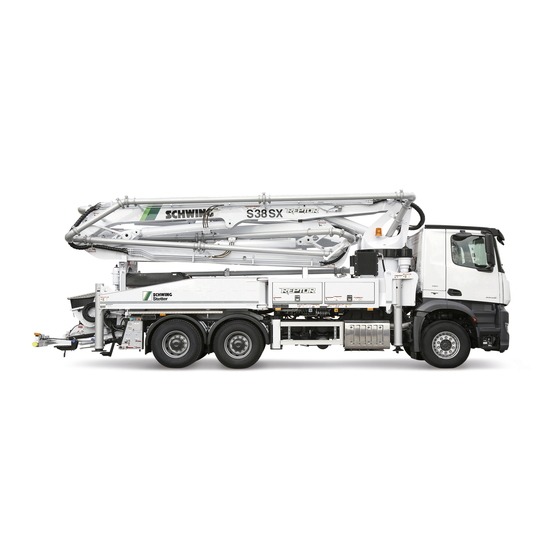

EASy Reference Guide - S38SX
The following procedures are steps you can take to ac-
knowledge various fault messages you might receive
while using the EASy system.
Safety Shutdown Fault
If you receive a serious fault that effects the safe opera-
tion of the machine, the placing boom will stop, remote
box will be disabled and the horn will sound. The mes-
sage !Safety Shutdown! is displayed and the machine
is placed in E-Stop mode. Clear the E-stop and imme-
diately fold up the placing boom in accordance to the
Emergency Operation procedure in your operational
manual.
18.09.18(ddmmyy)20:15:05
! Safety shutdown!
EASy safety circuit
activated !
(E45H)
[QUIT] ???
EASy Setup - Outrigger moves
When setting up the machine, en-
sure that after the front outriggers are
extended, you secure them with the
outrigger lock.
While pumping concrete, it is possible for the outriggers
to move slightly and trip the stabilization sensor. When
this happens you will receive the following message on
the Vector panel, "Check outriggers !." To remedy this
fault, you can either reposition the outrigger or bypass
the outrigger sensor.
!!!
MESSAGE
18.09.18(ddmmyy)12:45:46
Check outriggers !
(E55M)
Back ->[CLEAR]
Reposition outrigger
Put the concrete pump in the neutral position. Place the
local/remote switch in the local position. Ensure that all
personal are clear of the machine. Press the outrigger
button while activating the outrigger handle. Extend
STOP!
2
OK
!!!
1
