Summary of Contents for PSS TSC 1500XL

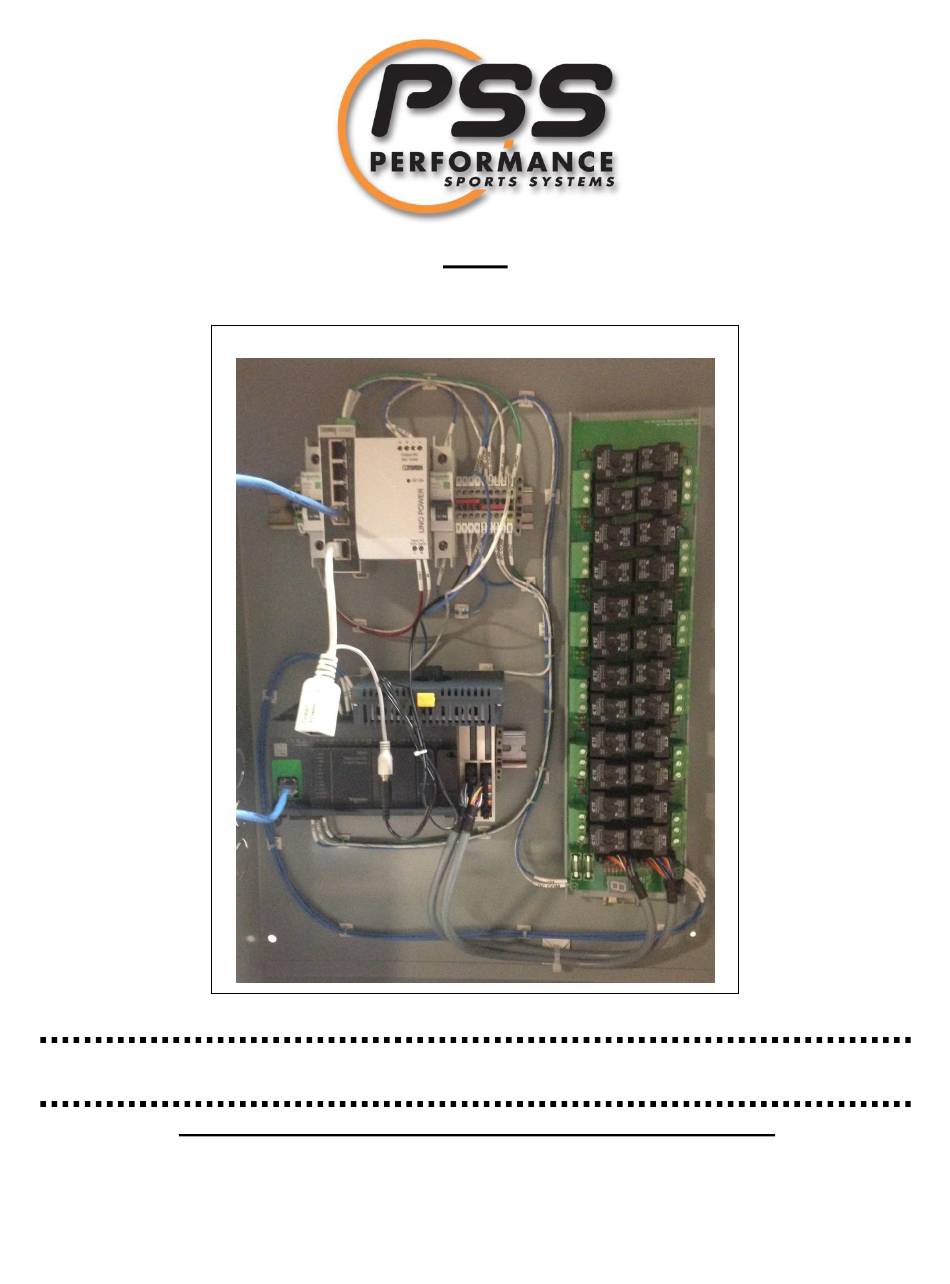

- Page 1 Model: 1500XL Installation Instructions Please read all instructions before attempting installation or operation of these units SAVE THESE INSTRUCTIONS FOR FUTURE USE UBLICATION 8 5 1 7 5 1 2 3 0 R e v A A p r i l 5 , 2 0 2 1...
- Page 2 TSC 1500XL Contents Section Page No. Introduction Cautions and Warnings Installation...
- Page 3 Touchscreen that provides the control for the devices. The TSC 1500XL is equipped from the factory with a default password for the administrator and the operator. The system administrator can easily reprogram each of the passwords to fit their individual security requirements.
- Page 4 TSC 1500XL...
-
Page 5: Installation Instructions
Manual Control Override. Once the relay box has been properly mounted, wiring of the system can be accomplished. Refer to System Wiring Configuration drawing (Page 5) from Performance Sports Systems, Model TSC 1500XL. - Page 6 TSC 1500XL - Connection of power to the Master and Secondary Nodes are as follows: Electrical Service Requirements - 120V, 15A, 1PH service Power can be run directly to the Node panel. Feed line should be sized appropriately for the length of run to meet the electrical service requirements.
- Page 7 TSC 1500XL - Connect power for the devices 1. A separate power line for each device is recommended. 2. Wire neutrals together at another location per local electrical codes. 3. Bring the hot wire into the Node panel and land at the IN location at the terminal. (See...
- Page 8 TSC 1500XL – Connect Communication and Power for Touch Screen 1. From the Master Node to the Touch Screen run Cat 6 and three 14ga or 12ga wires, in its own conduit free from high voltage lines. 2. Connect the Cat 6 cable at the Master Node panel and at the Touchscreen. This uses a standard RJ-45 connection on both ends.
- Page 9 TSC 1500XL - Connecting the Master Node to Secondary Node panels. • Serial Data cable equivalent to Carol C0842A or Belden 9842 (120-ohm impedance). CAT Ethernet cable cannot be used. No Substitutions. • Requires RJ-45 connector (Included per Node panel).
- Page 10 TSC 1500XL -Cable connection at Secondary Node panels. Figure 6 Figure 7 Note: Follow installation below for connecting the RJ-45 connector to Serial Data cable (this guide is also included with RJ-45 connector). Ethernet cable is shown as an example.
- Page 11 TSC 1500XL -Cable connection at Secondary Node panels (cont.). • Incoming Serial Data cable will plug into the CN1 port on the Secondary Node panel. • The CN2 port is reserved for out going signal to additional node panels or the Termination Resistor for the last node panel.
- Page 12 TSC 1500XL -Proper Grounding and Shielding Proper grounding and shielding are essential for reliable system operation. Low voltage DC and communication wiring must be protected from electrical noise introduced by 120v AC wiring, other voltages and signals which may be present in the building infrastructure.
- Page 13 Performance Sports Systems 9200 E. 146 Street Noblesville, IN 46060 800-848-8034 www.perfsports.com...
