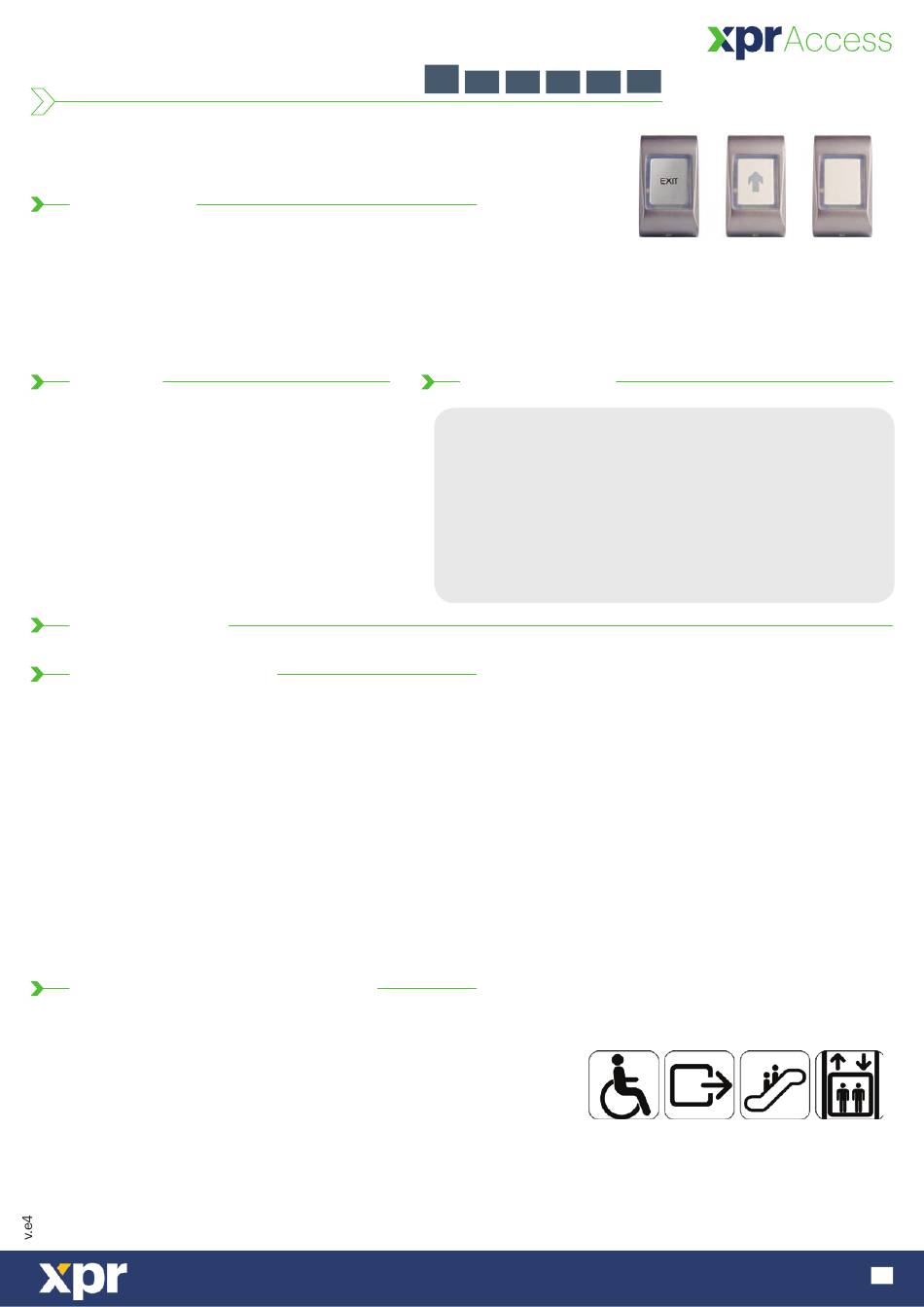

XPR Access MTT Quick Manual

MTT
Introduction
MTT is a request-to-exit switch, It will work independently (standalone) or can equally be connected via a controller to provide exit
from a secured area (Push Button Input). With its slim looks and die-cast metal (or ABS) body, the MTT combines elegance and
aesthetics with ruggedness and reliability.
Features
- Feather light touch control
- Works in Pulse and Latch mode
- Ideal for a wide range of applications
- Vandal-resistant
- Resin Potted Electronics
Audio and Visual indications:
- Front dual light indication
- Buzzer sound on every touch
INSTALLATION
Mounting instructions
1. Identify a suitable location on wall or flat surface.
2. Stick the Drilling Template provided on chosen location. Drill 3 holes as indicated in the diagram.
3. Insert 3 nos. of 5 mm wall plugs provided into the drilled holes.
4. Route the cables through the holes provided in the BackPlate.
5. Fix the Backplate firmly on the wall using 3nos. of 3x30mm CSK screws
6. Connect wires.
7. After wiring, place the Housing over the fixed backplate and guide the slot into the backplate tab and slide it downwards.
8. Fix the Housing to the Back-Plate with a M3 x 6 mm Security Screw on the bottom of the Housing using a Security Screwdriver provided.
Important Note: Several layers of protection are provided against transient voltages from static discharge,lightning and power
supply spikes. For protection to be fully effective, earthing should be done correctly.
WIRING AND APPLICATIONS
- Light switches
- Exit button (Access control)
- Elevator buttons
- Industrial panels
EN
FR IT ES DE NL
Touch button switch
Specifications
Input voltage:
Current consumption:
Relay Output:
Panel Connection:
Indicators-LED:
Operating Temperature:
Operating Humidity:
Dimension (mm):
Housing:
Touch Plate:
Protection:
www.xprgroup.com
12-24 VDC; 15-24 VAC;
max.65mA
2A at 24V DC / 120V AC
Cable, 0.5 m
Normal - RED
Relay Operation – GREEN
-20° to 50°C
Non-condensing up to 95%
92L x 51W x 25H (Metal)
92L x 51W x 27H (ABS)
Die-cast Aluminium alloy or ABS
Mild Steel Painted
IP65
1
