Summary of Contents for O_TWO 01DV2000

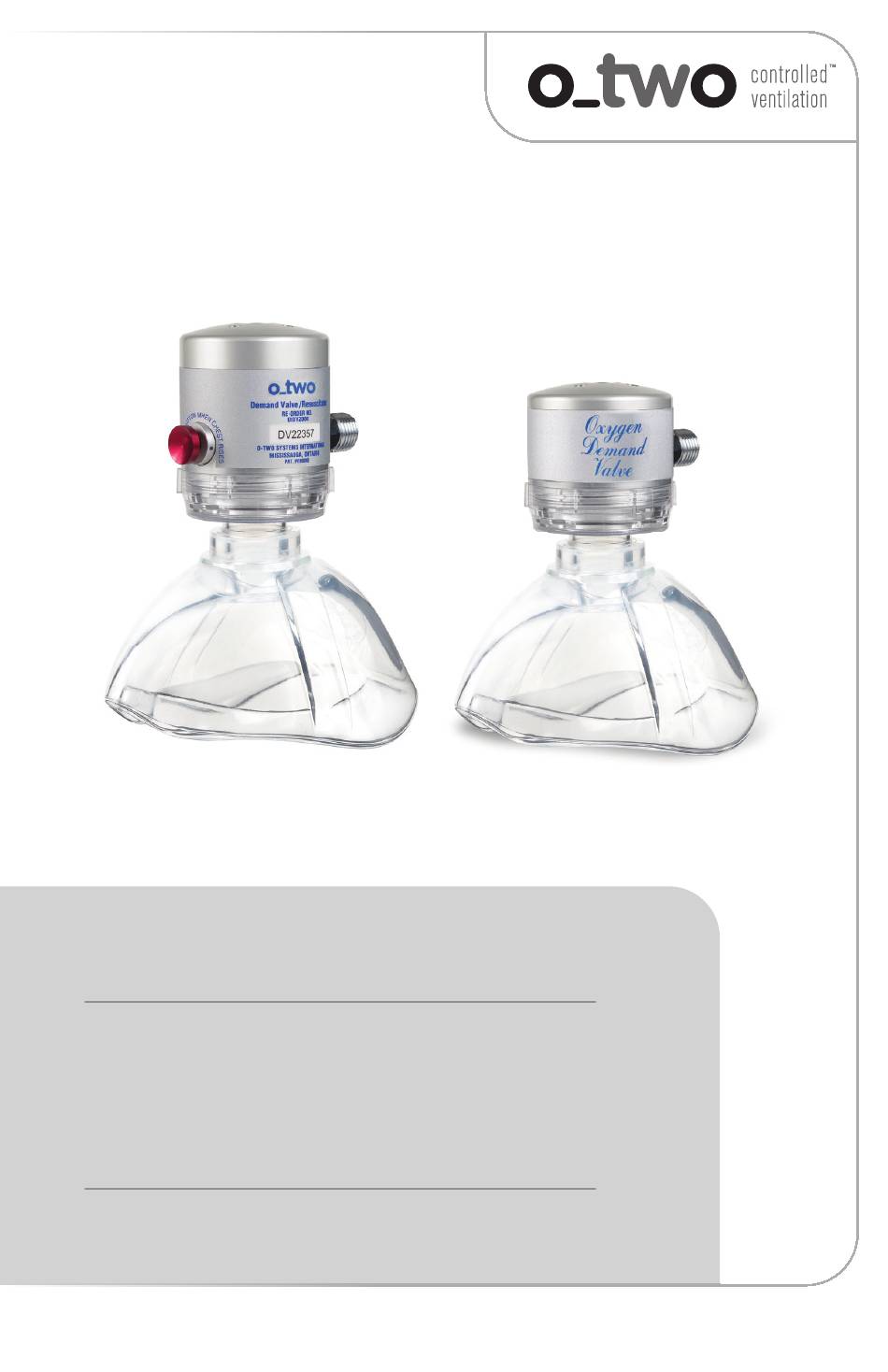

- Page 1 USER MANUAL DEMAND VALVE 01DV3000 DEMAND VALVE RESUSCITATOR 01DV2000 17MP3136 Rev 13 FEB, 2020...
-
Page 2: Table Of Contents
1.2. Warranty Information 1.3. Safety Precautions 1.4. Performance Specification 2. Gas Supply 2.1. Gas Supply Connections 3. Operating Procedure 3.1. Demand Breathing 3.2. Manual Resuscitation (01DV2000 only) 3.3. Operating Instructions 4. Servicing 4.1. Routine Maintenance 4.2. Cleaning and Disinfection 5. Replacement Parts/Accessories... -
Page 3: Introduction

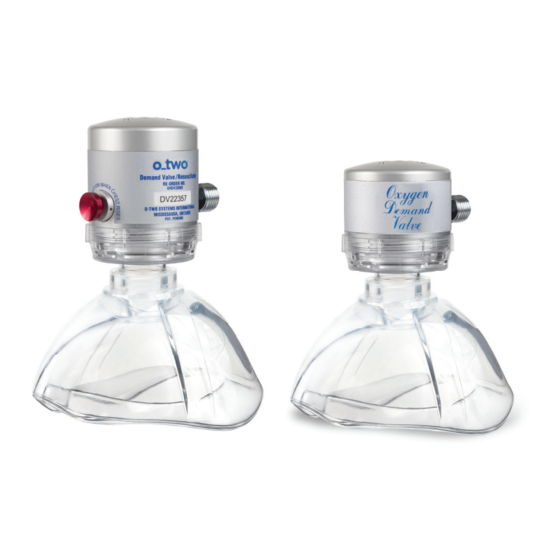

1. Introduction 1.1. Introduction O-Two oxygen powered Demand Valve provides trained individuals with a safe and eff ective means of delivering 100% oxygen to spontaneously breathing patients in respiratory distress, at the fl ow rate demand by the patient. O-Two oxygen powered Demand Valve Resuscitator provides a fast, simple and eff ective means to ventilate the non-breathing patient and to deliver 100% oxygen to spontaneously breathing patients in respiratory distress, at the fl... -
Page 4: Safety Precautions
1.3. Safety Precautions The O-Two Demand Valve and Demand Valve Resuscitator are designed to provide emergency ventilatory support to victims of respiratory and/or cardiac arrest and demand breathing capability or those in respiratory distress. They are intended for use by suitably trained and qualifi ed personnel. -
Page 5: Performance Specification
O @ 60 L/min Inhalation Resistance 0 to -6 cmH O @ 60 L/min Input Pressure 50 PSI Max Pressure Relief Valve (01DV2000 only) 60 cmH Audible Over Pressure Alarm (01DV2000 only) Triggering Pressure 0 to -3.5 cmH Operating Temperature... -
Page 6: Gas Supply
fl ow to the patient at a rate and volume in line with their inspiratory eff ort. 3.2. Manual Resuscitation (01DV2000 only) The O-Two Demand Valve Resuscitator (01DV2000) has been fi tted with a Manual Button to allow manual ventilation of the non- breathing or respiratory distressed patient. -
Page 7: Operating Instructions
3.3. Operating Instructions Ensure that the Demand Valve/ Regulator connection is secured and no leaks present. 2. Turn the cylinder hand wheel counter clockwise to the ON position (at least one full turn). 3. Ensure that the regulator contents gauge reads at least 500 psi. -
Page 8: Servicing
4. Servicing 4.1. Routine Maintenance WARNING The O-Two Demand Valve and Demand Valve Resuscitator are designed to provide respiratory support in all emergency situations. Failure to follow the maintenance and inspection routine could result in incorrect operation of the resuscitator. To ensure proper operation of the Demand Valve and Demand Valve Resuscitator, regular inspection and checking of the demand valve and accessories for correct function should be undertaken... -
Page 9: Cleaning And Disinfection
4.2. Cleaning and Disinfection Routine cleaning and/or disinfection of the O-Two Demand Valve and Demand Valve Resuscitator should be undertaken after each patient use to maintain the equipment in a clean condition. WARNING Do not immerse the demand valve into cleaning solution or disinfectant. - Page 10 2. Ensure that the cylinder is turned off (completely clockwise) and bleed any remaining gas out of the system by depressing the manual ventilation button (01DV2000 only). 3. Remove the facemask from the Demand Valve (Resuscitator), and then disconnect the unit from the regulator. This is accomplished by counter-clockwise turning of the connection nut at the regulator end of the hose.
-
Page 11: Replacement Parts/Accessories
5. Replacement Parts ORDER N PART 17MP1528 Silicone Diaphragm 02FM4999-Cs Universal Face Mask (case/12)* 01RO01O23-B Oxygen Pressure Regulator 17MP9039 Non-rebreathing Valve Assembly 01FG6520 Head Harness System O-Two 6 Foot (1.85 Meter) O Supply Hose with AFNOR 01FV4303-AFNR probe and 9/16" DISS Nut Ventilator Connection O-Two 6 Foot (1.85 Meter) O Supply Hose with AGA 01FV4303-AGA... - Page 12 Your Representative is: O-TWO MEDICAL TECHNOLOGIES INC. For your nearest Authorized O-Two Distributor In North America call Toll Free 1-800-387-3405 MedNet EC-REP GmbH SERIAL N Borkstrasse, 10 48163 Münster, Germany www.otwo.com 45A Armthorpe Road, Brampton, ON, Canada, L6T 5M4 Telephone: +1 905 792-OTWO (6896) N.A. Toll Free: +1 800 387 3405 Facsimile: +1 905 799 1339 Email: resuscitation@otwo.com...
