Summary of Contents for Article MADERA

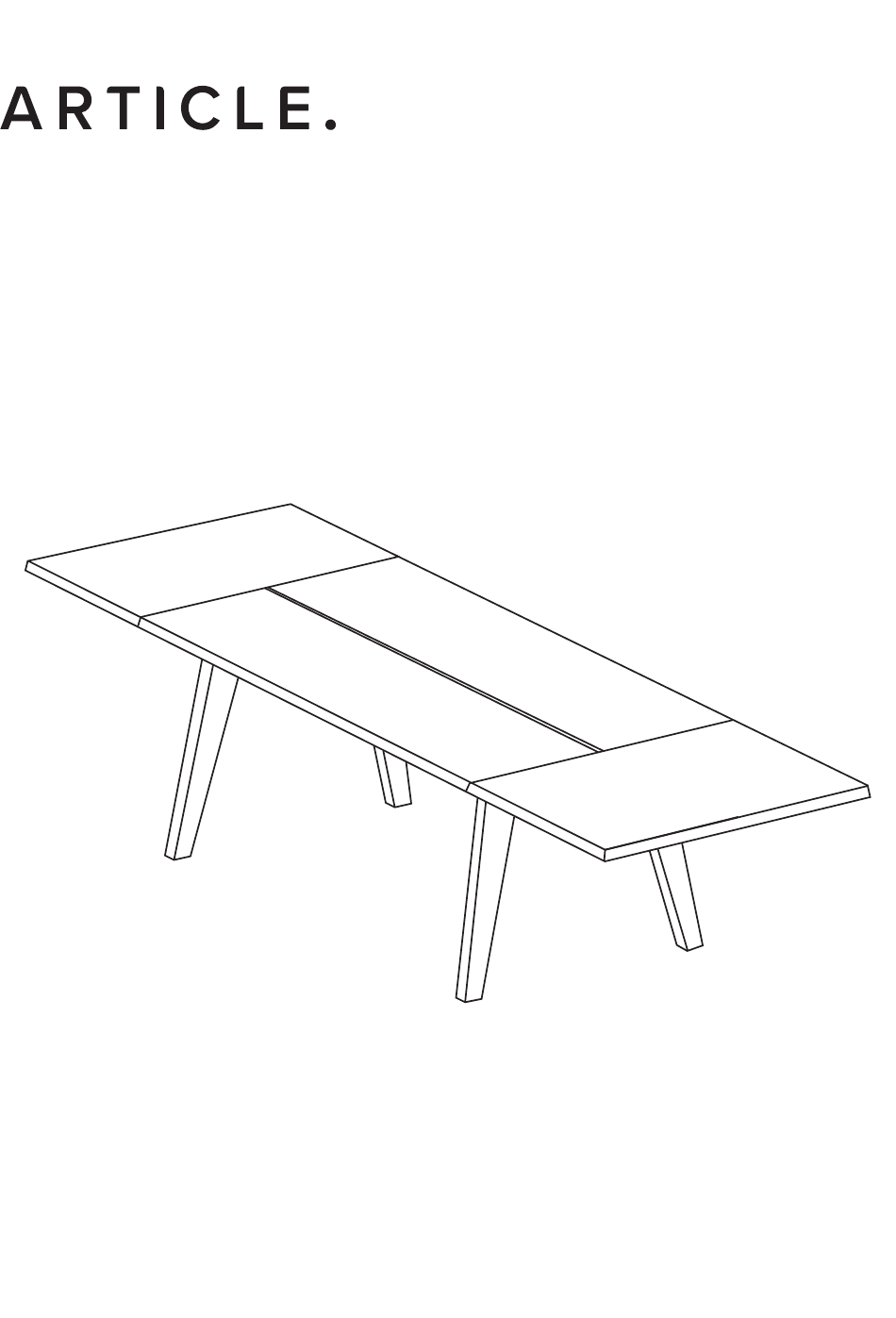

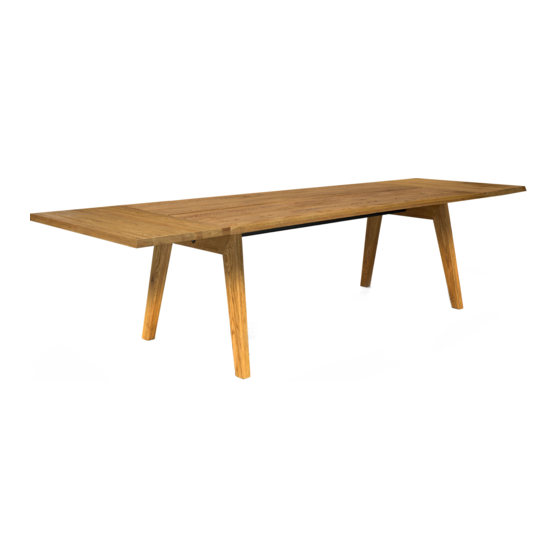

- Page 1 VERSION 1.0 Assembly Instructions MADERA Extendable Dining Table...
-
Page 2: Parts Inventory
If you’re having difficulty, our friendly Customer Care team is always here to help. Call us at 1.888.746.3455 during business hours, email service@article.com or chat live at article.com. PARTS INVENTORY PARTS INVENTORY CONT. - Page 3 MADERA Extendable Page 3 of 7 Dining Table First unscrew bolt (G) out of center bar attachment (B).
- Page 4 MADERA Extendable Dining Table Page 4 of 7 × 8...
- Page 5 MADERA Extendable Page 5 of 7 Dining Table × 2 × 8 Put center bar (A) in hole in leg (D) before bolting leg to table top.
- Page 6 MADERA Extendable Page 6 of 7 Dining Table × 2 Secure nuts (N) on both ends of center bar after legs are bolted to table top. Dowels on extension leaves (E) fit into holes at the end of each extension arm.
- Page 7 MADERA Extendable Page 7 of 7 Dining Table EXTENSION LEAF ADJUSTMENT INSTRUCTIONS If the dowels on one or both of your extension leaves don’t fit properly into the extension arms, the bolts on the arms underneath the table top need to be adjusted.
