TM/MC

Receiver and USB Car Charger

WARNING!

• Make sure your connected device is ﬁrmly and securely fastened.

• Follow all applicable local laws and regulations concerning the use of a mobile device.

• The USB port is not designed for transferring data. Do not connect external data

storage products or any data transfer cables to the USB port.

• DANGER! Never let children play with packaging materials and this product. This

product is not a toy! Store the product and any accessories out of the reach of

children.

• Don't attempt to disassemble the unit or replace the battery.

• Do not throw device into ﬁre.

• Keep device dry at all time.

• Avoid excessive drops, abrasions and punctures.

12 V Bluetooth

User manual

Model no. 035-5406-4

Table of Contents

Need help?

Do you have a question about the 035-5406-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for BlueHive 035-5406-4

Page 1 12 V Bluetooth ® Receiver and USB Car Charger User manual Model no. 035-5406-4 WARNING! • Make sure your connected device is ﬁrmly and securely fastened. • Follow all applicable local laws and regulations concerning the use of a mobile device.

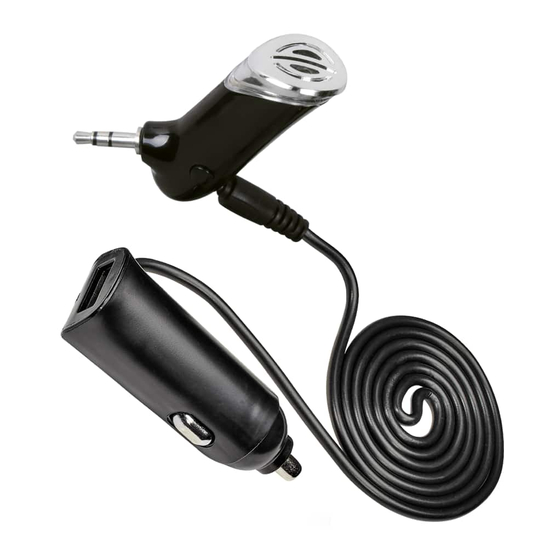

Page 2 Key Parts Diagram 1 Microphone 5 12 V Plug 2 LED indicator 6 USB port (5 V 2.1 A) 3 Function key 7 Input port (DC 5 V) 4 3.5 mm Auxiliary Connection 8 Charging connector...
Page 3 LED Indicator Bluetooth Receiver Status LED Indicator ® Power on Blue light flickers three times Bluetooth pairing Blue and red light flickers alternatively ® Low battery Red light flickers Charging Red light is on Fully charged Red light is off Connected Blue light flickers Sounds &...
Page 4 Charging Bluetooth Receiver ® Important: Please fully charge the battery for the ﬁrst time use. Firmly insert the Charging connector (8) into Input port (7) of Bluetooth ® Receiver, Plug 12 V Plug (5) into vehicle's 12 V outlet. The red charging indicator will light up and it will turn off once fully charged.
Page 5 / tablet / Bluetooth ® devices. Make sure that Bluetooth ® turned on. Connect to the device listed as"035-5406-4". Blue light ﬂickers and with prompt of "connected" indicates your device has been successfully connected and is ready to use.
Page 6 Answering, Ending and Rejecting Calls Press Function key (3) once to answer calls. Press Function key (3) once to end calls. Long press Function key (3) to reject the calls. Charging electronic devices Insert 12 V plug (5) into the vehicle's 12 V outlet. Connect your mobile device to USB port (6) with a charging cable (not provided).
Page 7 You can play music and charge your phone/tablet/Bluetooth devices at the ® same time if your devices have low battery power. AUX IN...
Page 8 SPECIFICATIONS: Input: DC 12 V Battery: 90 mAH Rechargeable Battery Effective Range: 10 m (33') Charging time: 2 hours Working time: 6 hours Standby time: 8 hours Car Charger USB output: 5 V/2.1 A Product must be recycled or disposed of properly. Dispose of as per the requirements of your local municipality.
