Summary of Contents for CET PMC-2105
- Page 1 PMC-2105 Industrial Fiber Ethernet Switch User Manual Version: V1.4A 06/23/2012 Ceiec Electric Technology...
- Page 2 The information contained in this manual is believed to be accurate at the time of publication; however, CET assumes no responsibility for any errors which may appear here and reserves the right to make changes without notice. Please consult CET or your local representative for the latest product specifications.
- Page 3 This warranty is on a return to factory for repair basis. CET does not accept liability for any damage caused by device malfunctions. CET accepts no responsibility for the suitability of the device to the application for which it was purchased.
-
Page 4: Table Of Contents
Ceiec Electric Technology Table of Contents Chapter 1 Introduction .......................5 1.1 Overview ...........................5 1.2 Features ..........................5 1.3 Applications ........................5 1.4 Getting more information....................5 Chapter 2 Installation .........................6 2.1 Appearance ........................6 2.2 Unit Dimensions........................6 2.3 Mounting ..........................6 2.4 Ethernet Wiring ........................7 2.4.1 Straight-through Connection ..................7 2.4.2 Cross-over Connection ....................7 2.5 Fiber Port Wiring ......................8... -
Page 5: Chapter 1 Introduction
Ceiec Electric Technology Chapter 1 Introduction This manual explains how to use the PMC-2105 Industrial Fiber Ethernet Switch. This chapter provides an overview of the PMC-2105 and summarizes many of its key features. 1.1 Overview The PMC-2105 Industrial Fiber Ethernet Switch supports plug-and-play capability with a single 100BaseFX fiber port and four 10/100BaseT ports. -
Page 6: Chapter 2 Installation

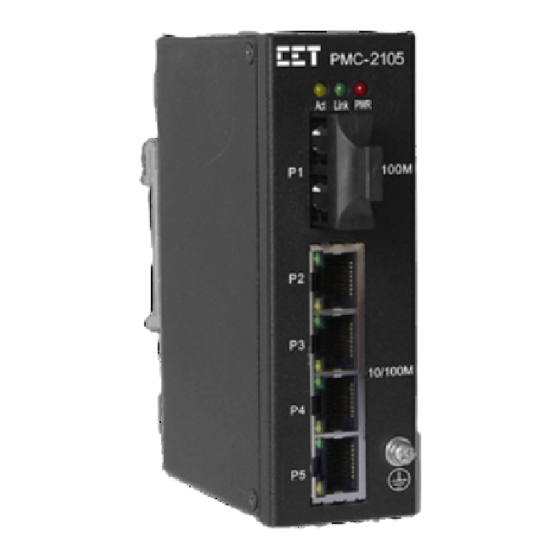

Ceiec Electric Technology Chapter 2 Installation 2.1 Appearance Figure 2-1 Appearance 2.2 Unit Dimensions Figure 2-2 Dimensions 2.3 Mounting The PMC-2105 should be installed in a dry environment with no dust and kept away from heat, radiation and electrical noise source. -
Page 7: Ethernet Wiring
Before installation, make sure that the 35mm DIN-Rail is already in place Align the top of the mounting clip at the back of the PMC-2105 at an angle against the top of the DIN rail as shown in the figure below ... -
Page 8: Fiber Port Wiring
Ceiec Electric Technology Pin 2: Orange Pin 2: Green Pin 3: Green-white Pin 3: Orange-White Pin 4: Blue Pin 4: Blue Pin 5: Blue-White Pin 5: Blue-White Pin 6: Green Pin 6: Orange Pin 7: Brown-White Pin 7: Brown-White Pin 8: Brown Pin 8: Brown Figure 2-5 Cross-over Connections 2.5 Fiber Port Wiring... -
Page 9: Power Supply Wiring
Figure 2-7 Power Supply Connections 2.7 Chassis Ground Wiring Installation: Connect one end of the ground wire to the Chassis Ground terminal on the PMC-2105 using a spade connector Connect the other end of the ground wire to an Earth ground... -
Page 10: Chapter 3 Application
Ceiec Electric Technology Chapter 3 Application 3.1 LED Indicators PMC-2105’s front panel is equipped with three LED indicators – Act, Link and PWR. LED Indicator Color Function Power supply indicator Link Green Fiber port connection status Yellow Fiber port activities Table 3-1 LED Indicators 3.2 Typical Application... -
Page 11: Appendix A Technical Specifications
Ceiec Electric Technology Appendix A Technical Specifications Standards IEEE 802.3, 802.3u Interface Fiber Port 1x100BaseFx Port with ST connectors Ethernet Ports 4x10/100BaseT with RJ45 connectors Cable Twisted Pair CAT5, CAT5e with a maximum 100m distance Multi-Mode Fiber Supporting a distance of 2km Wavelength, Size 1310nm , 50/125µm and 62.5/125 µm Single-Mode Fiber... -
Page 12: Appendix B Standards Of Compliance
Ceiec Electric Technology Appendix B Standards of Compliance Safety Requirements Insulation IEC 60255-5-2000 Dielectric Test 2kV@1minute Insulation Resistance 100MΩ Impulse Voltage 5kV, 1.2/50us Electromagnetic Compatibility Electrostatic Discharge IEC 61000-4-2:2001 Level III Radiated Fields IEC 61000-4-3:2002 10V/m Fast Transients IEC 61000-4-4:2004 Level III Surges IEC 61000-4-5:2005 Level III Conducted Disturbances... -
Page 13: Appendix C Ordering Guide
Ceiec Electric Technology Appendix C Ordering Guide Contact us Ceiec Electric Technology Headquarters 8/F, Westside, Building 201, Terra Industrial & Tradepark, Che Gong Miao, Shenzhen, Guangdong, P.R.China 518040 Tel: +86.755.8341.5187 Fax: +86.755.8341.0291 Email: support.international@ceiec-electric.com Web: www.ceiec-electric.com...
