Summary of Contents for SEF 570.77A

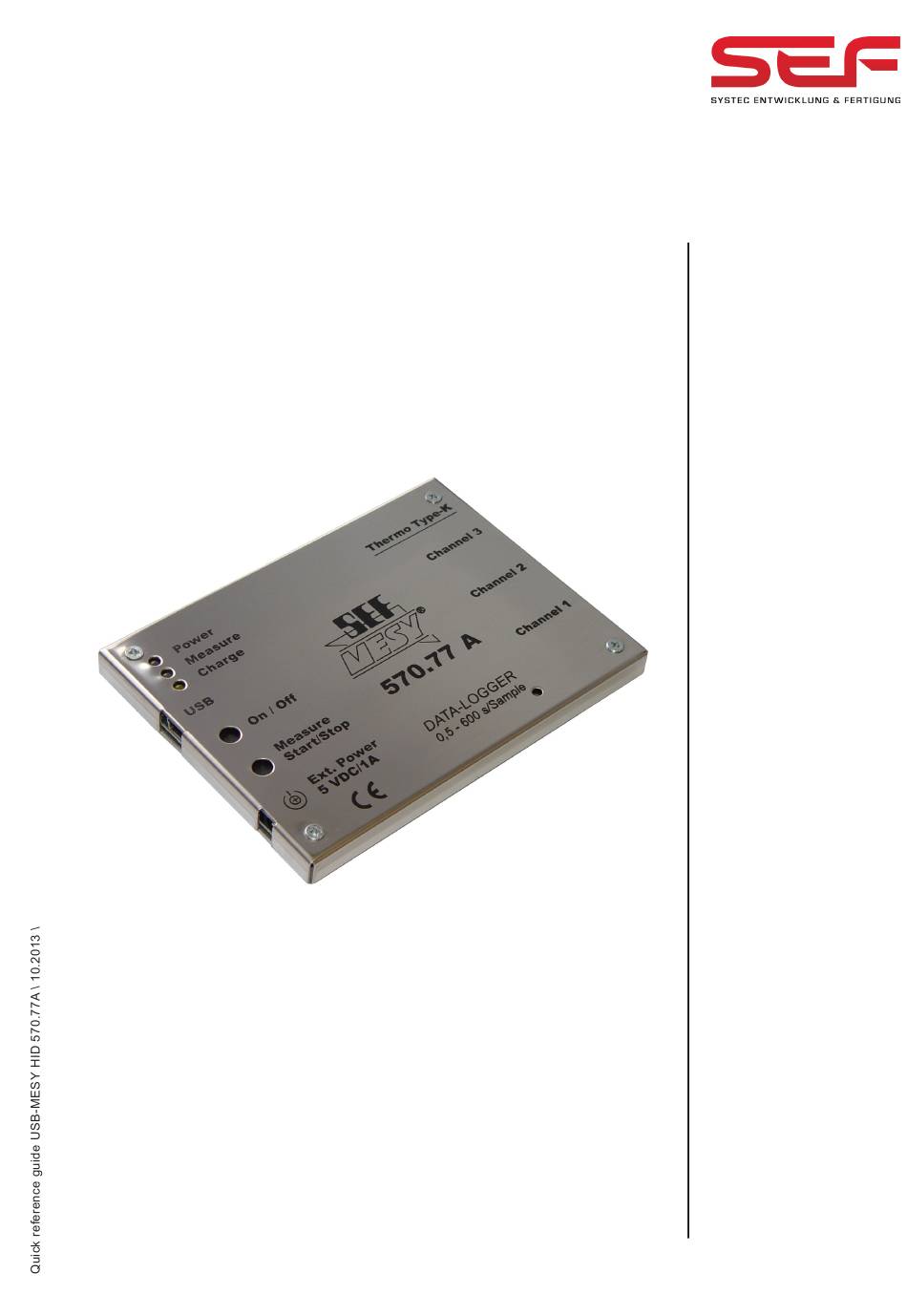

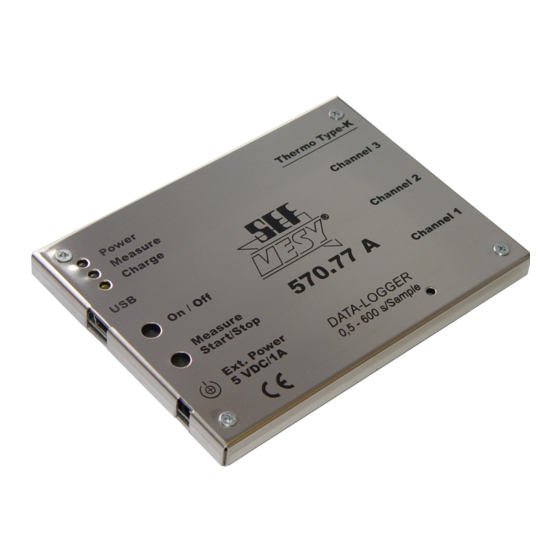

- Page 1 Quick reference guide for USB-MESY HID 570.77A Installation and operation...
- Page 2 Page 2...
- Page 3 length 1,8 m 1 external power supply 5V/ 1A 1 installation CD-ROM 1 quick reference guide USB-MESY HID 570.77A Optional available accessories (not included in the deliv- ery) temperature insulating box 571.77 Thermo Protec- tion Box thermocouple sensors with the length 1 m, 1,5 m, ...
- Page 4 1. Installation and beginning of operation 1.1. Software installation Before connecting the hardware the software must be installed. Please insert the enclosed CD-ROM in the CD-ROM drive of your PC. Open the file “Setup.exe” from the CD-ROM. Follow the instructions on the screen. ...
-
Page 5: Starting The Software
Quick reference guide USB-MESY HID 570.77A 2. Starting the Software Choose "Start/programs/ADC/Mesy for Windows" or open the link "Mesy for Windows" on your desktop. 3. Operation of the measurement software In the program “Mesy for Windows” you can call the following functions: File/New Create a new “measurement” or “reference”. File/Load Load a “measurement” or “reference”. File/Close Close the program “Mesy for... - Page 6 Extras/change main password Open the window for changing the main password Description of the button in the main program Opens a window to adjust a trigger temperature; after reaching this trigger temperature the MESY will start the measurement automatically. Starts the measurement or the reading of the memory. Stops the measurement or the reading of the memory.
- Page 7 Quick reference guide USB-MESY HID 570.77A 4. Executing the measurement NOTICE Damages at the electronics by high temperature Avoid categorical an internal temperature of the MESY of more than 60°C. An internal temperature of more than 60°C will be signalized by an interval beep (0,5 sec.) if the MESY is switched on.
- Page 8 Press the button [On/Off] until you hear two long beeps to switch off the MESY. Attention: A starting of a new measurement will overwrite the previous recorded values. Connect the USB-MESY HID with your PC to read the recorded measurement values.
- Page 9 Quick reference guide USB-MESY HID 570.77A NOTICE Danger of short circuit by water Use an adequate medium, for example oil CAUTION Danger of burns Take care while handling hot media. The channels will be adjusted together at 25°C first and then at 100°C. Insert the ends of the thermocouple sensors of all 3 ...
- Page 10 Follow the same procedure for the channels 2 and 3. Close the window “Adjustment”. If you press the button [Start] a measurement will start. With a correct adjustment you should see the graphs of all channels at 25°C or at 100°C (end of thermocouple sensors must be in the according fluid).
- Page 11 Quick reference guide USB-MESY HID 570.77A Page 11...
- Page 12 For any question please contact us under Tel.-No. +49 (0) 4136 / 909-0 zur Verfügung. Your SEF Systec Team (C) SEF Systec GmbH, October 2013 Subject to technical change. Page 12...
