COMPASS HEALTH B651 Assembly Instructions

Assembly Instructions/
Instrucciones de montaje
ADVERTENCIA: Lea todas las instrucciones y advertencias antes del ensamblaje y uso.
B651
WEIGHT CAPACITY: 350 lbs
CAPACIDAD DE PESO: 350 libras
1
1

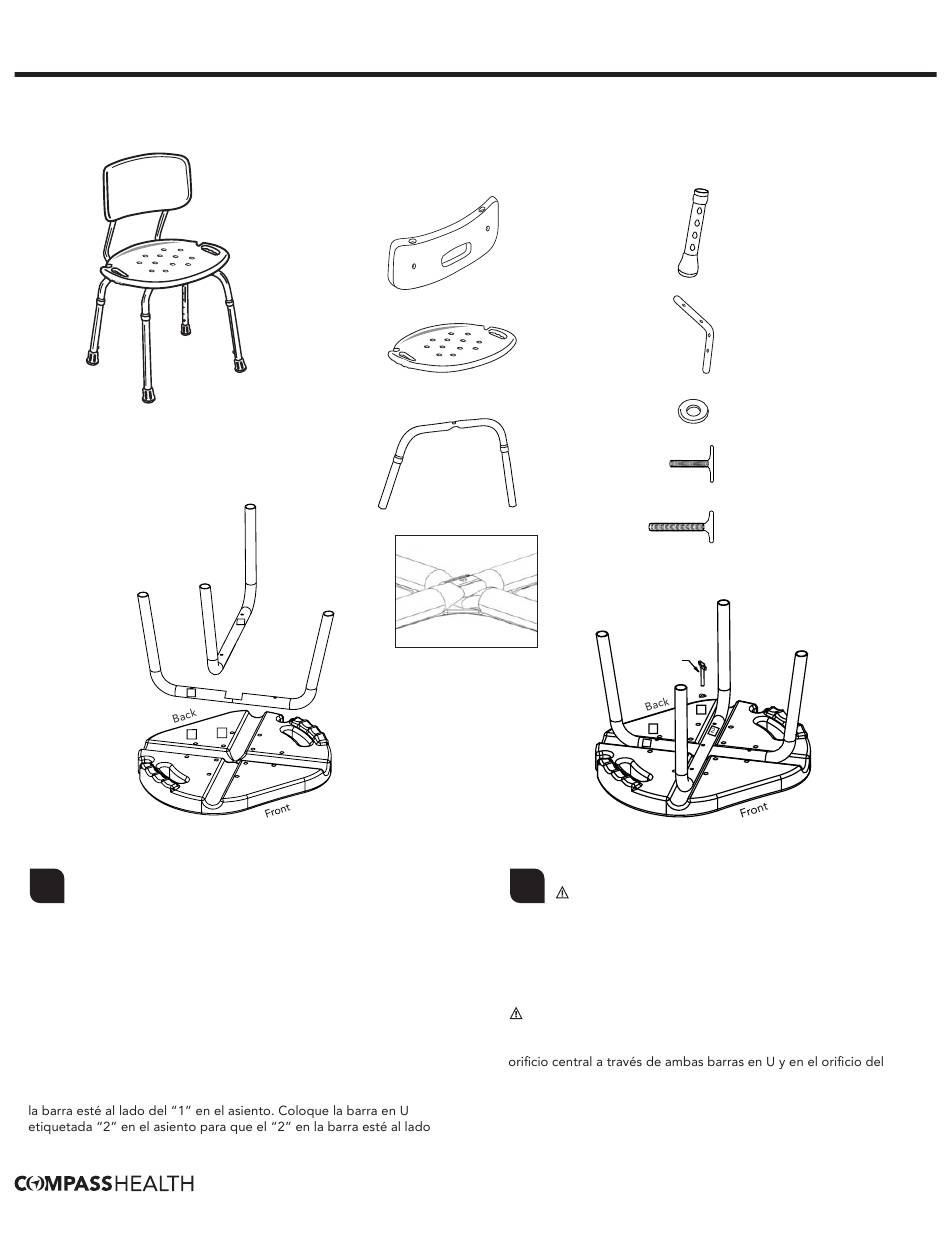

Correct placement of U Bars
Place seat face-down on a table or counter with the FRONT
1
edge closest to you (BACK edge has the shower sprayer
notches, FRONT edge does not). Place U bar labeled "1" in the
groove in the seat which extends from BACK LEFT corner of seat to
RIGHT FRONT corner of seat, as shown in Figure 1., above. Place the
U bar labeled "2" in the other groove, on top of U bar "1."
NOTE: when placed correctly, the 2 U bars will align at the center as
shown in Figure 2., above.
WARNING: Failure to assemble this bath seat correctly can result in
falls/injuries.
Coloque el asiento boca abajo sobre una mesa o mostrador con el
borde del asiento cerca del borde de la mesa. Coloque la barra en
U etiquetada "1" en la ranura del asiento, de modo que el "1" en
del "2" en el asiento.
Manufactured for: Compass Health Brands Corp.
Middleburg Heights, OH 44130
www.compasshealthbrands.com • 800.376.7263
WARNING: Read all instructions and warnings prior to assembly and use.
2
2
Figure 1.
Asiento de baño y ducha con respaldo
Backrest/
Respaldo x 1
Seat/
Asiento x 1
U Bars/
Barras U x 2
Labeled "1" and "2"
Figure 2.
Proper alignment of U bars
Find the 1 medium sized screw -
2
WARNING - medium screw MUST be used for the next
step or damage to the seat will occur. Place medium screw with
washer into center hole through both U bars and into the screw
hole in the seat. Contour of washers should match curve of bar.
DO NOT fully tighten yet.
Encuentra el 1 tornillo de tamaño mediano -
ADVERTENCIA - El tornillo de tamaño mediano DEBE ser
utilizado para el siguiente paso; de lo contrario, se producirán
daños o lesiones. Coloque el tornillo mediano con arandela en el
tornillo en el asiento. El contorno de la arandela debe coincidir
con la curva de la barra. NO apriete por completo.
1
Bath and Shower Seat with Back/
Parts List/Lista de Partes
Leg Extensions/
Extensiones de Pierna x 4
L Bars/
Barras L x 2
Washer/Arandelas x 5
Medium Screws/
Tornillos Medianos x 1
Long Screws/
Tornillos Largos x 4
Medium Screw
2
1
1
1
1
Figure 3.
Securing U bars to seat
