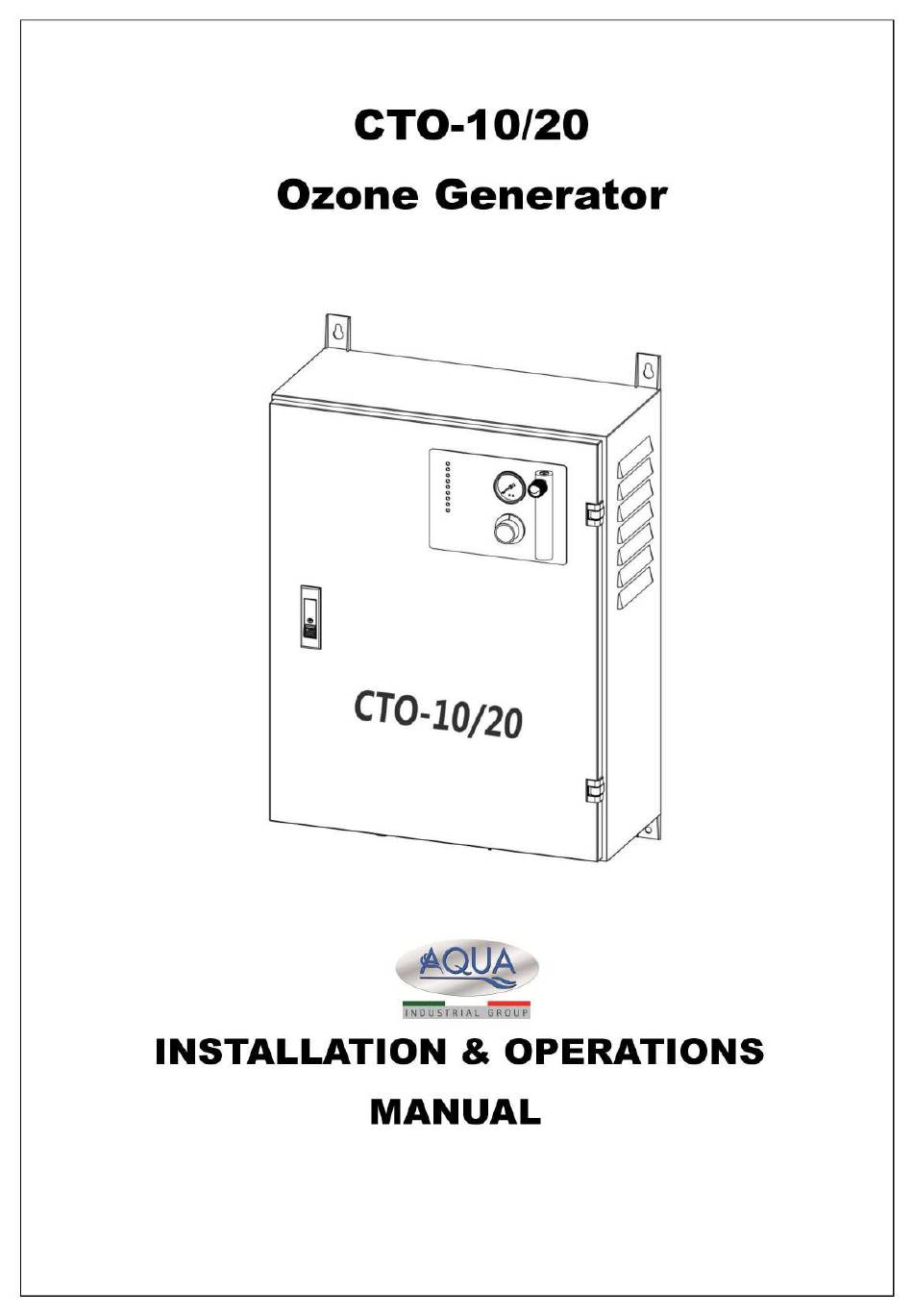

Aqua CTO Series Installation & Operation Manual

Ozone generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua CTO Series

  • Page 2  The CTO series ozone generator must be installed indoors in a forced air ventilated room.  The CTO series ozone generator produces a high concentration of ozone.

  • Page 3: Table Of Contents

    CTO-10 & CTO-20 OZONE GENERATOR TABLE OF CONTENTS SECTION1 ....................... 1 GENERAL INFORMATION ................1 1A. D ....................1 ESCRIPTION 1B.S ................... 1 PECIFICATIONS 1C.W .................. 1 ARRANTY UMMARY SECTION2 ....................... 2 INSTALLATION ....................2 2A.L ....................2 OCATION 2A-1.Location for ozone generator ............... 2 2A-2.
  • Page 4 CD OZONE MODULE ................... 12 APPENDIX: “C” .................... 13 PSA OXYGEN MODULE ................13 APPENDIX: “D” .................... 13 OZONE POWER SUPPLY MODULE ............13 APPENDIX: “E-1” ..................14 APPENDIX: “E-2” ..................15 ALL CTO SERIES OZONE GENERATORS ARE CE LISTED...

  • Page 6: Section1

    1C.Warranty Summary Limited Warranty: All CTO series ozone generator and oil less pump covered with one year warranty under normal operating conditions and procedures as described in the owner/operator manual supplied with each product.

  • Page 7: Section2

    CTO-10 & CTO-20 OZONE GENERATOR SECTION2 Installation 2A.Location 2A-1.Location for ozone generator The CTO-10 and CTO-20 are designed for wall mounting. See figure 1A. Mount generator in a clean, protected area, either indoors or outdoors. (See location requirements section 1A) Locating generator is distance from corner at least 1m. Allow sufficient access for maintenance and all tubing and electrical wires.

  • Page 8: Electrical

    CTO-10 & CTO-20 OZONE GENERATOR Figure 1B 2C.Electrical 2C-1.Main power circuit for generator The CTO-10, CTO-20 are supplied with a standard power cord. Plug the cord into a standard 230V, three pins socket with ground pin .NOTE: To meet high grade electrical safety code, a ground-fault circuit interrupter (G.F.C.I.) need installed in inlet main power line.

  • Page 9: 1B.by Vacuum Drawn Injector

    CTO-10 & CTO-20 OZONE GENERATOR See Figure 2A * anti-water hangs up loop and check valve double needed. Figure 2A 2D-1B.By vacuum drawn injector: See Figure 2B * one or double check valve needed. Figure 2B 2D-1C.By centrifugal air blower: See Figure 2C.

  • Page 10: 2: Plumbing For Air Pump

    CTO-10 & CTO-20 OZONE GENERATOR Figure 2C 2D-2: Plumbing for air pump Use 8mm OD compress hose to connect both compress air inlet connector location on the left of ozone generator„s bottom and compress air outlet connector location on the left side of air pump‟s bracket .

  • Page 11: Section 3

    CTO-10 & CTO-20 OZONE GENERATOR SECTION 3 Operation 3A.General After mounting, plumbing wire and pipe please check again: 1.mounting 2.plumbing wire 3.plumbing pipe 4.and some necessary check. 3B. Normal Operation Switch on main power switch location on the control panel. Generator cooling fans will start up and the oxygen concentrator and extra air pump will begin operating.

  • Page 12: Section 4

    CTO-10 & CTO-20 OZONE GENERATOR SECTION 4 Maintenance and Service 4A.System Electro-Mechanical Overview Refer to Figure 4 for component locations. Figure 4 This figure is only show the inside of the CTO-10. CTO-20 has two ozone modules. 4A-1. Indicator Lights 1.

  • Page 13: Preventative Maintenance Schedule

    CTO-10 & CTO-20 OZONE GENERATOR oxygen module to produce ozone for output. Power supply: Power supply consists of a step down transformer, rectifier PCB and voltage regulator PCB. It reduces and regulates line AC voltage and rectifies to low DC voltage to supply drive module.

  • Page 14: Trouble Shooting

    CTO-10 & CTO-20 OZONE GENERATOR BIANNUALLY: 1. Rebuild air pump. 2. Rebuild CD module. All see appendix A&B section. 4C.Trouble Shooting An electrician who is trained by Bodycare Ozone Tech is required for trouble shooting. Contact a certified electrician if you are unsure of your ability to service the equipment. Improper servicing will void generator warranty.

  • Page 15: Section 5

    CTO-10 & CTO-20 OZONE GENERATOR 2. Adjustable valve location on flow meter is shut off, reopen if necessary, 3. PSA oxygen module failure, replace (rebuild) if necessary. See appendix “D” SECTION 5 Replacement Parts 5A. Standard replacement parts list: 1. OP-1 oil less air pump for CTO-10/20 AP-157 2.

  • Page 16: Oil Less Air Pump Assembly

    CTO-10 & CTO-20 OZONE GENERATOR Appendix: “A” OP-1 Oil less Air Pump Assembly...

  • Page 17: Cd Ozone Module

    CTO-10 & CTO-20 OZONE GENERATOR Appendix: “B” CD Ozone Module...

  • Page 18: Psa Oxygen Module

    CTO-10 & CTO-20 OZONE GENERATOR Appendix: “C” PSA Oxygen Module Appendix: “D” Ozone Power Supply Module...
  • Page 20 CTO-10 & CTO-20 OZONE GENERATOR Appendix: “E-1”...
  • Page 21 CTO-10 & CTO-20 OZONE GENERATOR Appendix: “E-2”...
